1.8GHz to 2.0GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna with Spring design N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.8-2.0 GHz High-End Manpack Antenna (Spring Base)
GSM/LTE Band 3 | 5dBi Gain | 120W Power | IP67 & MIL-STD-810G

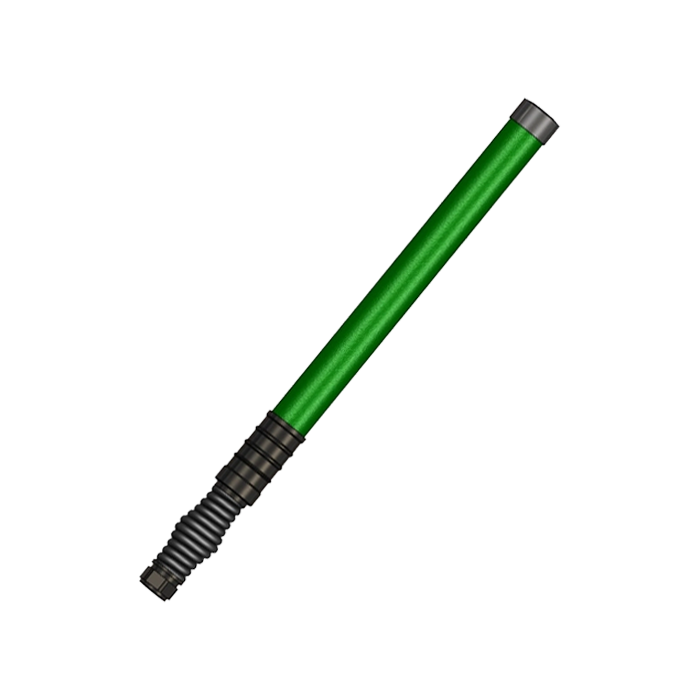

[Image of ME-1820G05AS-NM Manpack Antenna]
The ME-1820G05AS-NM is a high-power Manpack Antenna designed for the 1.8 GHz to 2.0 GHz band, covering critical frequencies for GSM, LTE Band 3, and military tactical radios. It features a wide 52° vertical beamwidth for enhanced connectivity in difficult terrain. Built with a robust Spring-Loaded Base, it absorbs mechanical shock during field operations. With a length of 397.2mm, it supports an impressive 120 Watts (CW) power handling. This antenna is engineered for extreme durability, rated IP67 waterproof, MIL-STD-810G compliant, and operational up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | ME-1820G05AS-NM |
| Frequency Range | 1.8 - 2.0 GHz (L/S-Band) |
| Gain | 5 dBi |

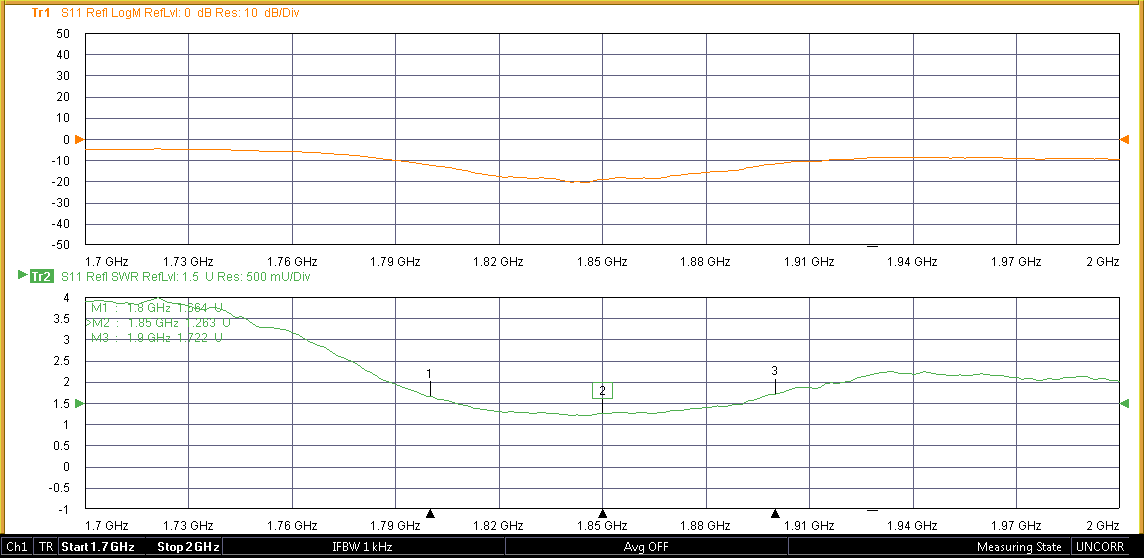

| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 120 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 52° (Wide Vertical Coverage) |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L397.2 mm |
| Weight | 0.50 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G, RoHS |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
GSM & LTE Band 3
Optimized for 1.8-2.0 GHz, supporting standard mobile communications and tactical radio links in this common band.
Wide Vertical Beam (52°)
The 52-degree vertical beamwidth ensures reliable signal connection even when the transmitter and receiver are at different elevations.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
120W High Power
Exceptional 120W Continuous Wave power handling, making it suitable for high-power signal defense or long-range base station use.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
