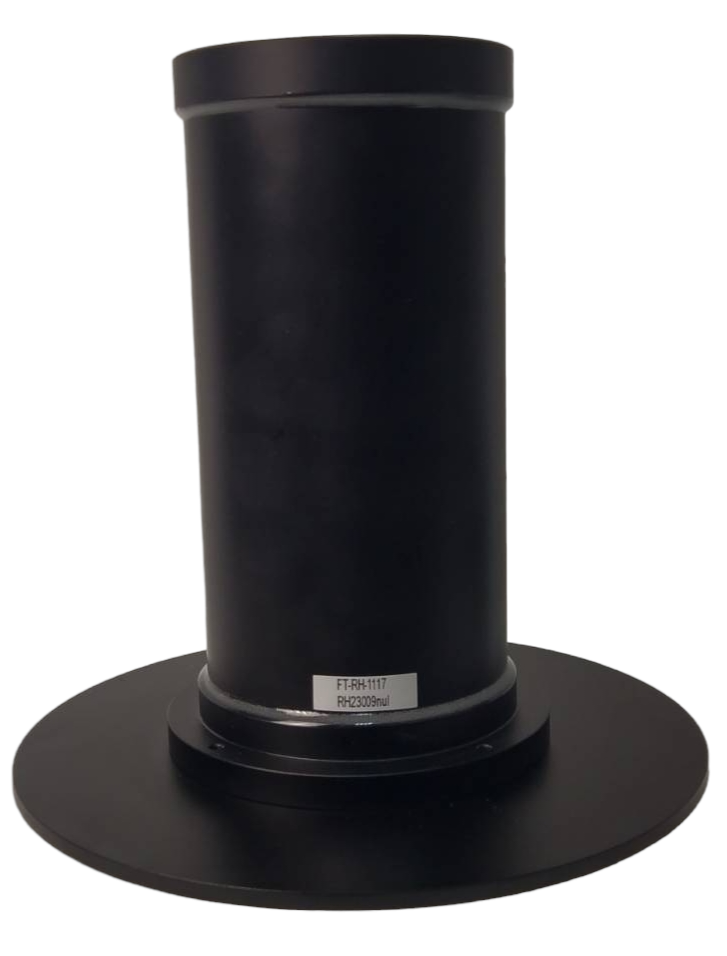

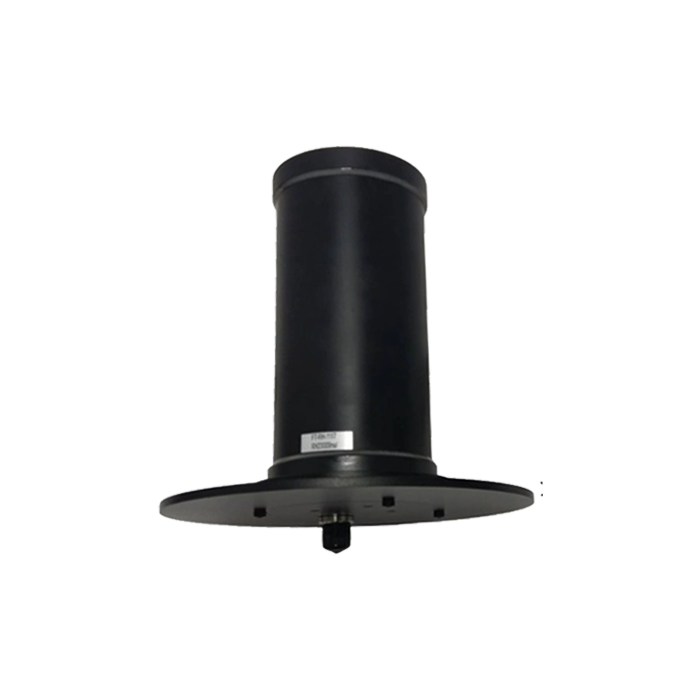

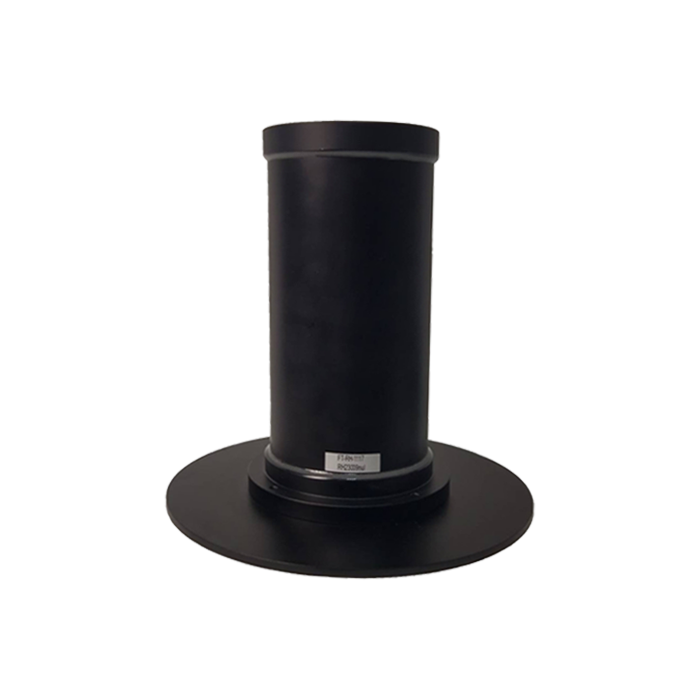

1100MHz to 1700MHz 11dBi Gain Circular Polarized RHCP Helical Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
1.1-1.7 GHz L-Band RHCP Antenna
11 dBi High Gain | Circular Polarization | Satcom & GNSS Station Ready
Engineered for critical L-Band applications, this High-Gain Colinear Antenna offers superior performance for Satellite Communications and GNSS (GPS/GLONASS/Galileo/BeiDou) timing stations. It features Right Hand Circular Polarization (RHCP), which significantly reduces signal degradation caused by atmospheric conditions and multipath interference, ensuring reliable link connectivity for professional ground stations.
Technical Specifications
Electrical Performance
| Frequency Range | 1.1 GHz to 1.7 GHz (L-Band) |
| Gain | 11 dBi |
| Polarization | RHCP (Right Hand Circular) |
| V.S.W.R | ≤ 2.5 : 1 (Max) |
Mechanical & Environmental

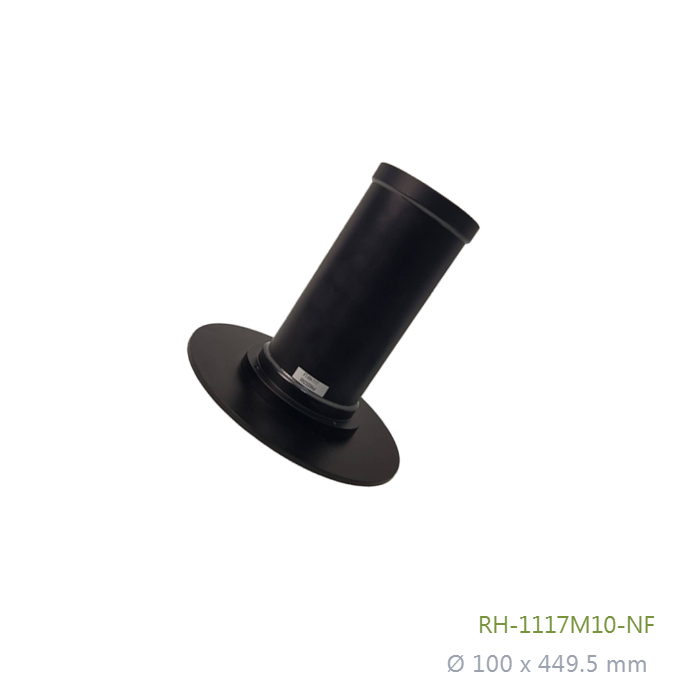

| Dimensions | Length: 449.5 mm | Diameter: 100 mm |
| Radome Material | Durable Fiberglass |
| Operating Temperature | -30°C to +120°C |

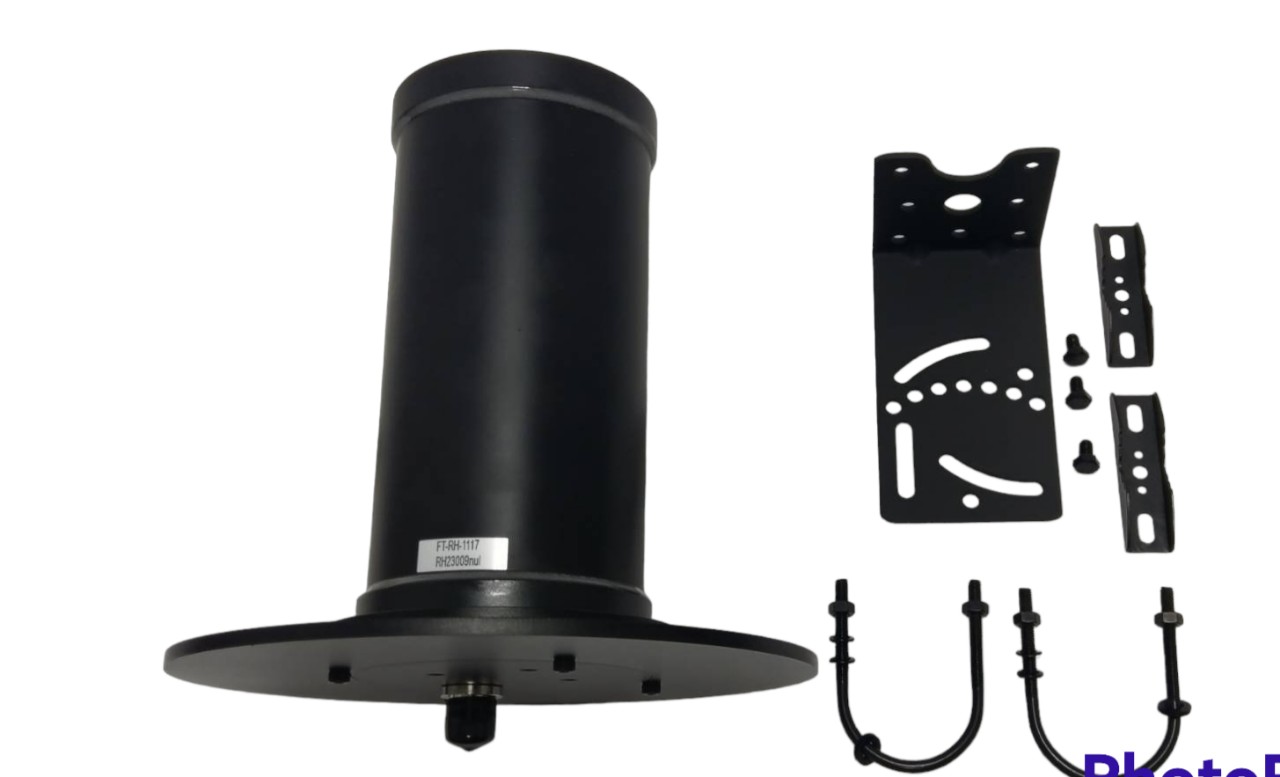

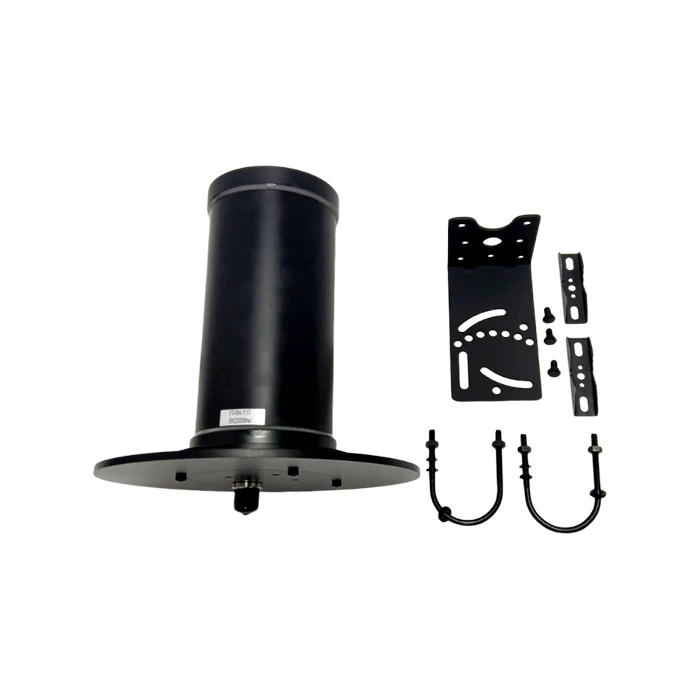

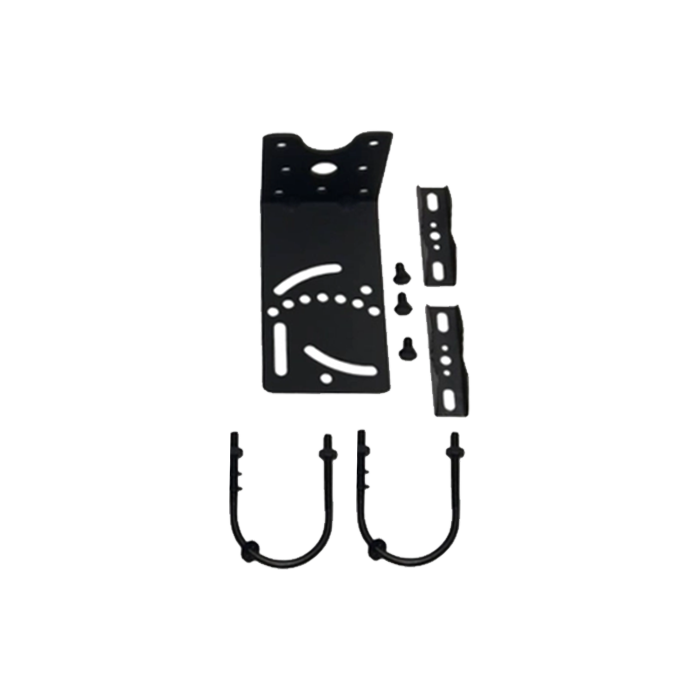

| Mounting Access. | T3 Screw Packages Included |
Professional Features
RHCP Polarization
Mitigates Faraday rotation and multipath interference, essential for stable Satellite and GNSS signal reception.
11 dBi High Gain
Delivers exceptional signal sensitivity, ideal for ground stations receiving weak satellite signals.
L-Band Wide Coverage
Supports GPS, GLONASS, Galileo, BeiDou, and various mobile satellite services in a single unit.
Extreme Environment
Fiberglass radome and aluminum base survive temperature shifts from -30°C up to +120°C.
Get a Quote / Customization
Contact us for professional mounting kits or low-noise amplifier (LNA) integration.
