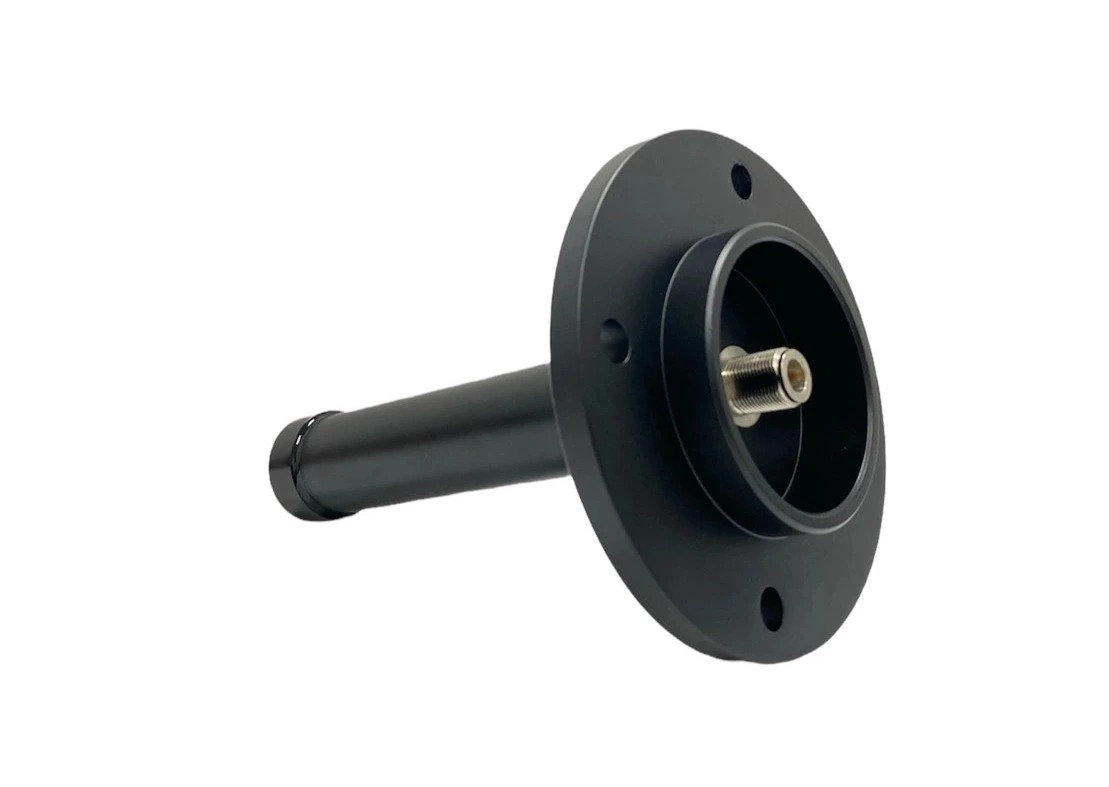

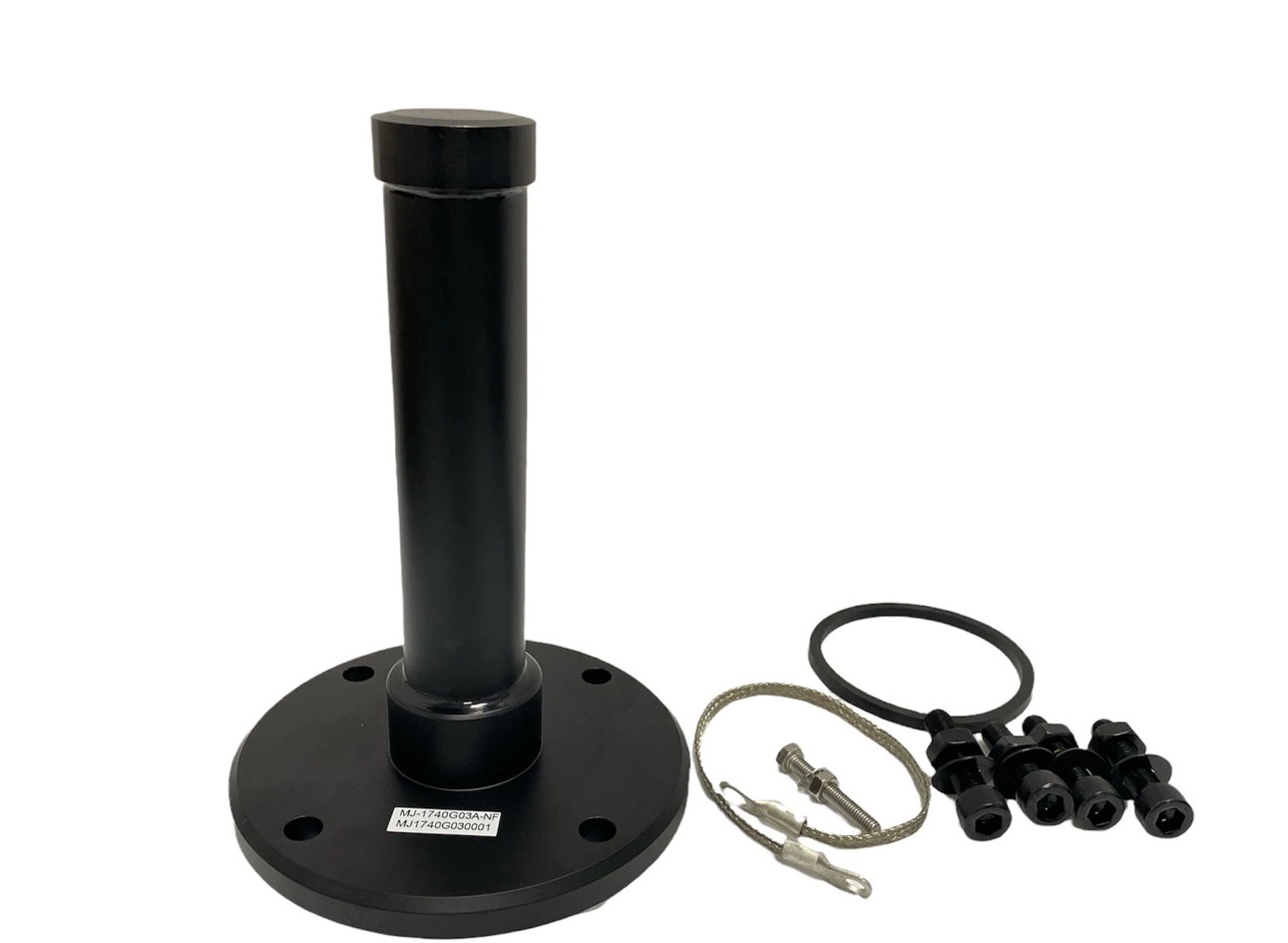

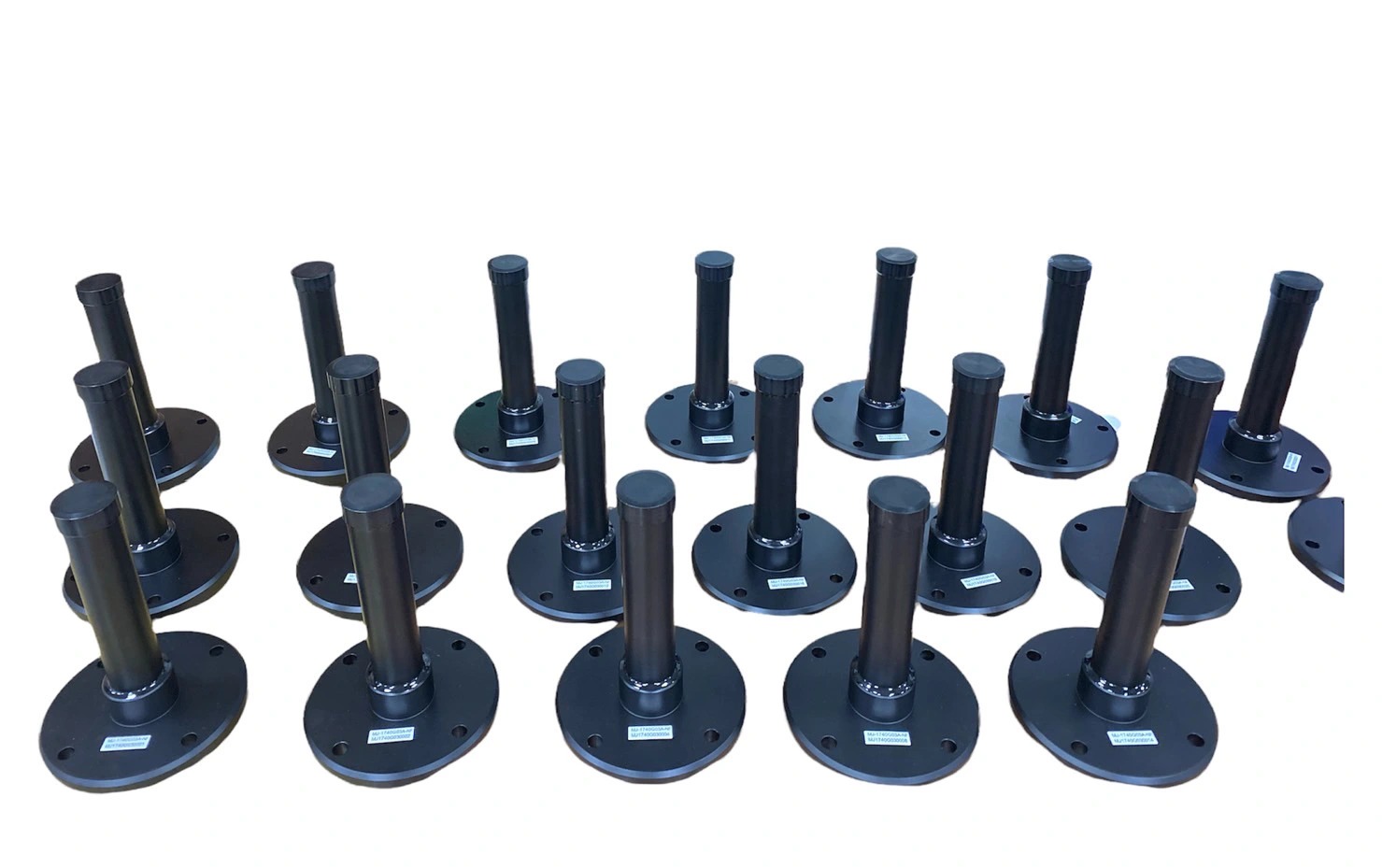

1700MHz to 4000MHz 3dbi Vehicle Omnidirectional WiFi/ 4G/ 3G/ 5G Jamming Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
-
Video
Application:
- 1700MHz to 4000MHz 3dbi Vehicle Omnidirectional Jammer Antenna N-Female
- Center frequency:2500MHz
- Gain: 3dbi
- Vehicle Omnidirectional Jammer
- WiFi /4G / 3G /5G antenna
Feature:
- Superior performance
- Lightweight
- Good appearance design
- RoHS Compliant
|
Frequency Range |
1700 to 4000MHz |
|
V.S.W.R |
<=2.0 (1690 - 2810 MHz) <=3.0 (1600~4000 MHz, 4210~4700, 5100~6000) |
|
Antenna Type |
Collinear |
|
Radiation |
Omnidirectional |
|
Gain (peak) |
3 dBi |
|
Polarization |
Vertical |
|
Maximum Power |
200 Watts |
|
Vertical Beamwidth (AVG) |
46 deg |
|
Horizontal Beamwidth (AVG) |
360 deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dipole array |
|
Connector |
N-Female |
|
Size |
140xL209mm |
|
Weight |
1.1 kg |
|
Application |
Outdoor/ Indoor |
|
Radome Material |
White Fiberglass |
|
Mount Style |
Vehicle mount |
|
Parts Material |
Aluminum |
|
Mounting |
Stainless Steel and Aluminum |
|
Temperature: |
-40 to +120 degrees |
|
Humidity |
95% |
|
Waterproof |
IP67 |
|
Compliant with MIL |
810G |
|
Vibration test |
5.0G |
|
Salt spray test |
96HR |
|
Color |
black and green |
|
Safety, Emission, and other |
CE, FCC, RoHS, WEEE |
