1700MHz to 4000MHz 3dbi Vehicular Omnidirectional WiFi/ 4G/ 3G/ 5G Antenna, MJ-1740G03A-NF
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

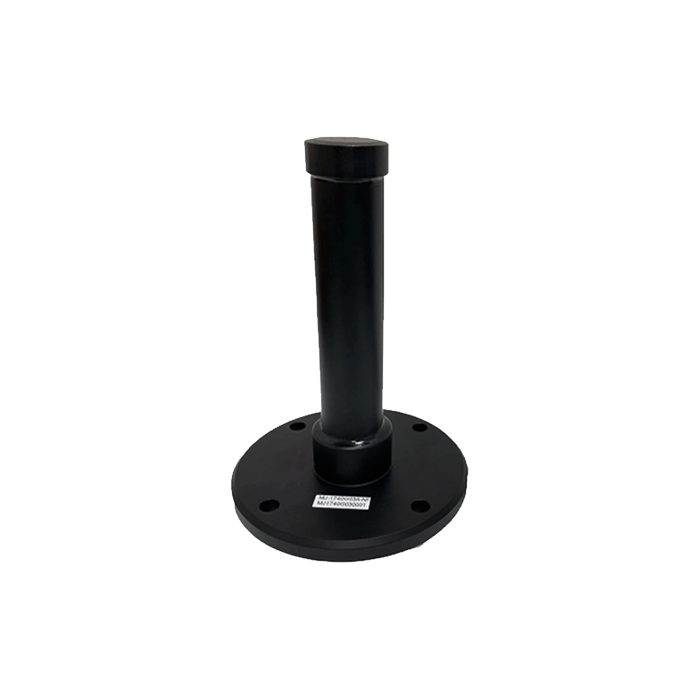

1.7-4.0 GHz Vehicular Omnidirectional Antenna
Model: MJ-1740G03A-NF | 200W High Power | Aerodynamic Design
The MJ-1740G03A-NF is an advanced vehicular antenna designed for mission-critical applications across the 1700 MHz to 4000 MHz spectrum. This wideband capability supports multiple standards including 4G LTE, 3G, WiFi, and 5G Sub-6GHz bands. Built for high-power operations, it handles up to 200 Watts (CW), making it suitable for Signal Defense and tactical communications. Its aerodynamic fiberglass radome minimizes wind drag on moving vehicles while ensuring extreme durability.
Technical Specifications
Electrical Performance
| Frequency Range | 1700 MHz to 4000 MHz |
| Center Frequency | 2500 MHz |
| Maximum Power | 200 Watts (Continuous Wave) |
| Gain (Peak) | 3 dBi |
| V.S.W.R | ≤ 2.0 (1.69-2.81 GHz) / ≤ 3.0 (Full Band) |
| Beamwidth | H: 360° / V: 46° (Avg) |

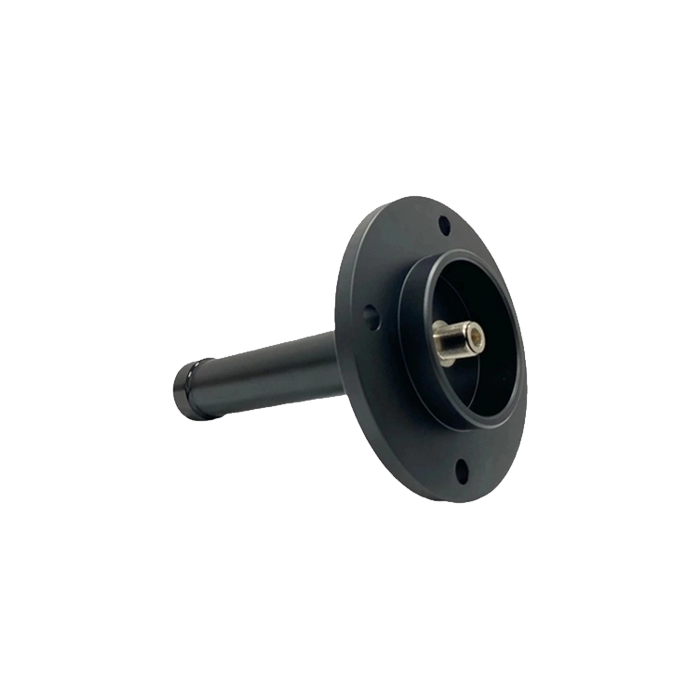

| Connector | N-Female |
Mechanical & Environmental

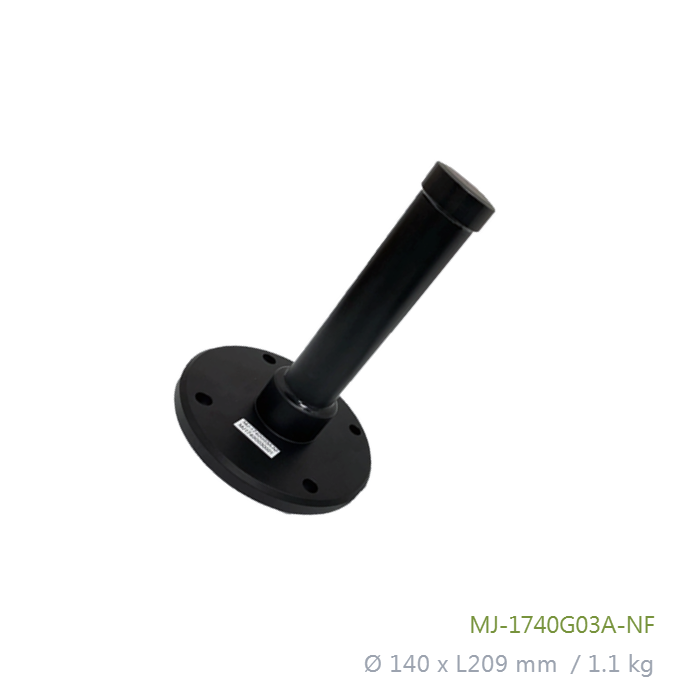

| Dimensions | Ø 140 x 209 mm |
| Net Weight | 1.1 kg |
| Waterproof Rating | IP67 Sealed Housing |
| Compliance | MIL-STD-810G, CE, FCC, RoHS |
| Temperature Range | -40°C to +120°C |
| Radome Material | Ruggedized Fiberglass |
Key Operational Features
1.7-4.0 GHz Wideband
One antenna covers S-Band, LTE, 5G, and WiFi, reducing vehicle roof clutter and ensuring consistent Signal Integrity across bands.
200W High Power
Engineered for high-energy transmission, perfect for Signal Defense systems and long-range high-throughput Tactical Use.
Aerodynamic Design
Low-profile shape reduces wind noise and drag, ideal for high-speed law enforcement or military vehicle Protection Operations.
MIL-STD-810G Certified
Tested for vibration and shock, ensuring mission-critical Signal Security even in the most demanding off-road conditions.
Get a Quote / Customization

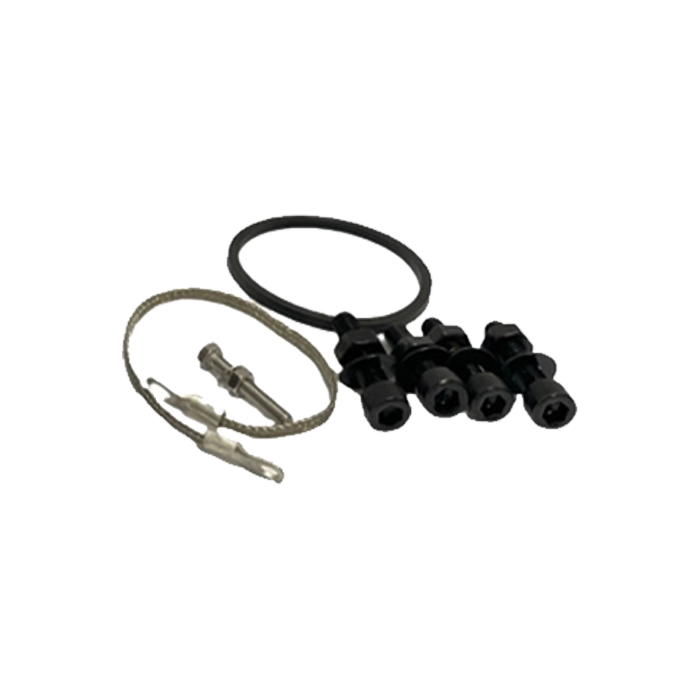

Contact us for vehicle mounting kits, magnetic bases, or custom color options for your tactical platform.
