1GHz to 2GHz 10dbi Left polarization Broadband Horn Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

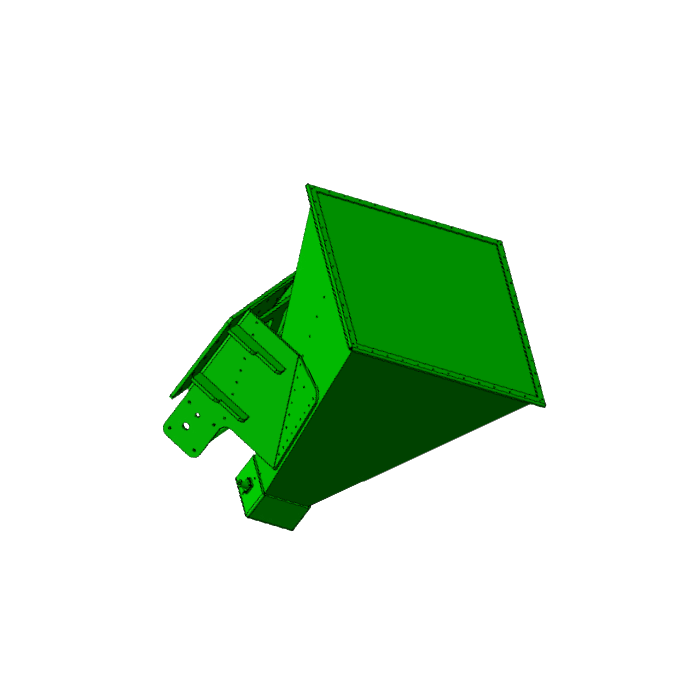

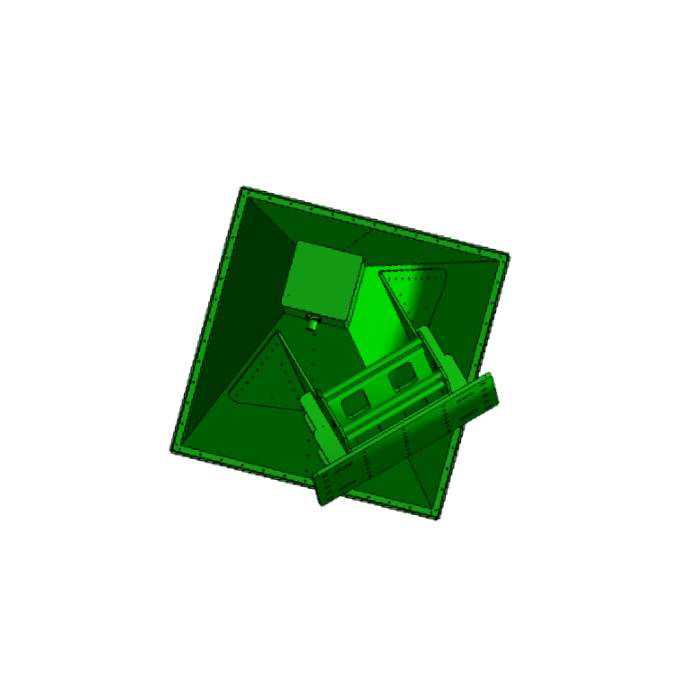

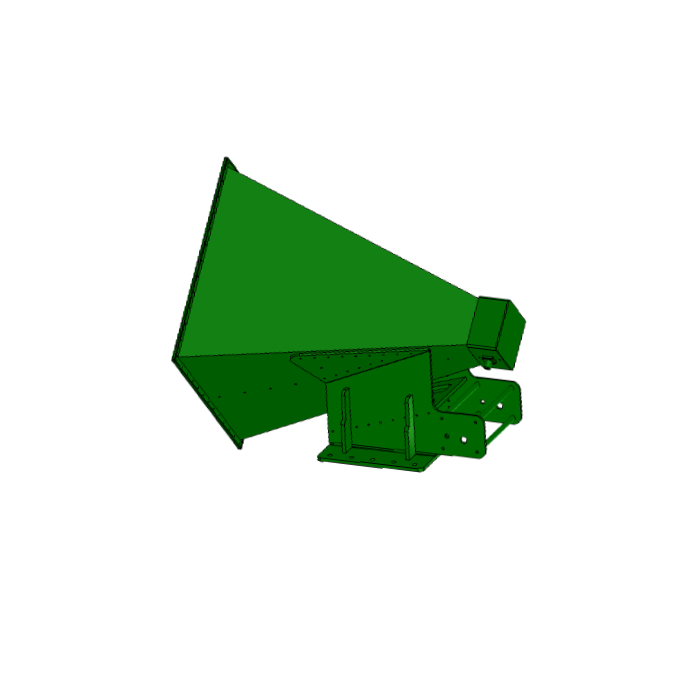

1-2 GHz High Gain Horn Antenna (LHCP)
Model: HL-0102G10-01-NF | 10dBi Gain | 300W CW Power | L-Band
The HL-0102G10-01-NF is a high-performance Horn Antenna designed for the 1 GHz to 2 GHz (L-Band) frequency range. Featuring Left-Hand Circular Polarization (LHCP) and a gain of 10 dBi, it is engineered for critical applications such as GNSS testing, long-range surveillance radar, and mobile communications. With a robust design capable of handling 300 Watts of Continuous Wave (CW) power, it ensures absolute Signal Integrity for high-power transmission tasks.
Technical Specifications
Electrical Performance
| Frequency Range | 1 GHz to 2 GHz (L-Band) |
| Gain | 10 dBi (Precision Directivity) |
| Polarization | Left Polarization (LHCP) |
| Max Power (C.W) | 300 Watts (Continuous Wave) |
| Connector | N-Female |
Mechanical & Physical

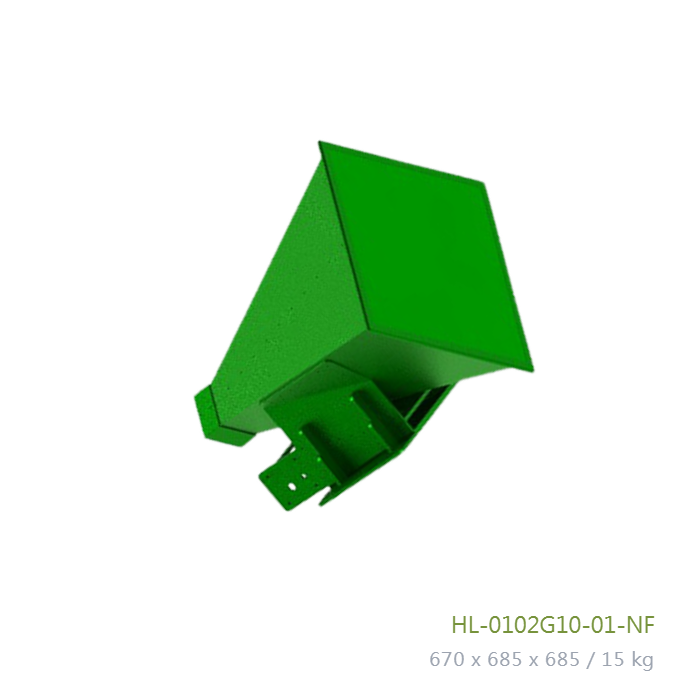

| Model Number | HL-0102G10-01-NF |
| Dimensions (LxWxH) | 670 x 685 x 685 mm |
| Net Weight | 15 Kg (High-Stability Build) |
| Antenna Type | Broadband Horn Antenna |
| Construction | Large Aperture for Low Frequency Efficiency |
Key Tactical Features
L-Band Coverage 1-2 GHz
Ideal for operations in the L-band, covering major satellite navigation systems and professional Signal Management requirements.
300W CW High Power
Built to endure 300 Watts of continuous power, making it suitable for Electronic Protection simulation and high-power testing.
Left-Hand Polarization (LHCP)
Features specific circular polarization essential for diversity and secure Signal Security in specific satellite communication protocols.
Robust Large Aperture
The 68cm large physical aperture ensures effective gain and stable Signal Integrity even at lower L-band frequencies.
Get a Quote / Customization
Contact us for custom connectors or ruggedized mounting options for your precision L-band measurement tasks.
