2.0GHz to 2.2GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

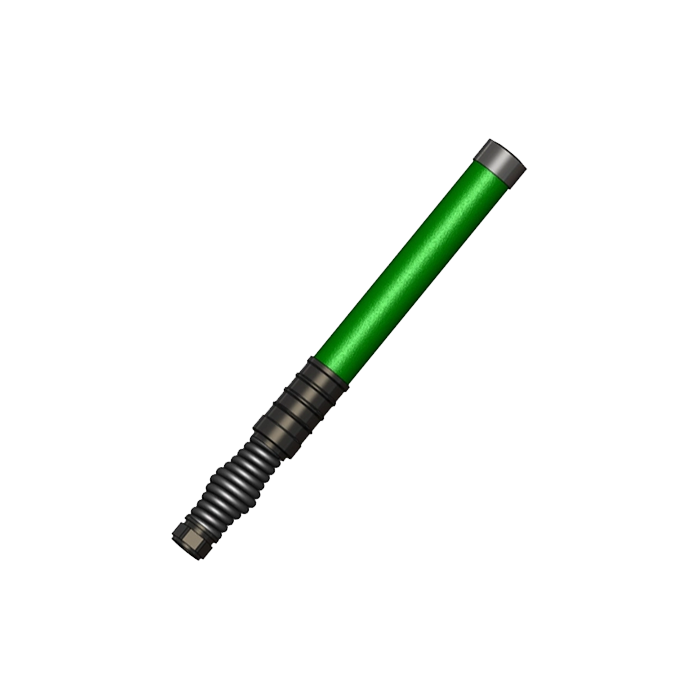

2.0-2.2 GHz High-End Manpack Antenna (Spring Base)
S-Band Video/Data | 5dBi Gain | 100W Power | IP67 & MIL-STD-810G
The ME-2022G05AS-NM is a rugged Manpack Antenna optimized for the 2.0 GHz to 2.2 GHz S-Band, commonly used for tactical video links (COFDM), telemetry, and mobile satellite services. It features a wide 58° vertical beamwidth, ensuring reliable connectivity with UAVs or targets at varying elevations. Built with a Spring-Loaded Base for shock absorption, it measures 355.2mm in length and handles high power input up to 100 Watts (CW). Designed for the harshest field conditions, it is IP67 waterproof, MIL-STD-810G compliant, and operates in temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Model Number | ME-2022G05AS-NM |
| Frequency Range | 2.0 - 2.2 GHz (S-Band) |
| Gain | 5 dBi |

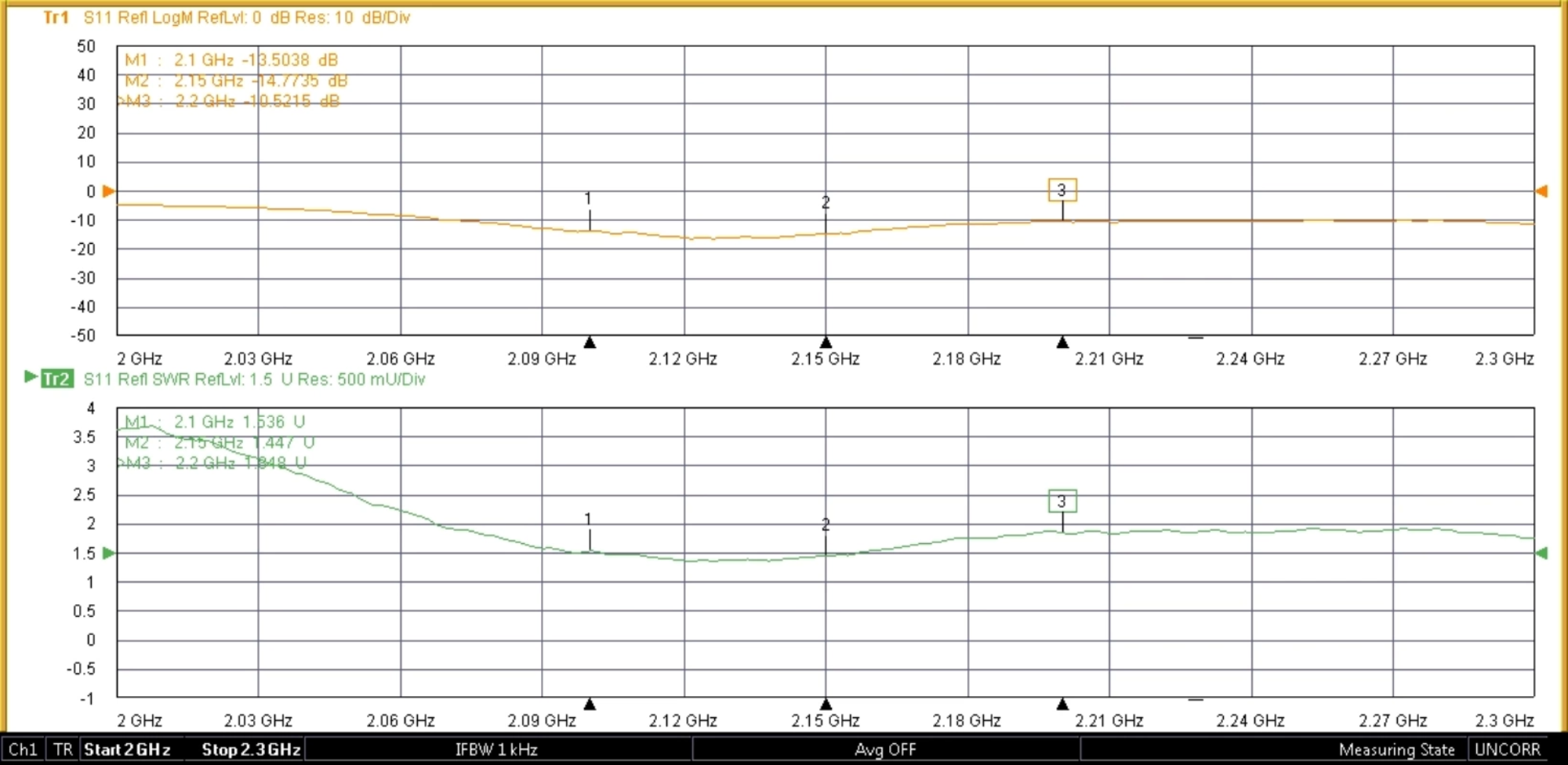

| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 100 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 58° (Wide Vertical Coverage) |
| Connector | N-Male |
Mechanical & Environmental Specifications

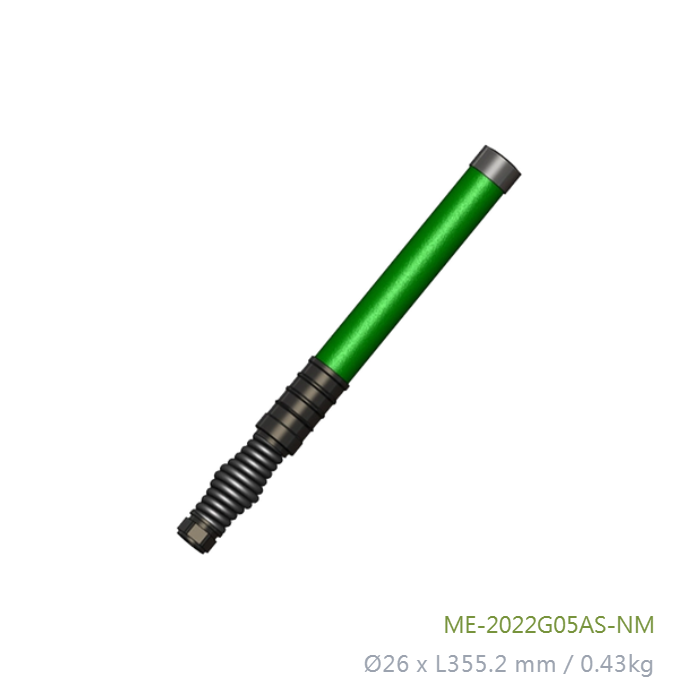

| Dimensions | Ø26 x L355.2 mm |
| Weight | 0.43 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
S-Band Video & Data
Optimized for 2.0-2.2 GHz, typically used for secure tactical video transmission, telemetry, and government data links.
Wide Vertical Beam (58°)
The 58-degree vertical beamwidth provides excellent coverage for communication with airborne assets like drones (UAVs).
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
100W High Power
Capable of handling 100W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
