2.0GHz to 3.2GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

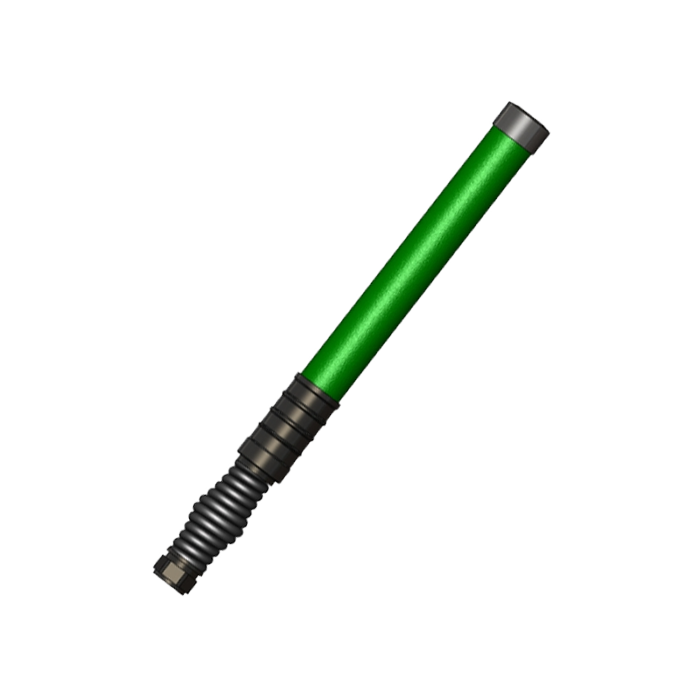

3.0 - 3.2 GHz High-Gain Tactical Manpack Antenna
Model: ME-3032G05A-NM | 5dBi Gain | 70W CW | MIL-STD-810G
The ME-3032G05A-NM is a high-performance Tactical Manpack Antenna specifically engineered for high-frequency operations within the 3.0 GHz to 3.2 GHz S-Band spectrum. Delivering a robust 5 dBi gain with a concentrated vertical radiation pattern, this antenna is optimized for long-range tactical data links and mobile command assets. Built with an integrated spring base and rated at IP67, it ensures mission-critical link stability under the most extreme battlefield maneuvers.
Technical Specifications
Electrical Performance
| Frequency Range | 3.0 GHz - 3.2 GHz (S-Band) |
| Gain | 5 dBi (High-Efficiency Radiator) |
| Maximum Power | 70 Watts (Continuous Wave) |
| Vertical Beamwidth | 28° (Concentrated Signal Path) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| V.S.W.R | ≤ 2.5 : 1 |
Mechanical & Environmental

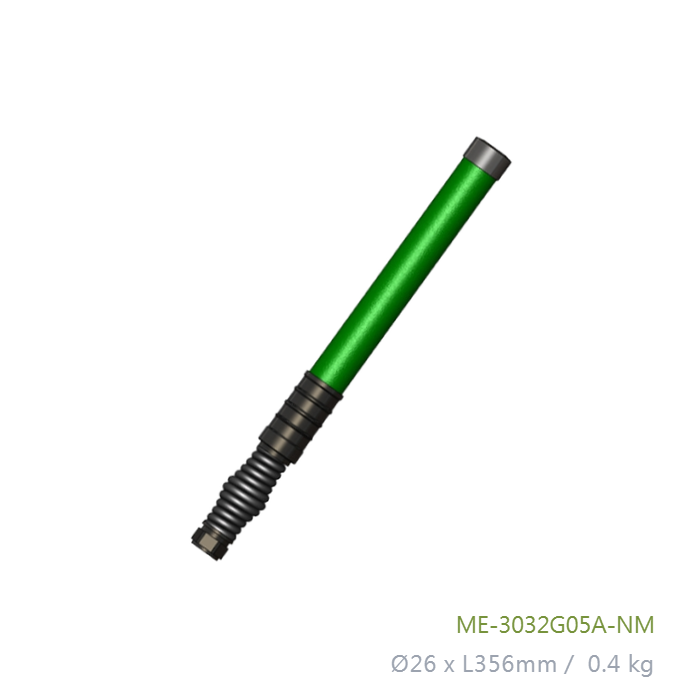

| Dimensions | Ø26 x L356 mm |
| Antenna Weight | 0.4 kg |
| Compliance | MIL-STD-810G / IP67 Rated |
| Vibration Resistance | 5.0G Tested |
| Temperature Range | -40°C to +120°C |
Key Tactical Features
High-Gain S-Band Performance
The 5dBi gain focuses energy toward the horizon (28° V-plane), significantly extending the operational reach for S-band tactical networks and data links.
Tactical Spring Buffer
Equipped with a flexible spring base that absorbs mechanical shocks and bends upon impact, preventing torque-induced damage to the radio's RF interface during maneuvers.
70W Power Capacity
Engineered to handle the substantial thermal loads of 70W continuous transmission, ensuring reliable performance and stable Signal Security.
Proven Battlefield Durability
Constructed with reinforced tactical materials to survive extreme vibration, corrosive salt environments (96HR), and total submersion in water.
Get a Quote / Customization
Contact us for custom length variations or specialized thread adaptations for tactical handheld systems.
