2.6GHz to 2.8GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

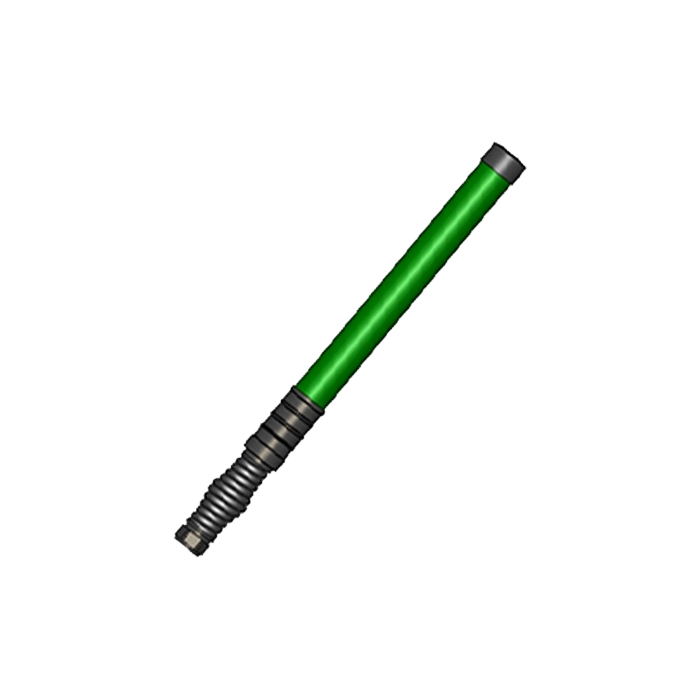

2.6-2.8 GHz High-End Manpack Antenna (Spring Base)
S-Band | 5dBi Gain | 100W Power | IP67 & MIL-STD-810G
The ME-2628G05-NM is a high-end, omnidirectional Manpack Antenna operating in the 2.6 GHz to 2.8 GHz S-Band. Engineered for rugged tactical use, it features a Spring-Loaded Base to absorb shocks and prevent damage during movement. Despite its compact size (326mm), it delivers a robust 5 dBi gain and handles up to 100 Watts (CW) of power. It is built to extreme standards, fully compliant with MIL-STD-810G, IP67 waterproof ratings, and capable of operating in temperatures up to +120°C, making it ideal for harsh desert or industrial environments.
Technical Specifications
Electrical Specifications
| Frequency Range | 2.6 - 2.8 GHz (S-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 100 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Model Number | ME-2628G05-NM |

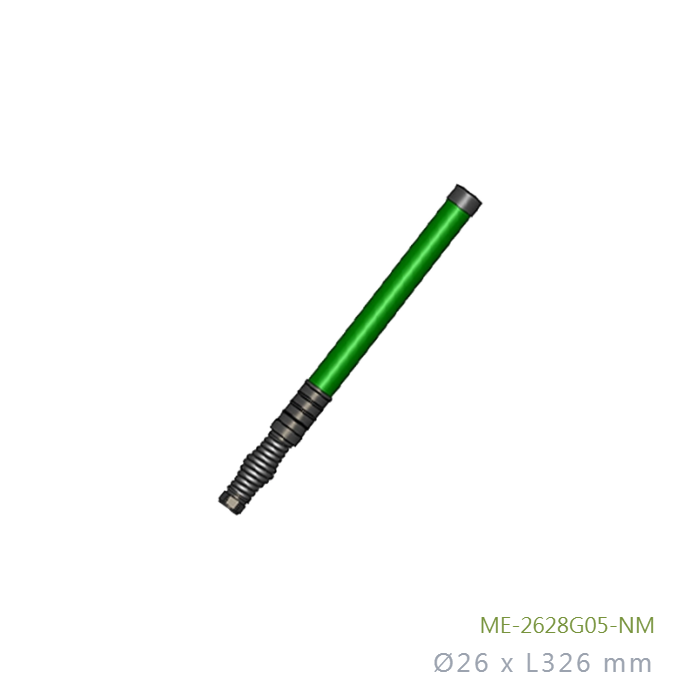

| Dimensions | Ø26 x L326 mm |
| Weight | 0.41 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, surpassing standard military requirements for desert or machinery operations.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
100W High Power
Capable of handling 100W Continuous Wave power, suitable for high-power data links, video transmission, or electronic protection.
High Gain S-Band
Provides 5 dBi gain in the 2.6-2.8 GHz band, optimizing range for specialized LTE bands or tactical data links.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
