200MHz to 500MHz 3dbi Vehicular and Base Omnidirectional Antenna, MJ-02M05G03A-NF
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

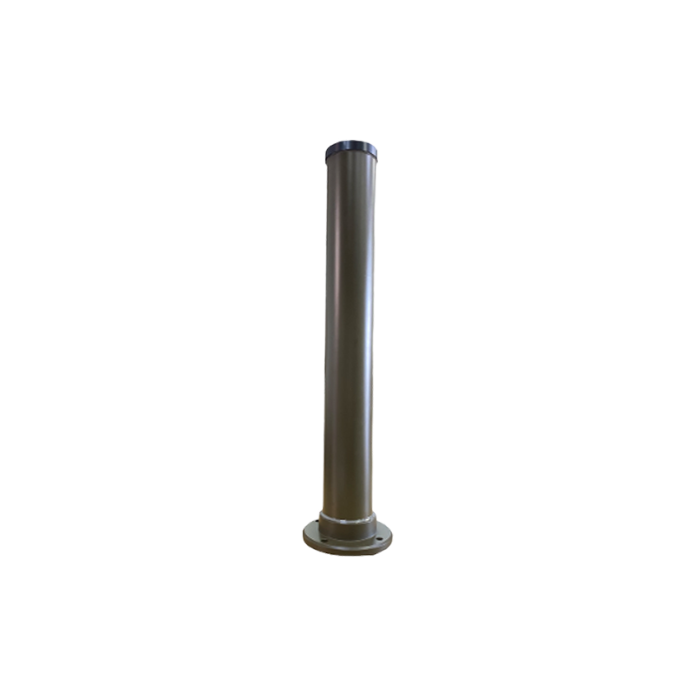

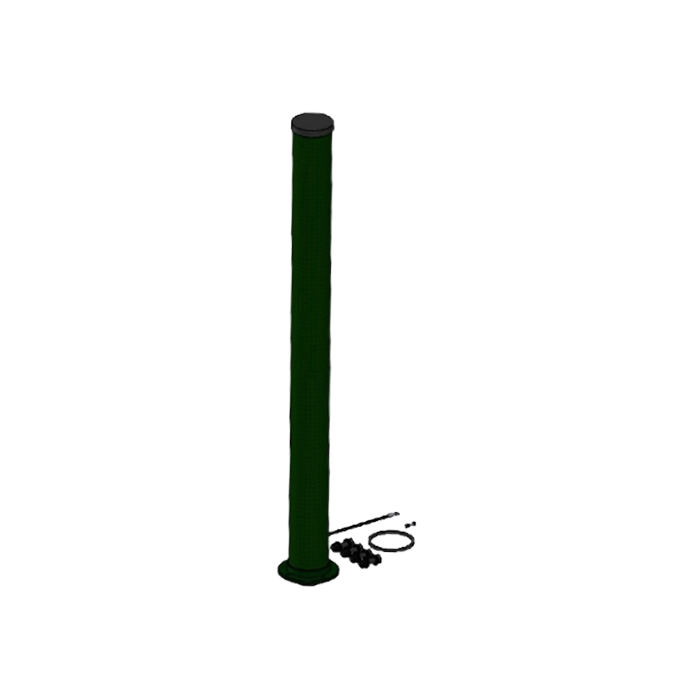

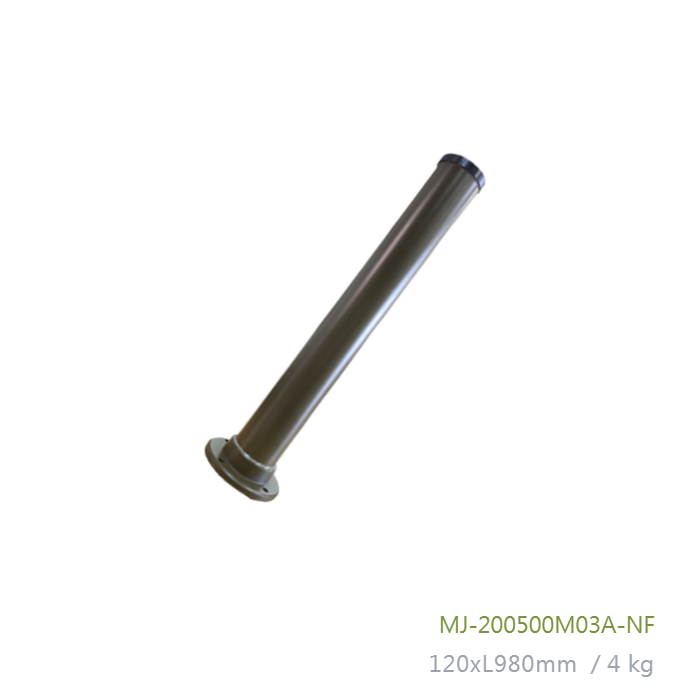

200-500 MHz Wideband Vehicular & Base Antenna
Model: MJ-02M05G03A-NF | 200W High Power | VHF/UHF Wideband
The MJ-02M05G03A-NF is an advanced, high-end Wideband Omnidirectional Antenna engineered for both vehicular and fixed base station applications. Operating across the broad 200 MHz to 500 MHz spectrum, it covers critical VHF and UHF bands used in tactical communications. Capable of handling 200 Watts (CW), it is an ideal solution for high-power Signal Management systems requiring unwavering Signal Integrity in harsh environments.
Technical Specifications
Electrical Performance
| Frequency Range | 200 MHz to 500 MHz |
| Maximum Power | 200 Watts (Continuous Wave) |
| Gain (Peak) | 3 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Input Impedance | 50 Ohms |
| Polarization | Vertical |
| Connector | N-Female |
Mechanical & Environmental
| Radome Material | Ruggedized Fiberglass |
| Waterproof Rating | IP67 Sealed Housing |
| Operating Temperature | -40°C to +120°C |
| Mount Style | Vehicle Roof / Base Station Mast |
| Compliance | RoHS, CE, FCC |
| Color Options | Tactical Black / Green / White |
Key Tactical Features
200-500 MHz Wideband
Offers seamless coverage across upper VHF and lower UHF bands, ideal for multi-band tactical radios and professional Signal Management.
200W High Power
Engineered for high-duty cycle operations, capable of handling 200W continuous power for Signal Security and long-range comms.
Dual Mounting Versatility
Versatile design allows for installation on vehicle roofs for mobility or base station masts for fixed-site Tactical Use.
Rugged IP67 Build
Encased in a durable fiberglass radome, it is fully waterproof and tested to perform in extreme temperatures for reliable Signal Defense.
Get a Quote / Customization
Contact us for custom color options (Black/Green/White) or specialized mounting kits for your radio infrastructure.
