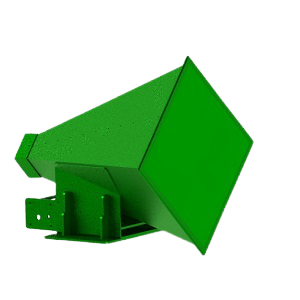

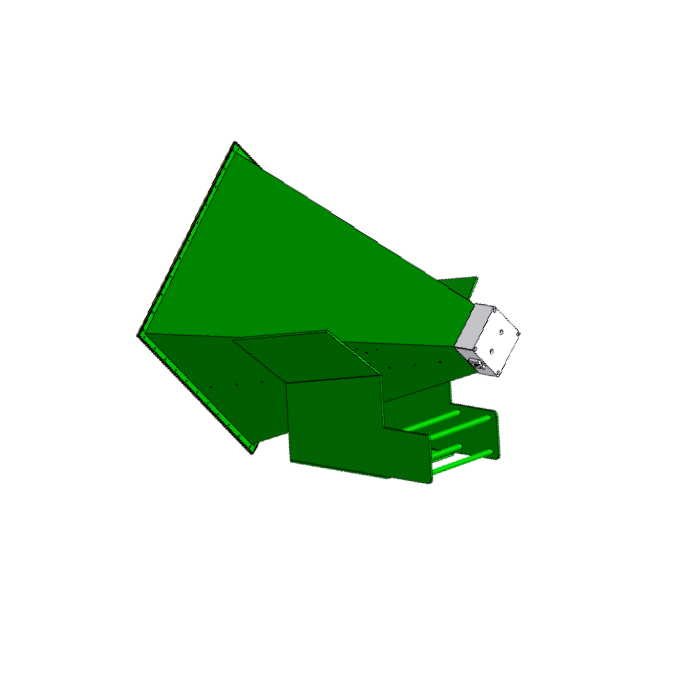

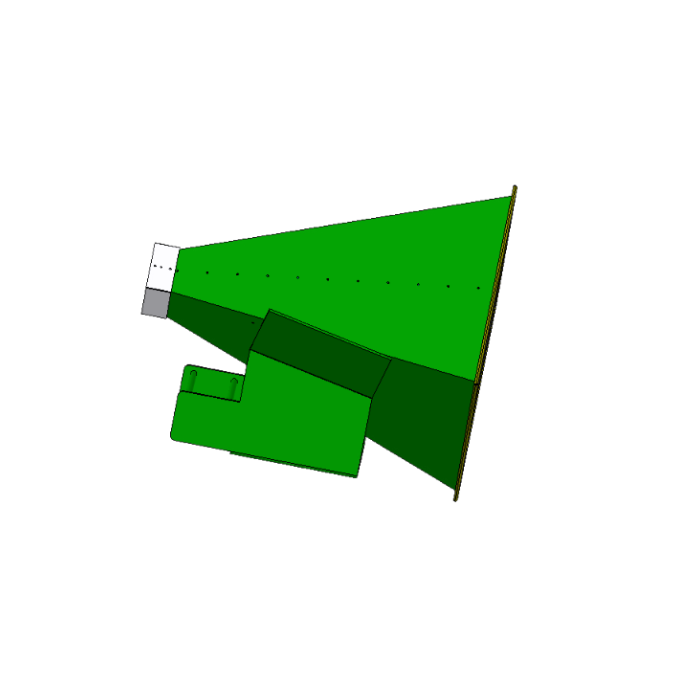

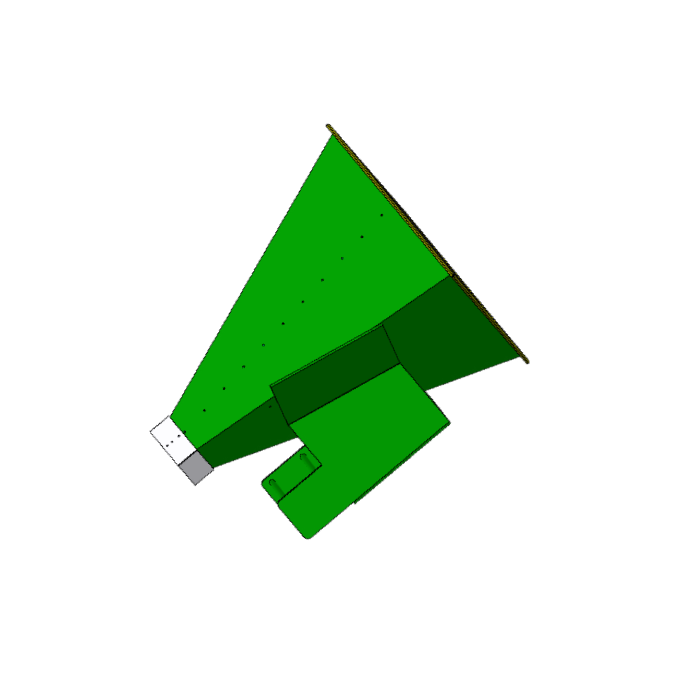

2GHz to 8GHz 16dbi Left polarization Broadband Horn Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
2-8 GHz High Gain Horn Antenna (LHCP)
Model: HL-0208G16-01-NF | 16dBi Gain | 300W CW Power | S & C Band
The HL-0208G16-01-NF is a robust, high-power Horn Antenna designed for operation across the 2 GHz to 8 GHz spectrum (S-Band and C-Band). Featuring Left-Hand Circular Polarization (LHCP) and a substantial gain of 16 dBi, it is optimized for specialized radar, Signal Management, and satellite communication tasks. Its heavy-duty construction allows it to handle 300 Watts of Continuous Wave (CW) power, ensuring absolute Signal Integrity in high-energy applications.
Technical Specifications
Electrical Performance
| Frequency Range | 2 GHz to 8 GHz (S / C Band) |
| Gain | 16 dBi (High Sensitivity Performance) |
| Polarization | Left Polarization (LHCP) |
| Max Power (C.W) | 300 Watts (Continuous Wave) |
| Connector | N-Female |
Mechanical & Physical

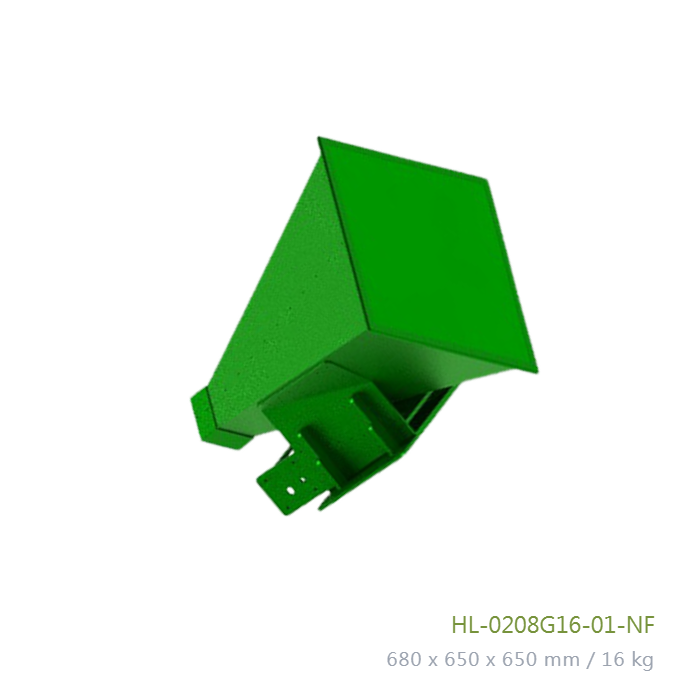

| Model Number | HL-0208G16-01-NF |
| Dimensions (LxWxH) | 680 x 650 x 650 mm |
| Net Weight | 16 Kg (Heavy Duty Build) |
| Antenna Type | High-Power Horn Antenna |
| Construction | Large Aperture for Maximum Directivity |
Key Tactical Features
Broadband 2-8 GHz Coverage
Covers both S-band and C-band frequencies, making it versatile for weather radar, surveillance, and professional Signal Management.
300W CW High Power
Rated for 300 Watts Continuous Wave power, this antenna can sustain high-energy transmission without compromise to Signal Integrity.
Left-Hand Polarization (LHCP)
Designed for circular polarization diversity and satellite links, ensuring advanced Signal Security in complex microwave environments.
High Gain & Directionality
The large physical aperture provides excellent directional gain, essential for Tactical Use and enhancing long-range signal clarity.
Get a Quote / Customization
Contact us for custom mounting solutions or high-power testing data tailored to your specific system requirements.
