3.2GHz to 3.4GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
3.2-3.4 GHz High-End Manpack Antenna (Spring Base)
S-Band | 5dBi Gain | 70W Power | IP67 & MIL-STD-810G

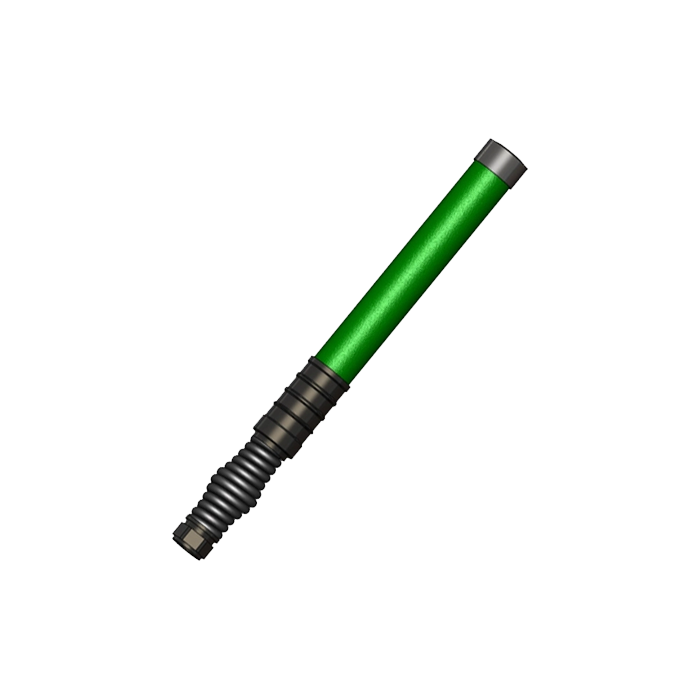

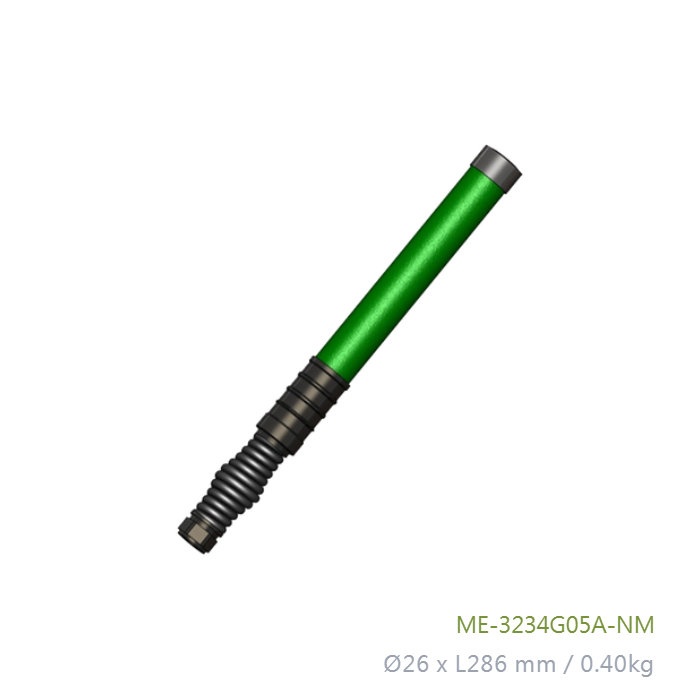

[Image of Manpack Antenna with Spring Base]
The ME-3234G05-NM is a high-performance Manpack Antenna operating in the 3.2 GHz to 3.4 GHz S-Band. Designed for rugged tactical environments, it features a Spring-Loaded Base to absorb shocks and prevent damage during movement. With a compact length of 286mm, it delivers a robust 5 dBi gain and handles up to 70 Watts (CW). It is fully compliant with MIL-STD-810G, IP67 waterproof, and capable of operating in temperatures up to +120°C, making it ideal for specialized radar, amateur radio, and data link applications.
Technical Specifications
Electrical Specifications
| Frequency Range | 3.2 - 3.4 GHz (S-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 70 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L286 mm |
| Weight | 0.40 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
S-Band Optimized
Specifically tuned for the 3.2-3.4 GHz band, ensuring maximum efficiency for radar, amateur radio, and specialized comms.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
70W High Power
Capable of handling 70W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
