3.4GHz to 3.6GHz 5dbi Omnidirectional Handheld and Manpack Continuous-High-Power antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
3.2-3.6 GHz High-End Manpack Antenna (Spring Base)
CBRS/WiMAX | 5dBi Gain | 70W Power | IP67 & MIL-STD-810G

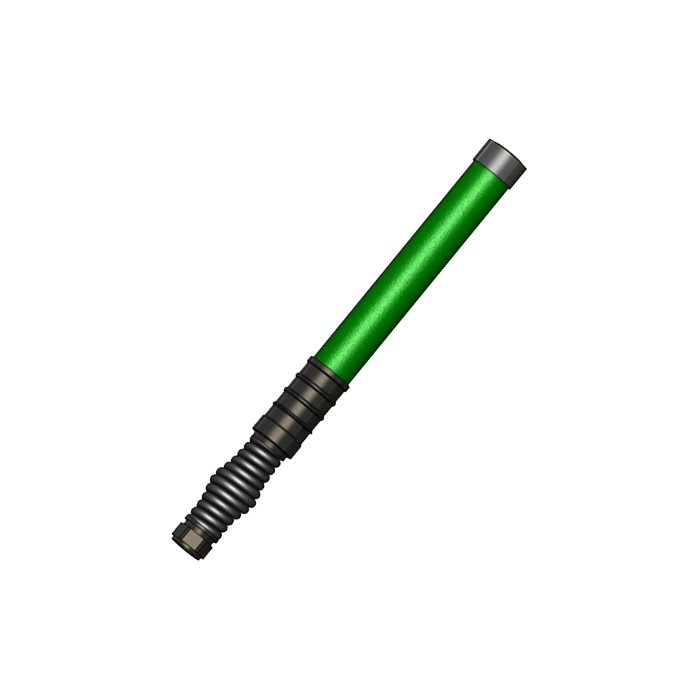

[Image of Manpack Antenna with Spring Base]
The ME-3236G05-NM is a ruggedized Manpack Antenna specifically tuned for the 3.2 GHz to 3.6 GHz S-Band frequency. This range makes it perfect for CBRS, WiMAX, and specialized 5G Private Networks. The antenna features a Spring-Loaded Base for shock absorption during tactical maneuvers. With a compact length of 286mm, it offers a robust 5 dBi gain and can handle high power input up to 70 Watts (CW). Engineered for extreme durability, it is IP67 waterproof, compliant with MIL-STD-810G, and operates in temperatures up to +120°C.
Technical Specifications
Electrical Specifications
| Frequency Range | 3.2 - 3.6 GHz (S-Band / CBRS) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 70 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L286 mm |
| Weight | 0.40 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
CBRS & WiMAX Optimized
Specifically tuned for the 3.2-3.6 GHz band, ensuring maximum efficiency for CBRS private networks and WiMAX applications.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
70W High Power
Capable of handling 70W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
