3.6GHz to 3.8GHz 5dbi Omnidirectional Advanced / High-End Manpack Antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
3.2-3.8 GHz High-End Manpack Antenna (Spring Base)
S/C-Band | 5dBi Gain | 70W Power | IP67 & MIL-STD-810G

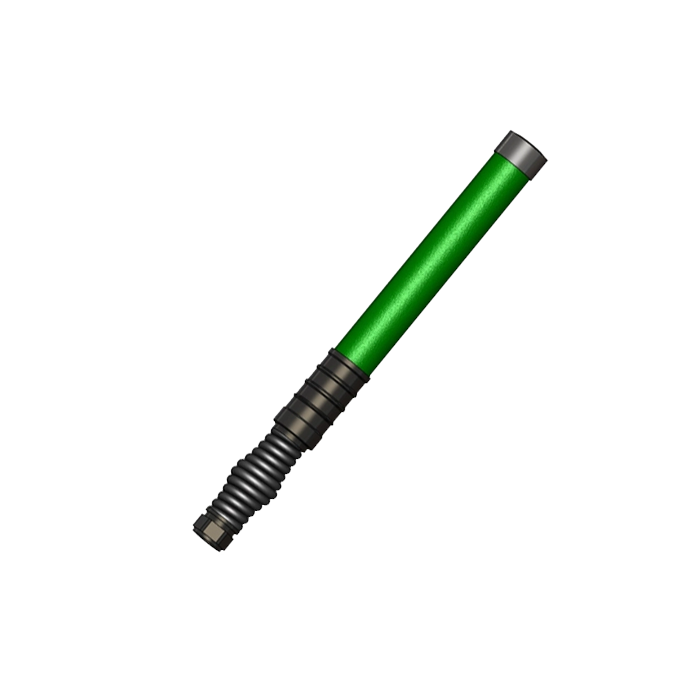

[Image of Manpack Antenna Spring Base]
The ME-3238G05-NM is a high-performance Manpack Antenna covering the 3.2 GHz to 3.8 GHz frequency range, making it ideal for 5G Sub-6 (CBRS/n78), WiMAX, and specialized military applications. Built for the toughest conditions, it features a Spring-Loaded Base for shock absorption and is rated IP67 for waterproofing. With a compact length of 286mm, it delivers a solid 5 dBi gain and handles up to 70 Watts (CW). Its rugged construction withstands temperatures up to +120°C and meets MIL-STD-810G standards for vibration and corrosion resistance.
Technical Specifications
Electrical Specifications
| Frequency Range | 3.2 - 3.8 GHz (S/C-Band) |
| Gain | 5 dBi |
| V.S.W.R | ≤ 2.5 : 1 |
| Max Power | 70 Watts (CW) |
| Polarization | Vertical |
| Beamwidth | H: 360° / V: 28° |
| Connector | N-Male |
Mechanical & Environmental Specifications
| Dimensions | Ø26 x L286 mm |
| Weight | 0.39 kg |
| Spring Base | Yes (Shock Absorption) |
| Waterproof Rating | IP67 |
| Compliance | MIL-STD-810G |
| Operating Temp | -40°C to +120°C (Extreme Heat) |
| Salt Spray Test | 96 Hours |
| Vibration Test | 5.0 G |
| Color | Black and Green |
Key Features (Model Specific)
5G / CBRS Ready
Covers the critical 3.2-3.8 GHz band, supporting CBRS private networks, 5G n78 deployments, and military datalinks.
Spring-Loaded Base
Integrated spring mechanism allows the antenna to flex upon impact, significantly increasing durability in active tactical scenarios.
Extreme Temp Resistance
Designed to operate in extreme heat up to +120°C, suitable for desert environments or mounting near high-temperature machinery.
IP67 & MIL-STD-810G
Fully waterproof and tested against vibration (5G) and salt spray (96Hr), ensuring reliability in maritime and combat environments.
70W High Power
Capable of handling 70W Continuous Wave power, ideal for high-power transmission systems or electronic countermeasure (ECM) roles.
Get a Quote / Customization
Contact us for custom color options or specific frequency tuning.
