30 MHz to 88 MHz 38cm Handheld Whip Antenna TNC-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

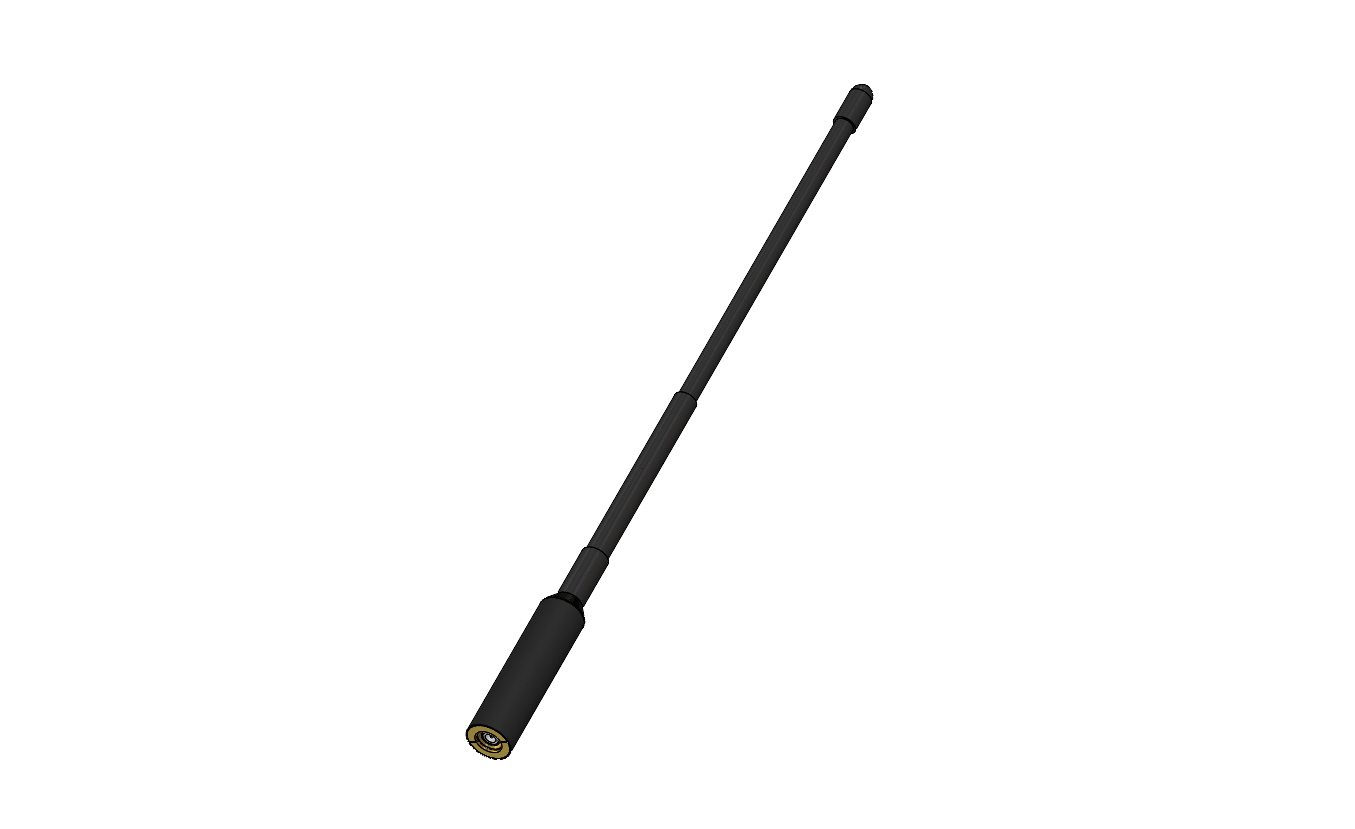

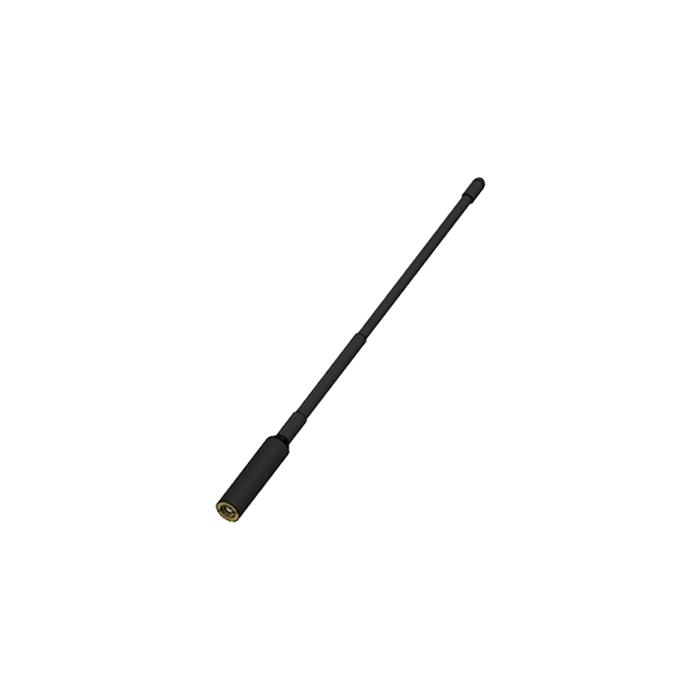

30-88 MHz Tactical Handheld Whip Antenna

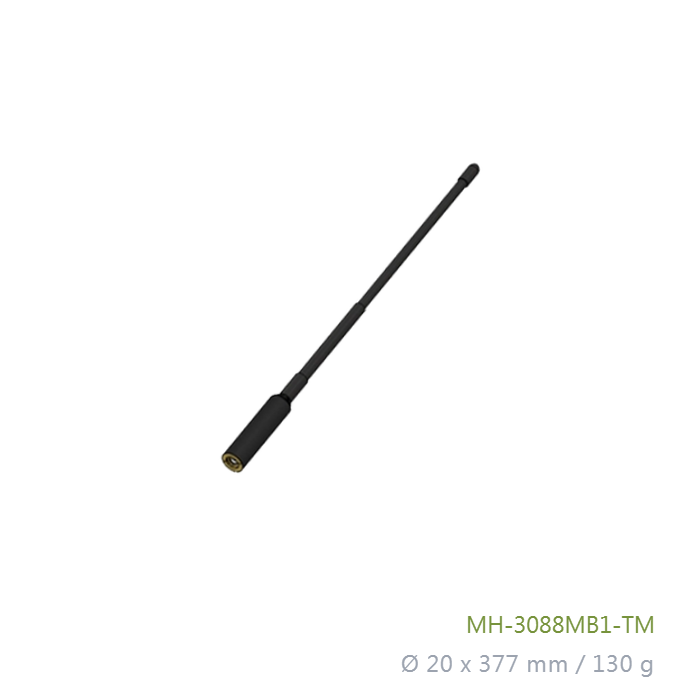

Model: ME-3088G01-TM | VHF Combat Net Radio | 377mm Lightweight
The ME-3088G01-TM is a high-performance Tactical Handheld Whip Antenna specifically engineered for mission-critical communications within the 30 MHz to 88 MHz spectrum. Delivering superior RF efficiency in a compact 377mm form factor, this antenna is optimized for handheld combat net radios and portable devices. Fully compliant with MIL-STD-810 standards, it ensures unwavering performance under extreme field maneuvers and environmental stress.
Technical Specifications
Electrical & Performance
| Frequency Range | 30 - 120 MHz |
| V.S.W.R | ≤ 3.5 : 1 (Typical) |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohm |
| Connector | TNC-Male |
| Appearance | Tactical Matte Black (Low Visibility) |
Mechanical & Environmental
| Total Length | 377 mm ± 3 |
| Dimensions | 20 x 377 mm |
| Net Weight | 130 g (Ultra-Lightweight) |
| Military Standard | MIL-STD-810G Compliant |
| Operating Temperature | -40°C to +120°C |
| Durability Test | Vibration 5.0G / Humidity 95% Passed |
Key Tactical Features
VHF Tactical Optimization
Specifically tuned for the 30-88 MHz combat frequency band, providing reliable line-of-sight voice and data transmission for professional Tactical Use.
Extreme Lightweight Design
At only 130g, it minimizes the mechanical load on the radio unit, preventing port fatigue while ensuring maximum mobility for Signal Management.
MIL-STD-810 Reliability
Constructed to survive the harshest battlefield conditions, including intense 5.0G vibrations and high-velocity salt spray for Signal Security.
Rugged TNC Interface
Equipped with a high-durability TNC-Male connector, ensuring a secure RF connection under rigorous physical movement and Protection Operations.
Get a Quote / Customization
Contact us for custom connector adaptations or specific tactical length requirements for your portable radio systems.
