30 MHz to 88 MHz 94cm Whip Antenna (TNC Male)
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
30-120 MHz VHF Tactical Whip Antenna

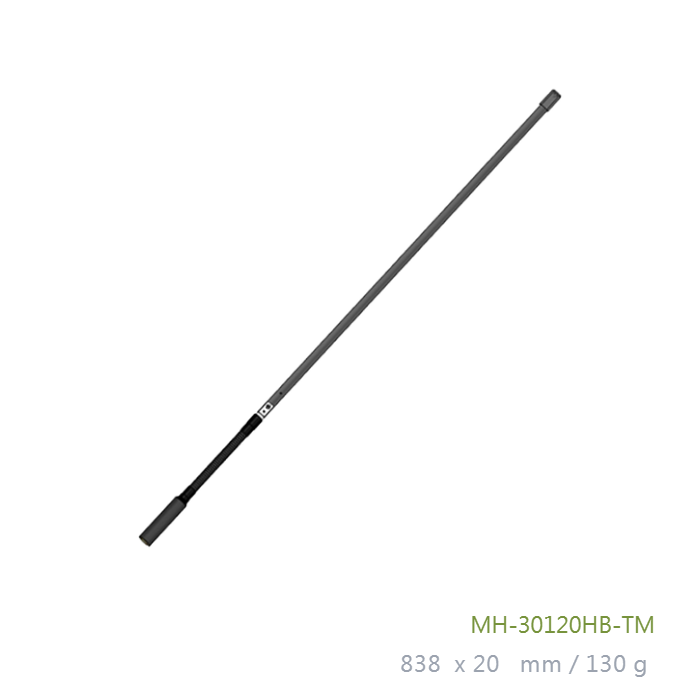

Model: MH-30120HB-TM | NATO Band 30-88 MHz | TNC Male | 838mm
The MH-30120HB-TM is a high-performance VHF Tactical Whip Antenna designed for manpack and handheld radio systems. Optimized for the 30 MHz to 88 MHz combat net radio band (with extended coverage up to 120 MHz), it ensures reliable voice and data communication in field operations. Fully compliant with MIL-STD-810, its flexible whip design withstands the rigors of combat environments while remaining lightweight and portable.
Technical Specifications
Electrical Specifications
| Frequency Range | 30 MHz to 120 MHz (Broadband VHF) |
| Primary Application | 30 - 88 MHz (NATO Tactical Band) |
| V.S.W.R | ≤ 3.5 : 1 (Typical) |
| Impedance | 50 Ohms |
| Radiation Pattern | Omnidirectional |
| Connector | TNC-Male |
Mechanical & Environmental
| Total Length | 838 mm (approx. 33 inches) |
| Base Diameter | 20 mm |
| Net Weight | 130 g (Ultra-Lightweight) |
| Appearance | Tactical Matte Black (Low Visibility) |
| Military Standard | MIL-STD-810G Compliant |
Key Tactical Features
VHF Tactical Band Optimization
Optimized for the critical 30-88 MHz NATO frequency band, providing essential coverage for ground-to-ground Tactical Use.
Broadband 30-120 MHz Agility
Wide bandwidth capability allows for frequency hopping and compatibility with various radio systems for superior Signal Management.
Extreme Lightweight Design
Weighing only 130g, this antenna minimizes operator fatigue while providing the gain and range required for Signal Integrity.
Rugged TNC Interface
Equipped with a secure TNC-Male connector, offering superior vibration resistance for active Signal Security during field operations.
Get a Quote / Customization
Contact us for custom connector adaptations or specific frequency tuning requirements for your tactical radio platforms.
