300mm M8 black Snake tube Antenna Gooseneck (12.8mm)
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

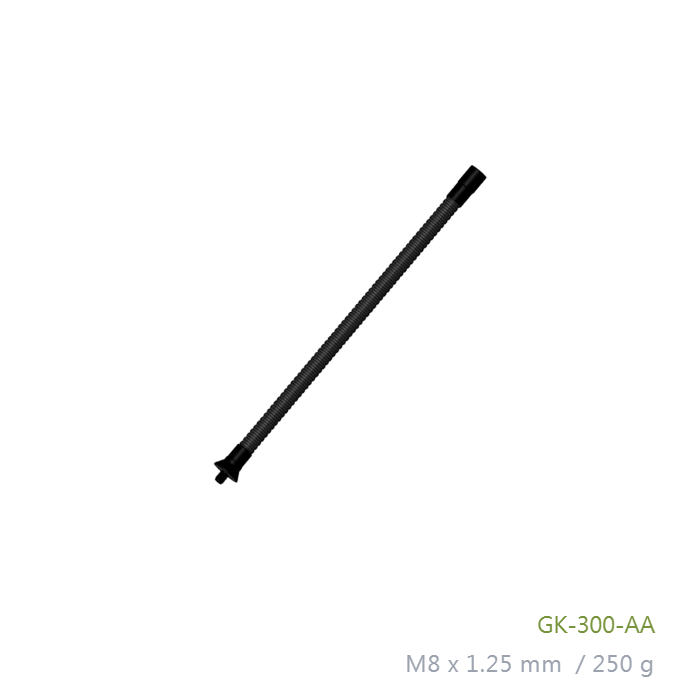

300mm M8 black Snake tube Antenna Gooseneck
MIL-STD-810 | Reinforced Composite | M8*1.25 High-End Thread
The FT-RF-GN-300M8 is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Mechanical & RF Performance
| Thread Specification | M8 * 1.25 (Metric) |
| Frequency Range | DC to 18 GHz |
| Load Capacity | Enhanced (Supports Heavy Manpack Antennas) |
| Flexibility | 360° Multidirectional |
| VSWR | ≤ 1.2 |
| Environmental Standard | MIL-STD-810 Compliant |
| Connector Material | Premium Copper Core |
Mechanical & Environmental Specs
| Length | 300 mm |
| Weight | 250 g |
| Material | Reinforced Composite & Black Chrome Plated Copper |
| Operating Temp | -40°C to +85°C |
Tactical Features
Reinforced Support
Provides superior shape retention for heavier antennas, preventing angle deviation during movement.
Flexible Orientation
Allows for 360-degree multidirectional adjustment to maximize signal radiation.
MIL-STD-810 Ready
Designed to withstand extreme environmental stress, including high-impact shocks and corrosion.
Stealth Tactical Finish
Premium black chrome plating offers a low-reflection profile for signal security.
Get a Quote / Customization
Contact us for specialized mounting adapters or custom tactical length variations for your manpack radio system.
