30MHz to 120MHz 1645cm Whip Antenna, BNC Male Connector, 13/16-20 installation screw
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

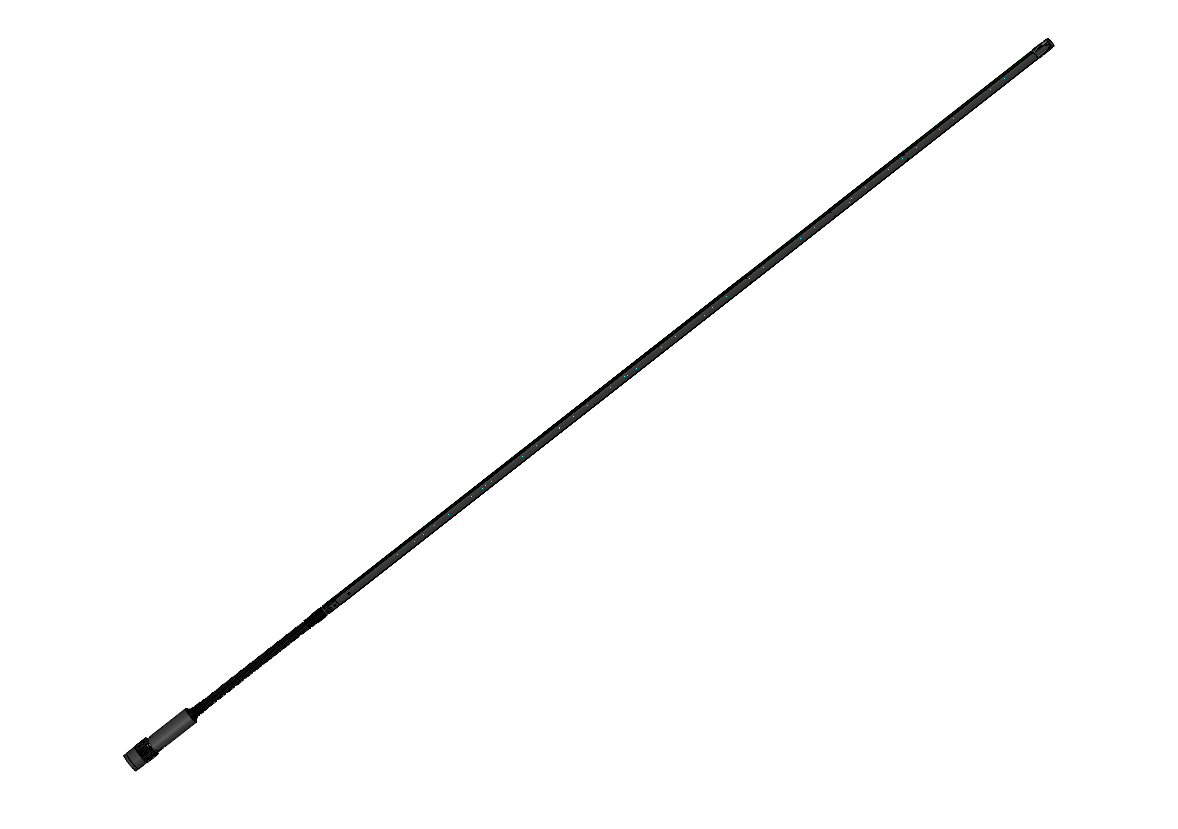

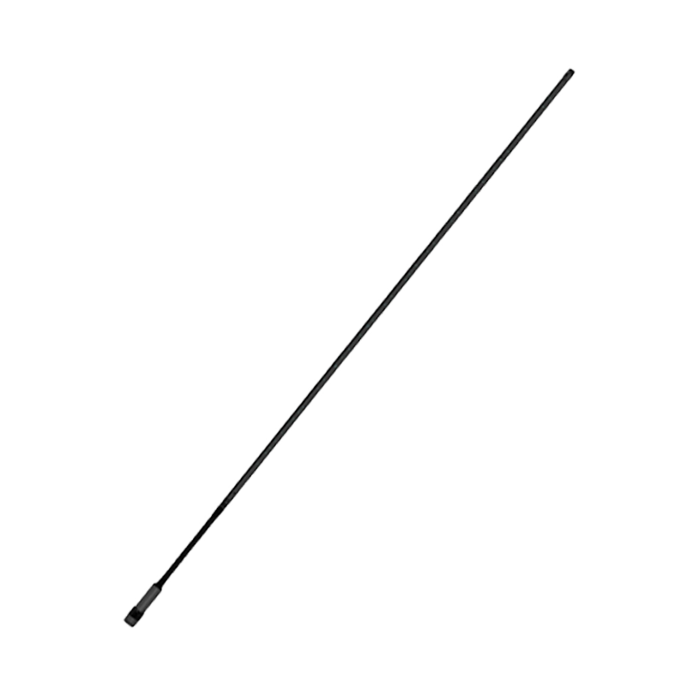

30-120 MHz Tactical VHF Whip Antenna
Model: ME-30120G01-BM | 1645mm High-Reach | BNC-Male | MIL-STD-810
The ME-30120G01-BM is a high-performance Tactical Whip Antenna specifically engineered for mission-critical VHF communications across the 30 MHz to 120 MHz spectrum. Measuring 1645mm in length, this radiator provides superior line-of-sight range for mobile and field-deployed tactical systems. Fully compliant with MIL-STD-810, it ensures unwavering signal stability and mechanical endurance in the most hostile operational environments.
Technical Specifications
Electrical & Performance
| Frequency Range | 30 - 120 MHz |
| V.S.W.R | ≤ 3.5 : 1 (Across Full Band) |
| Radiation Pattern | Omnidirectional |
| Impedance | 50 Ohm |
| Connector | BNC-Male |
| Mounting Interface | 13/16-20 Installation Screw |
Mechanical & Environmental
| Total Length | 1645 mm |
| Base Dimensions | 29 x 1645 mm |
| Net Weight | 700 g |
| Military Standard | MIL-STD-810G Compliant |
| Tactical Color | Low-Visibility Matte Black |
| Durability Test | Vibration / Shock / Environmental Extreme Tested |
Key Tactical Features
Broadband VHF Dominance
Wide-spectrum coverage from 30 to 120 MHz, supporting combat net radios and emergency Signal Management with a single radiator.
Superior Field Range
The 1645mm high-reach whip design significantly enhances signal propagation and range, ensuring Signal Integrity over long distances.
Dual Mechanical-RF Interface
Equipped with a secure 13/16-20 screw-on base for vehicle installation, coupled with a reliable BNC connector for Signal Security.
Battle-Proven Survival
Constructed to MIL-STD-810 specifications to withstand intense vibrations and mechanical shocks common in professional Tactical Use.
Get a Quote / Customization
Contact us for custom length modifications, alternative base mounting threads, or specialized tactical camouflage finishes.
