30MHz to 120MHz Omni Broadband antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

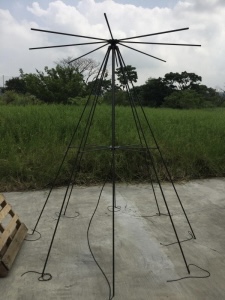

30-120 MHz Broadband Omnidirectional Antenna
VHF Tactical Band | 3.2m x 2.6m Large Array | MIL-STD | 13kg Heavy Duty
The MT-30120M03A-NF is a high-performance, heavy-duty Broadband Omnidirectional Antenna designed for base station and strategic command applications. Covering the full 30 MHz to 120 MHz spectrum, it provides critical connectivity for tactical VHF networks and air-to-ground communications. Its substantial dimensions (3200x2600mm) ensure superior radiation efficiency at lower frequencies, while its rugged 13kg construction and MIL-STD compliance guarantee reliability in severe weather conditions. With a wide 68° vertical beamwidth, it offers excellent signal coverage over varying terrain elevations.
Technical Specifications
Electrical Specifications
| Frequency Range | 30 MHz to 120 MHz (Broadband) |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| Vertical Beamwidth | 68° (Wide Elevation) |
| Connector | N-Female |
Mechanical Specifications

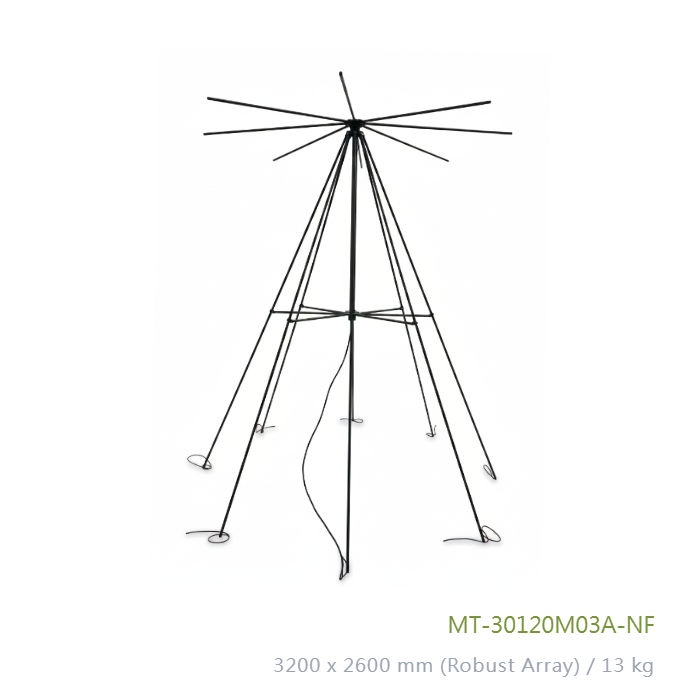

| Model Number | MT-30120M03A-NF |
| Dimensions | 3200 x 2600 mm (Robust Array) |
| Weight | 13 Kg (Heavy Duty) |
| Compliance | MIL-Stds (Military Standards) |
Key Features (Model Specific)
Broadband 30-120 MHz
Delivers continuous coverage across the entire tactical VHF band and lower airband, ideal for multi-role communication centers.
Superior Signal Efficiency
The large 3.2m x 2.6m physical structure ensures high gain and efficiency even at the 30 MHz low-band edge.
Wide Vertical Coverage
A 68° vertical beamwidth ensures reliable communication with aircraft or ground units located on hills and valleys.
Heavy Duty & MIL-STD
Weighing 13kg and built to military standards, this antenna is designed to withstand hurricane-force winds and harsh environments.
Get a Quote / Customization
Contact us for mast mounting kits or radiation pattern data.
