4 MHz to 30 MHz N(M) 2m Whip HF Manpack Antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

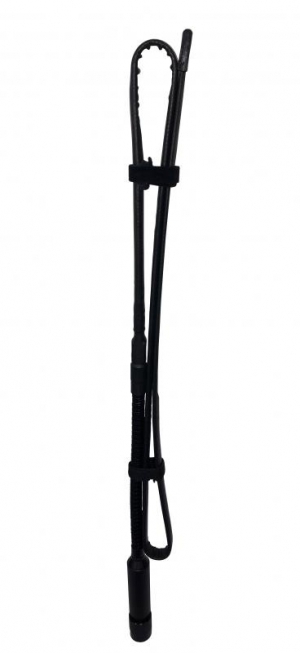

4-30 MHz HF Manpack Whip Antenna

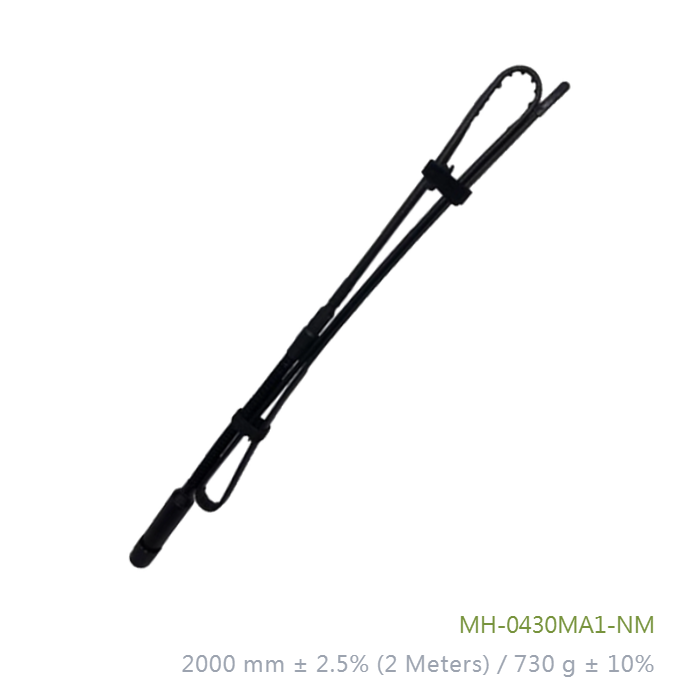

Model: MH-0430MA1-NM | Multilayer Tape Steel | 2000mm Length
The MH-0430MA1-NM is a rugged, wideband HF Monopole Whip Antenna designed for manpack radio applications. Its radiator is constructed from specialized Multilayered Steel Tape encased in a protective sleeve. This unique "tape whip" design offers exceptional flexibility, capable of withstanding over 1,000 bending cycles, making it ideal for Tactical Use in dense vegetation or confined spaces while providing reliable HF communication.
Technical Specifications
Electrical Performance
| Frequency Range | 4 MHz - 30 MHz (Broadband HF) |
| Power Handling | ≥ 20 Watts |
| Impedance | 50 Ohm |
| Polarization | Vertical |
| Radiation Pattern | Omni-Directional |
| Connector | Modified N-Male |
Mechanical & Environmental
| Mechanical Length | 2000 mm ± 2.5% (2 Meters) |
| Net Weight | 730 g ± 10% |
| Antenna Design | Tape, Sleeve Covered (Multilayer Steel) |
| Bending Life | > 1000 Times |
| Operating Temperature | -20°C to +60°C |
| Compliance | RoHS, CE, FCC, MIL-Stds |
Key Tactical Features
Broadband HF 4-30 MHz
Covers the entire High Frequency tactical band, enabling short-range ground wave and long-range skywave (NVIS) Signal Management.
Flexible Tape Design
Features a multilayer steel tape radiator that can be folded repeatedly without breaking, ensuring Signal Integrity in rough terrain.
Sleeve Covered Protection
The steel core is covered by a protective sleeve, adding resistance to abrasion and weather for professional Signal Security.
MIL-STD Reliability
Tested to military standards for ruggedness, ensuring mission-ready performance for Protection Operations in harsh environments.
Get a Quote / Customization
Contact us for custom connector types or specific frequency tuning for your manpack radio systems.
