400 MHz - 3 GHz 9dBi High-Power Log-Periodic Antenna, N-Female
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

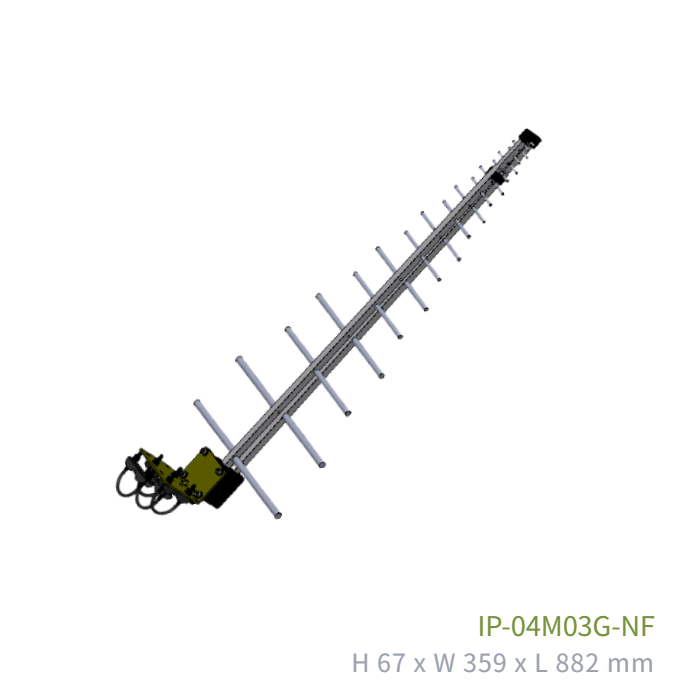

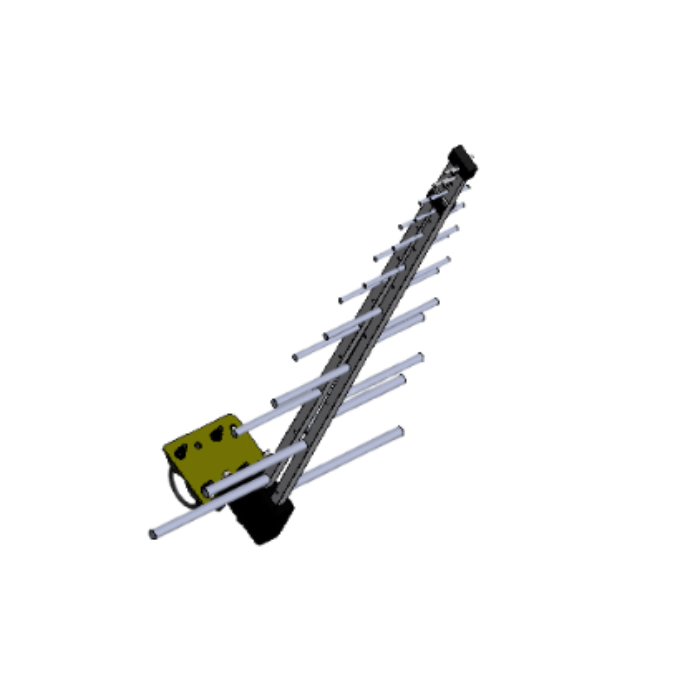

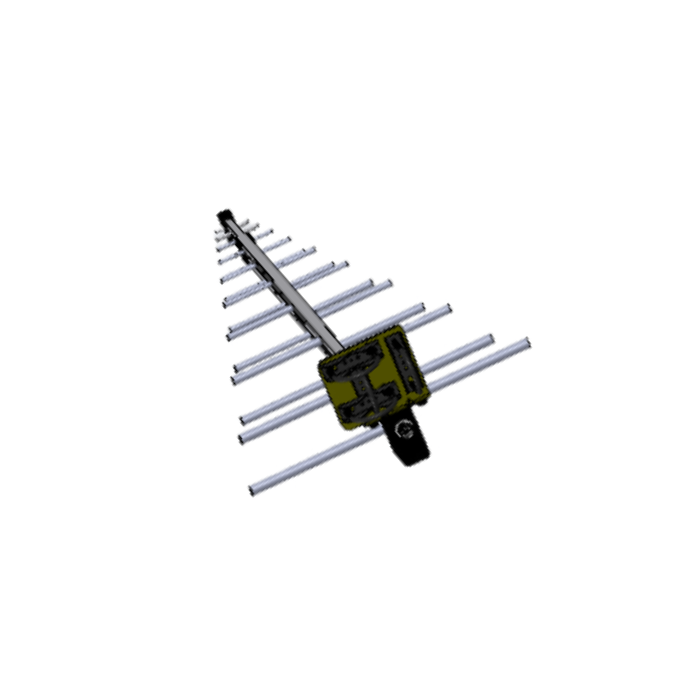

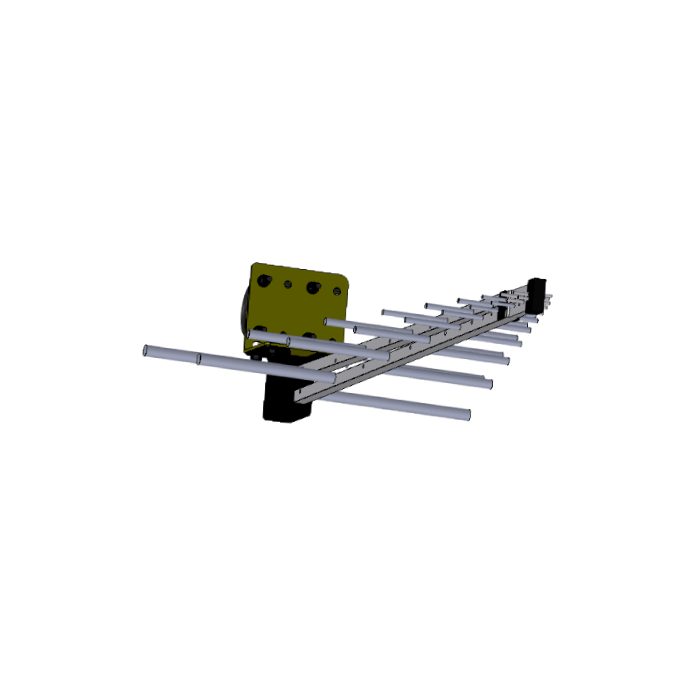

IP-04M03G-NF High Power Log-Periodic Antenna
400MHz to 3GHz 9dBi Directional Antenna | N-Female Connector
The IP-04M03G-NF is a high-performance wideband log-periodic directional antenna operating from 400MHz to 3GHz. Offering a high gain of 9dBi and high power handling capability up to 350W peak, it delivers superior RF efficiency, directional accuracy, and outstanding front-to-back ratio across demanding industrial communication and RF measurement environments.
Hardware Performance
| Dimensions | H 67 x W 359 x L 882 mm |
| Weight | 2100g (Estimate: 2099.16g) |
| Connector | N-Female |

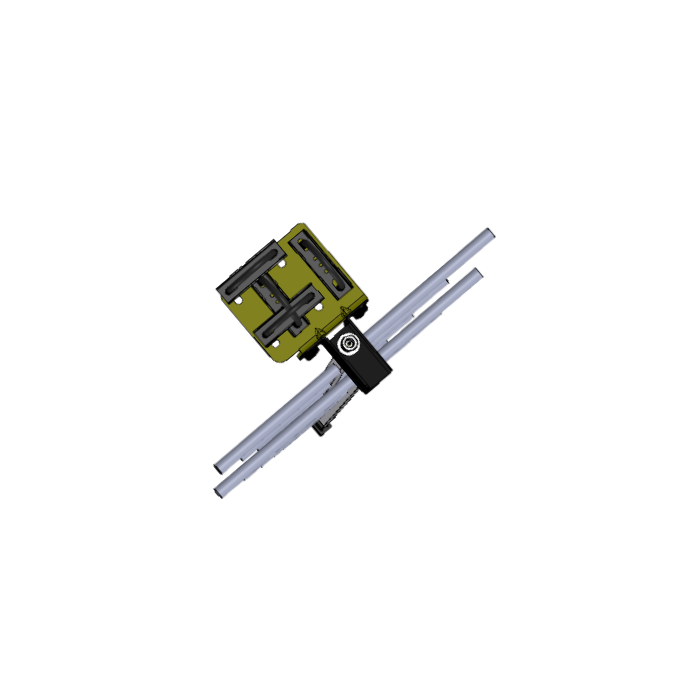

| Mounting Bracket | MO-L1 (AISI 304 Stainless Steel) |

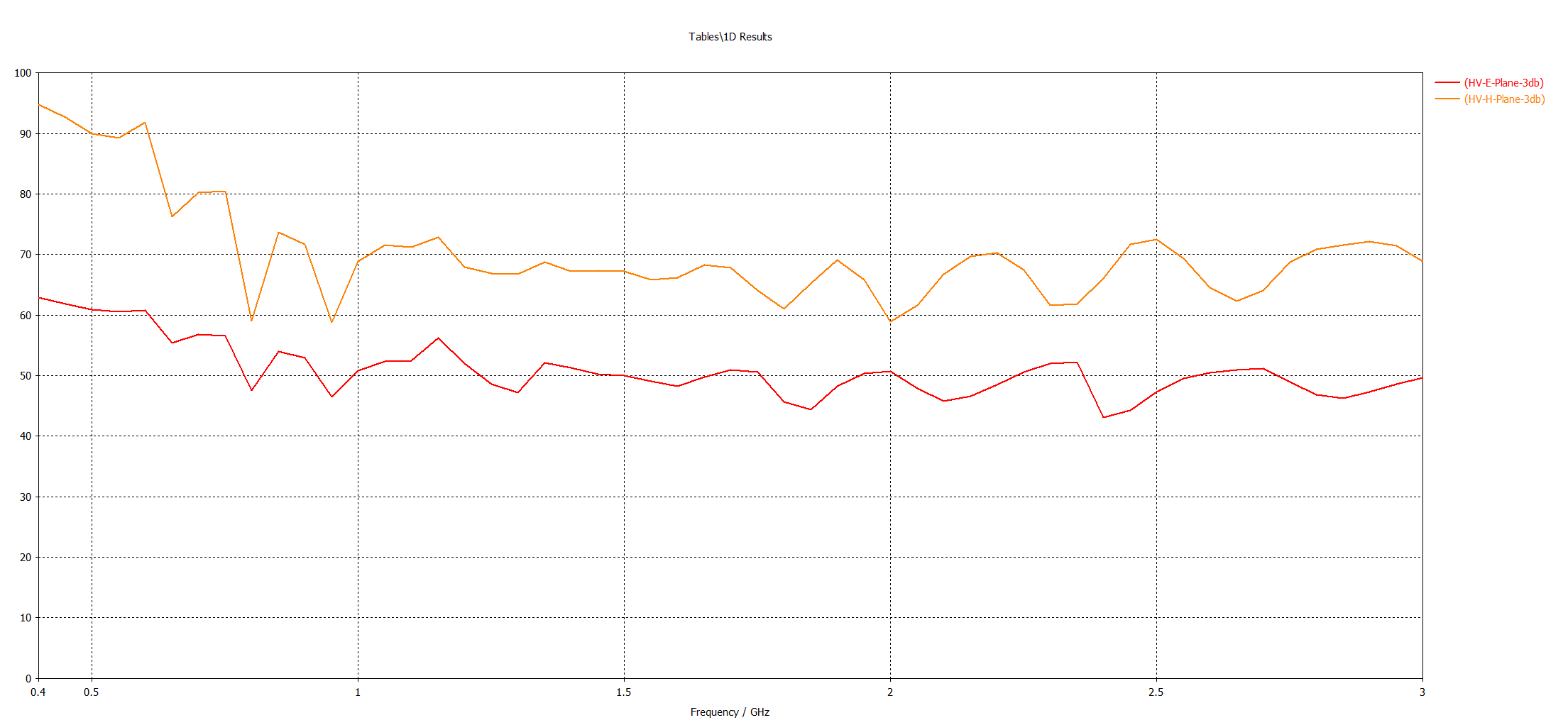

| -3dB Beamwidth (V) | 42° to 60° |
| -3dB Beamwidth (H) | 60° to 92° |

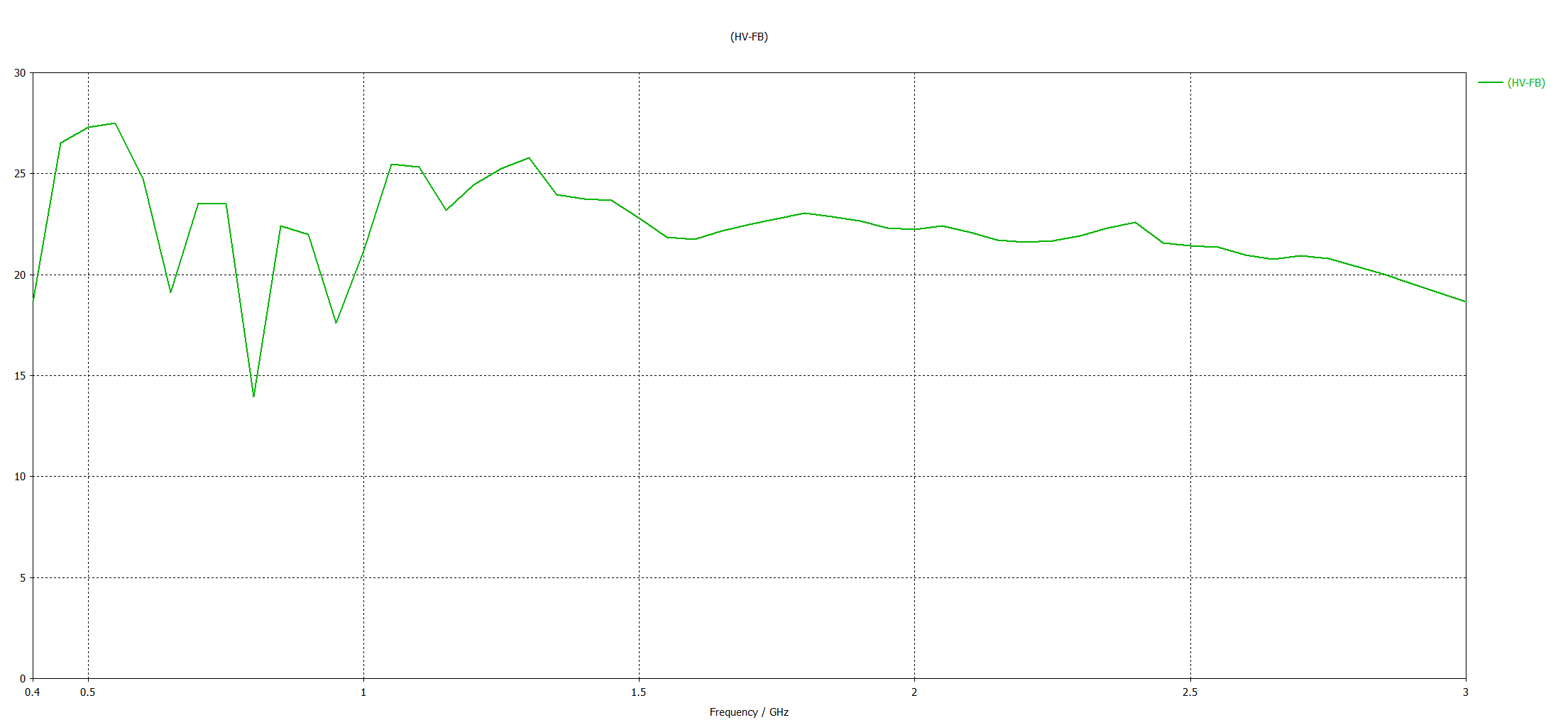

| Front-to-Back Ratio | 20 dB (Avg) |
Software & Control
| Frequency Range | 400MHz to 3GHz |

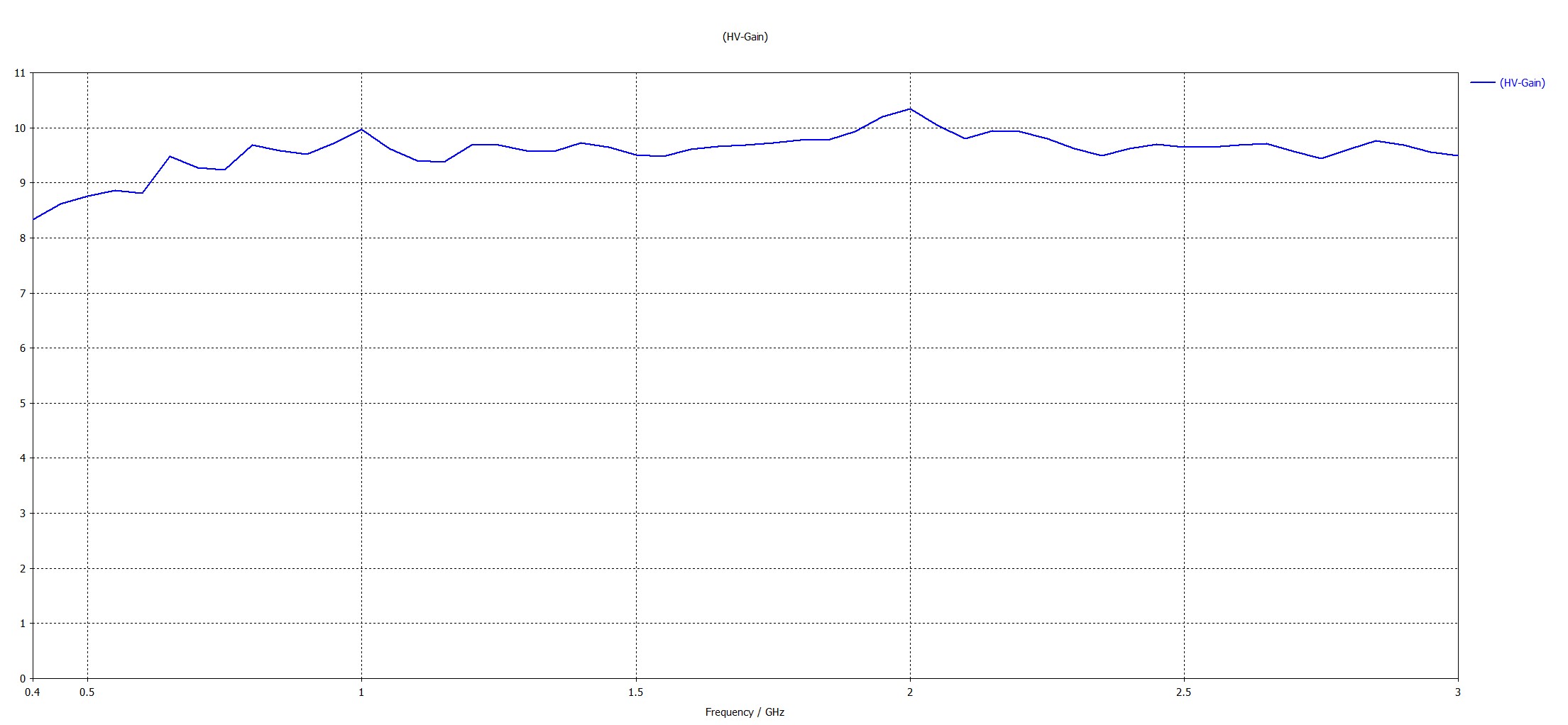

| Gain | 9 dBi (Min: 8 dBi) |
| VSWR | Less than 2.0 (Avg: 1.5) |
| Power Handling | Max CW: 150W / Peak: 350W |
Key Design & Feature Highlights
High Precision Control
Delivers stable radiation patterns across 400MHz to 3GHz with an average VSWR of 1.5, ensuring optimal RF directional control.
Rugged Reliability
Constructed with durable elements and AISI 304 stainless steel mounting hardware for long-term outdoor survival.
Versatile Integration
Equipped with standard N-Female connector and versatile L-bracket assembly for easy integration onto masts and positioners.
High Load Capacity
Engineered for high transmission robustness handling continuous wave powers up to 150W and peak power levels up to 350W.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
