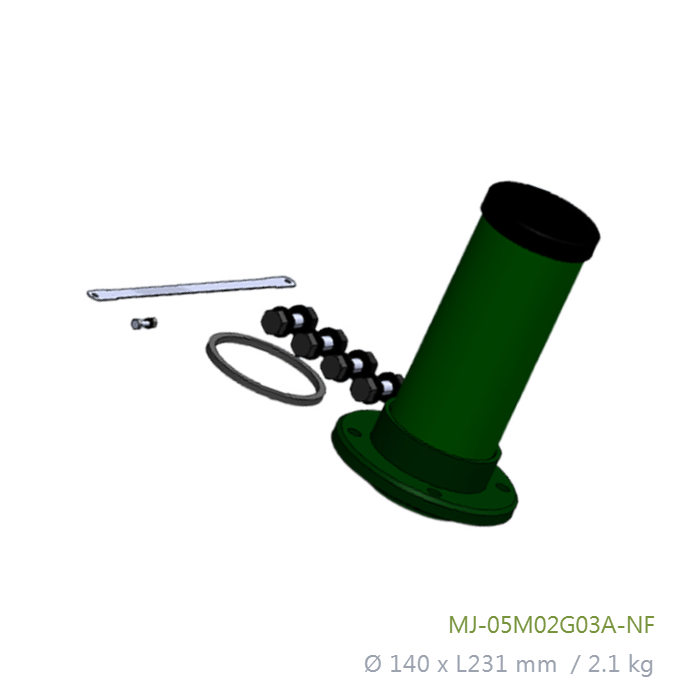

500MHz to 2000MHz 3dbi Vehicular Omnidirectional Antenna, MJ-05M02G03A-NF
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
500-2000 MHz 500W High Power Vehicular Antenna
Model: MJ-05M02G03A-NF | 500W CW | Wideband UHF/L-Band
The MJ-05M02G03A-NF is a compact yet incredibly powerful vehicular antenna designed for high-intensity Signal Management and mission-critical applications. Despite its compact 231mm profile, this heavy-duty unit handles an impressive 500 Watts of Continuous Wave (CW) power. Covering the broad 500 MHz to 2000 MHz spectrum, it is the ultimate solution for tactical Electronic Protection and secure wideband communications in the harshest environments.
Core Capabilities & Functions
Electrical Performance
| Frequency Range | 500 MHz to 2000 MHz |
| Maximum Power | 500 Watts (Continuous Wave) |
| Gain (Peak) | 3 dBi |
| V.S.W.R | ≤ 2.0 : 1 |
Mechanical & Environmental
| Dimensions | Ø 140 x 231 mm |
| Net Weight | 2.1 kg (Heavy Duty Construction) |
| Waterproof Rating | IP67 Sealed Housing |
| Temperature Range | -40°C to +120°C |
Key Operational Features
500W CW High Power
Exceptional power handling in a compact form factor, ideal for active Signal Integrity maintenance and high-energy tactical transmissions.
500-2000 MHz Wideband
Covers critical UHF, GSM, LTE, and L-Band frequencies, allowing for versatile multi-band operation for Signal Security with a single antenna.
Rugged Heavy-Duty Build
Solid aluminum and stainless steel core designed to dissipate high heat and withstand 5G vibrations during Tactical Use on rough terrain.
MIL-STD-810G Certified
Tested for salt spray (96HR) and extreme temperatures, guaranteeing mission readiness for the most demanding vehicle platforms.
Get a Quote / Customization
Contact us for vehicle mounting patterns or custom frequency tuning for your mission-critical radio systems.
