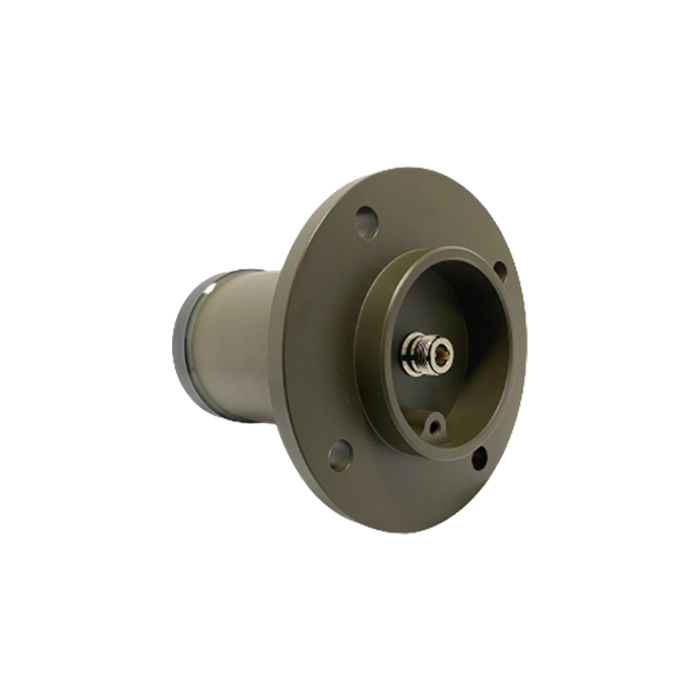

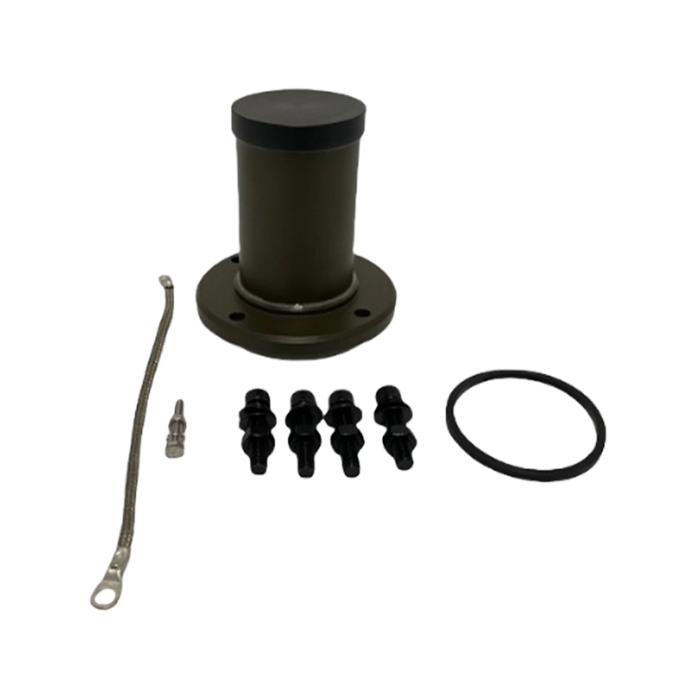

500MHz to 6GHz 3dBi Signal Management Antenna For Vehicles N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
300MHz - 6GHz Signal Management Antenna (Model: [Insert Model No.])
Ultra-Wideband | 200W High Power | 270° Wide Sector Coverage
The 300MHz - 6000MHz Vehicular Antenna is an ultra-efficient, multi-band Signal Management System designed for professional and tactical vehicle installations. Covering an immense frequency span from UHF to 6GHz, it supports simultaneous operations across military radio, cellular (LTE/5G), and WiFi bands. Unlike standard omnis, this unit features a specialized 270° horizontal beamwidth, offering wide-sector directional coverage that optimizes power distribution and minimizes self-interference. With a 200W power handling capacity and a compact, ruggedized housing (150x140x140mm), it is the ideal solution for electronic countermeasures (ECM) and spectrum monitoring.
Technical Specifications
Electrical Specifications
| Frequency Range | 300 MHz to 6000 MHz (Ultra-Wideband) |
| Gain | 3 dBi |
| Maximum Power | 200 Watts (CW) |
| V.S.W.R | ≤ 2.5 : 1 |
| Radiation Pattern | Directional / Wide Sector |
| Beamwidth (-3dB) | Horizontal: 270° / Vertical: 41° |
| Polarization | Vertical |
| Connector | N-Female |
Mechanical & Environmental Specifications

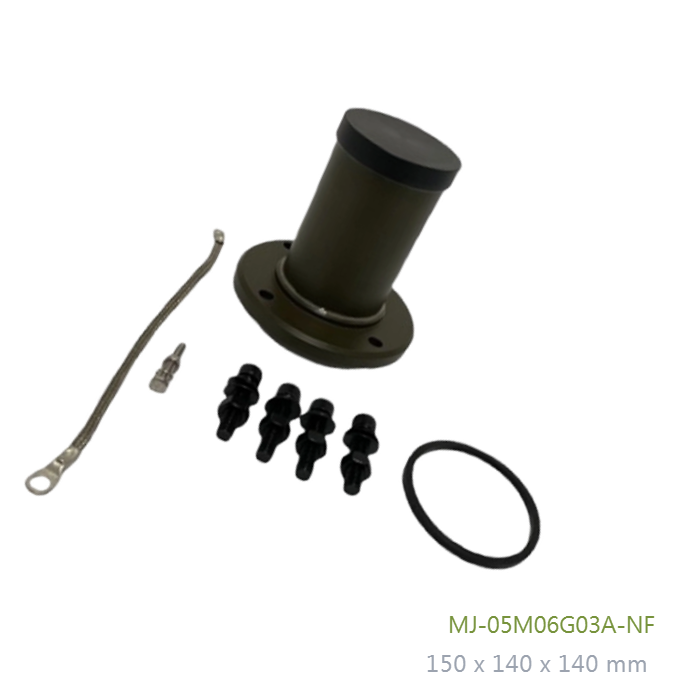

| Dimensions | 150 x 140 x 140 mm |
| Weight | Lightweight (Approx. TBD) |
| Color | Black / Green |
| Operating Temperature | -40°C to +60°C |
| Compliance | MIL-STD-810G, RoHS, FCC, CE |
| Application | Indoor / Outdoor (Vehicle Mounted) |
Key Features (Model Specific)
270° Wide Sector
Unique directional pattern provides broad 270-degree coverage, allowing for strategic placement on vehicles to manage signal directionality.
300M-6G Full Spectrum
One antenna covers virtually all critical comms bands, including UHF, L-Band, S-Band, and C-Band (5G/WiFi).
200W Power Handling
Compact yet powerful, capable of handling 200W CW for effective signal security or high-power transmission applications.
Compact Cube Design
Measuring just 150x140x140mm, it offers a low visual profile and aerodynamic efficiency for vehicle roof mounting.
MIL-STD-810G
Rugged construction tested to military standards for vibration, temperature, and environmental endurance.
Get a Quote / Customization
Contact us for custom mounting brackets or radiation pattern reports.
