600MHz to 800MHz 8dbi High Power Panel Directional Antenna SMA-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

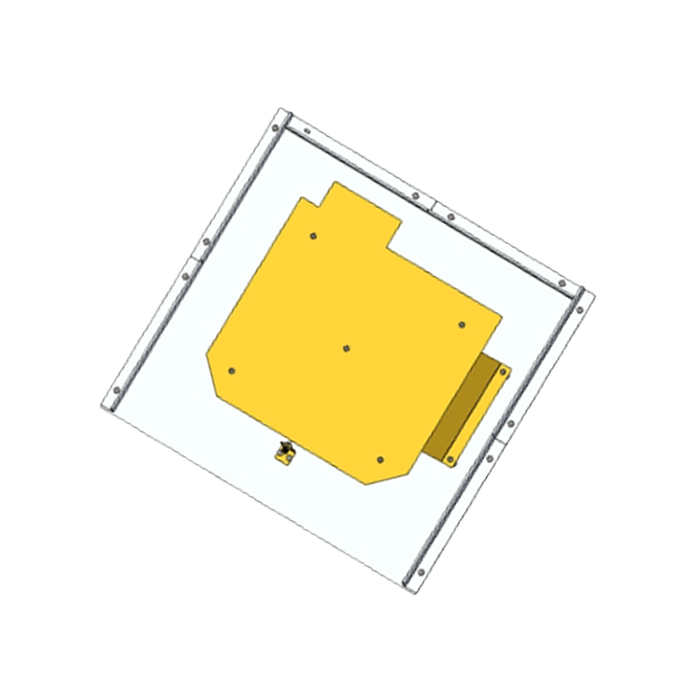

600MHz to 800MHz 8dBi High Power Panel Antenna
600-800 MHz High-Performance UHF/LTE | 8 dBi Directional Gain | 500W High Power
The MP-0608M08A-SF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 600 MHz to 800 MHz |
| Gain | 8 dBi |
| Horizontal Beamwidth | 58° |
| Vertical Beamwidth | 46° |
| VSWR | ≤ 1.5 |
| Polarization | Linear (Vertical) |
| Connector | SMA-Female |
Mechanical & Environmental Specs

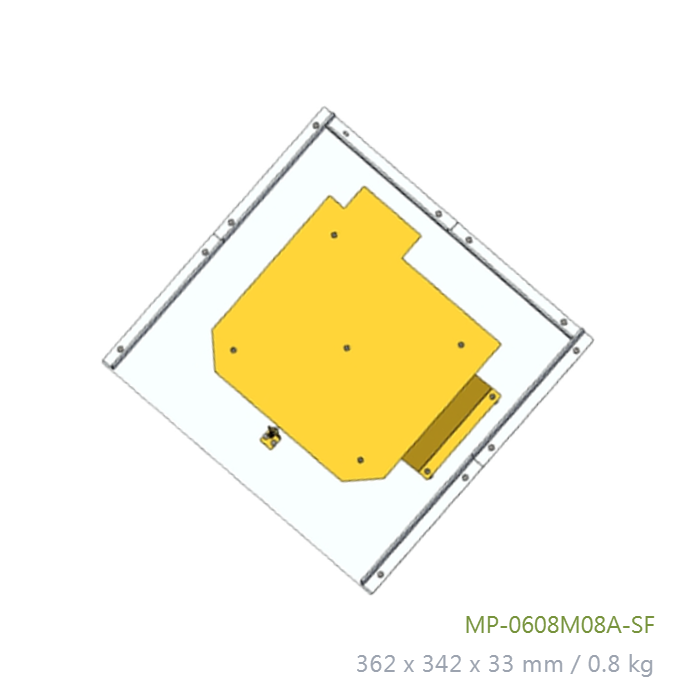

| Dimensions | 362 x 342 x 33 mm |
| Weight | 0.8 kg |
| Material | High-Grade UV-Stable Polymer & Aluminum |
| Operating Temp | -40°C to +85°C |
Professional Features
500W High Power Capacity
Designed for professional high-power applications, supporting continuous 500W output for signal broadcasting and high-energy rugged relays.
UHF & LTE Optimization
Specifically tuned for the 600-800 MHz spectrum, providing superior penetration and range for modern LTE communications.
Directional Precision
The 8 dBi directional gain focuses energy effectively, extending signal reach while significantly reducing multi-path interference.
Ultra-Slim & Lightweight
At only 33mm thick and 0.8kg, this panel offers minimal wind load and a low-profile aesthetic for rugged mast installations. Made in Taiwan.
Get a Quote / Customization
Contact us for custom cable assemblies, N-Type connector options, or high-durability mounting kits for your professional systems.
