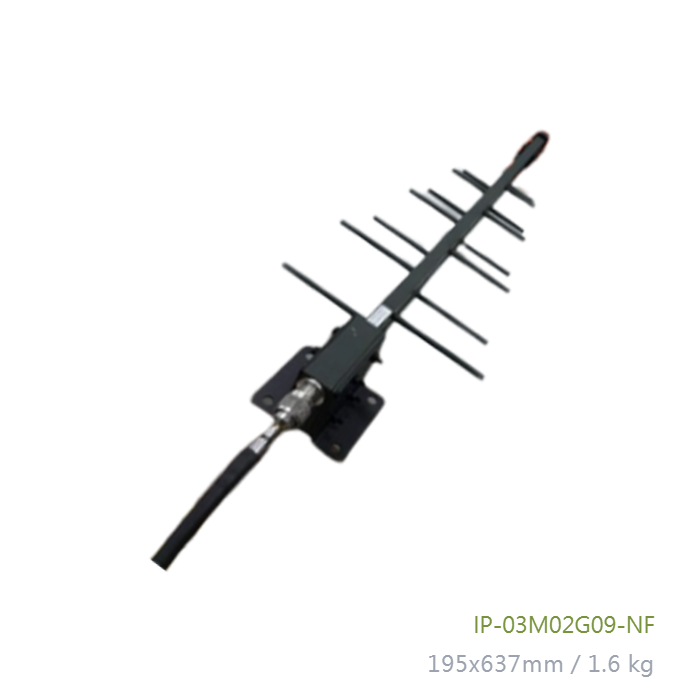

700MHz to 3000MHz Professional Log-periodic antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
700MHz to 3000MHz Military Log Periodic Antenna
700-3000 MHz High-Performance | 11 dBi High Gain | 500W Tactical Grade
The LP-07300M11-NF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Electrical Performance
| Frequency Range | 700 MHz to 3000 MHz |
| Gain | 11 dBi (Average) |
| Horizontal Beamwidth | 65° |
| Vertical Beamwidth | 50° |
| VSWR | ≤ 1.5 |
| Polarization | Linear (Vertical / Horizontal) |
| Connector | N-Female (500W CW) |
Mechanical & Environmental Specs
| Dimensions | 450 x 400 x 50 mm |
| Weight | 0.8 kg |
| Material | Aerospace-Grade 6061T6 Aluminum |
| Operating Temp | -40°C to +85°C | Made in Taiwan |
Tactical Features
High Power Handling
Supports up to 500W CW, engineered for Signal Defense and Electronic Countermeasures.
Ultra-Lightweight Design
At only 0.8 kg, this LPDA is optimized for rapid deployment and portable tactical units.
Aerospace Durability
Constructed from 6061T6 Aluminum for extreme structural integrity in hostile environments.
Wideband Precision
Continuous coverage from 700MHz to 3GHz for multi-mission spectrum dominance.
Get a Quote / Customization
Contact us for custom mounting solutions, alternative connectors, or specific tactical requirements. Made in Taiwan.
