705mm Steel belt Whip Antenna (5/16-24UNEF)
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
705mm Green Tactical Manpack Whip (Model: WP-AAL700-I)
Green Paint | 4-Section Steel Belt | Black Silicone Waterproof | M8 Connector

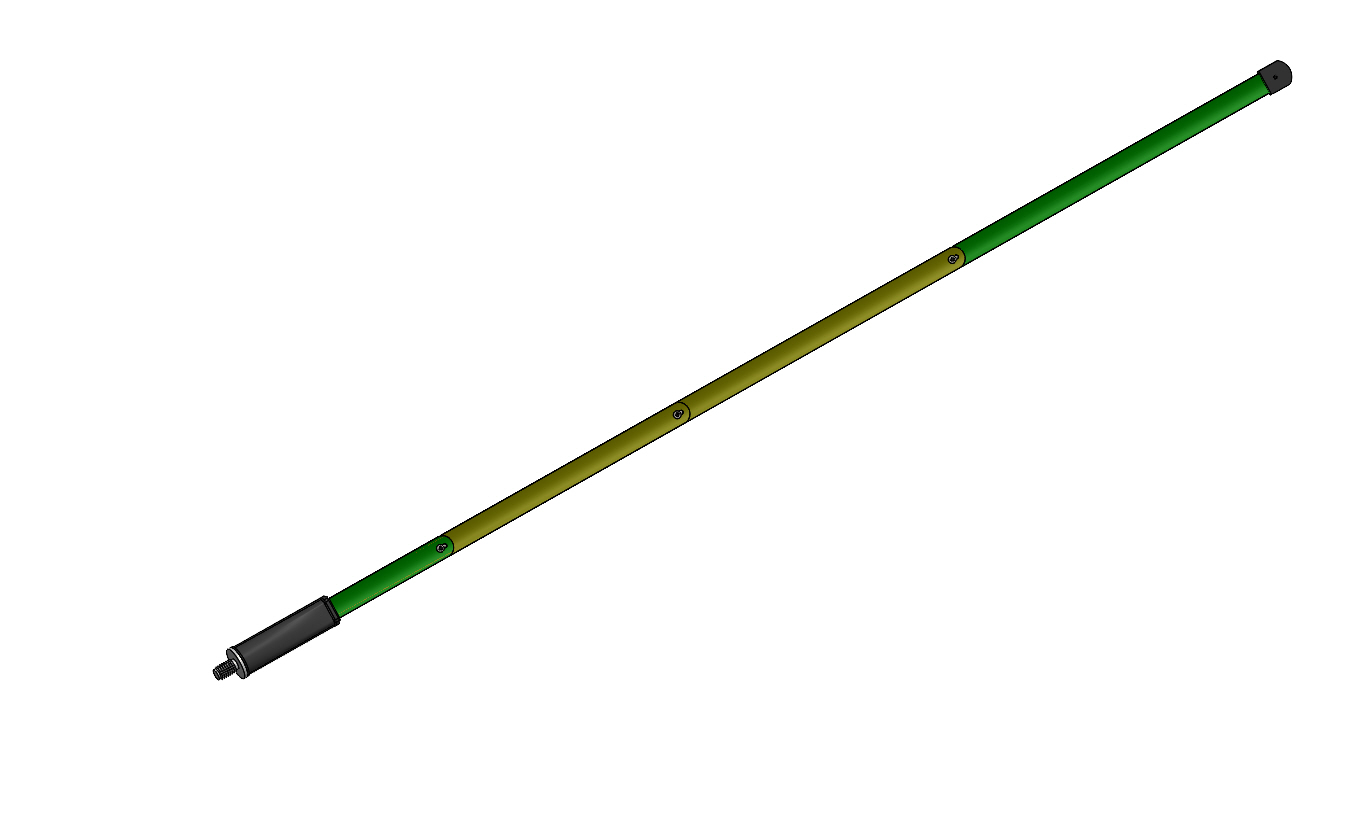

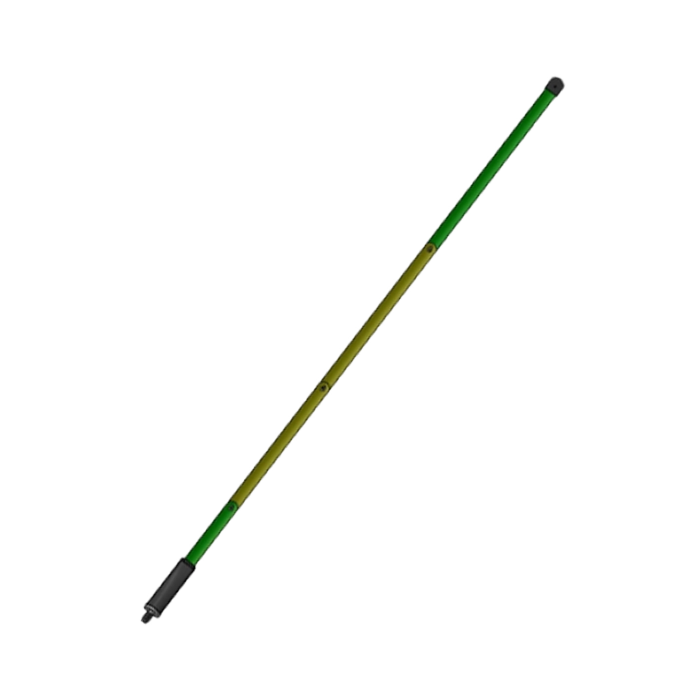

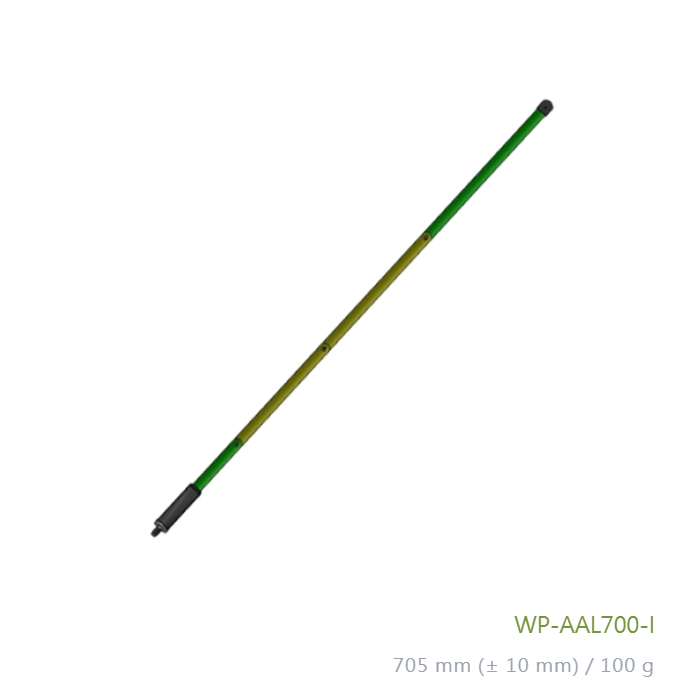

[Image of WP-AAL700-I Green Antenna]
The WP-AAL700-I is a specialized variant of our VHF manpack antenna series, featuring a **Tactical Green** finish for camouflage and field operations. Designed for portable radios with integrated antenna tuners, this 705mm whip is constructed from **4 sections of multilayered steel belt tapes**, providing a unique balance of flexibility and rigidity. Critical connection points are sealed with **Black Silicone**, ensuring superior waterproofing and durability in wet environments. Like its counterparts, it supports continuous high-power transmission and utilizes a standard M8 x 1.25 connector.
Technical Specifications
Electrical & Mechanical Specifications
| Model Number | WP-AAL700-I |
| Frequency Band | VHF (Requires Integrated Tuner) |
| Radiator Structure | 4 Sections of Multilayered Steel Belt |
| Surface Finish | Green Paint (Tactical) |
| Waterproofing | Black Silicone Sealed |
| Length | 705 mm (± 10 mm) |
| Weight | 100 g |
| Connector | M8 x 1.25 - 2B |
| Power Handling | Continuous High Power |
Key Features (Model Specific)
Tactical Green Finish
Coated with durable green paint to provide visual camouflage, making it ideal for jungle and woodland tactical environments.
4-Section Steel Belt
The radiator is composed of 4 distinct sections of multilayered steel tape, optimizing conductivity and structural resilience.
Black Silicone Waterproofing
Enhanced with black silicone sealing at critical joints to prevent water ingress, ensuring reliability in heavy rain and humidity.
Designed for Tuners
Specifically engineered for use with manpack radios that utilize internal automatic antenna tuners (ATU).
Continuous High Power
Capable of handling continuous high-power output for sustained communication or electronic countermeasure operations.
Get a Quote / Customization
Contact us for custom color options or connector variations.
