7GHz to 18GHz 20dbi Left polarization Broadband Horn Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

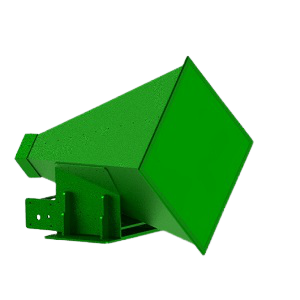

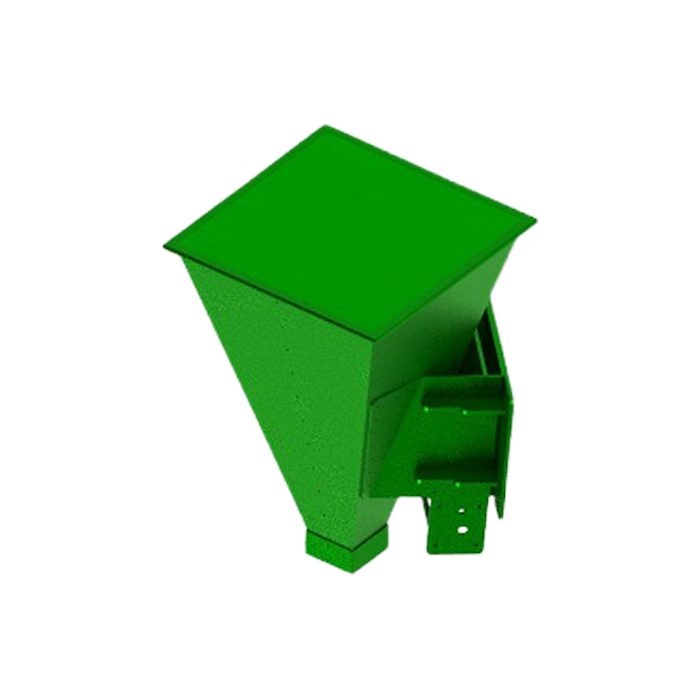

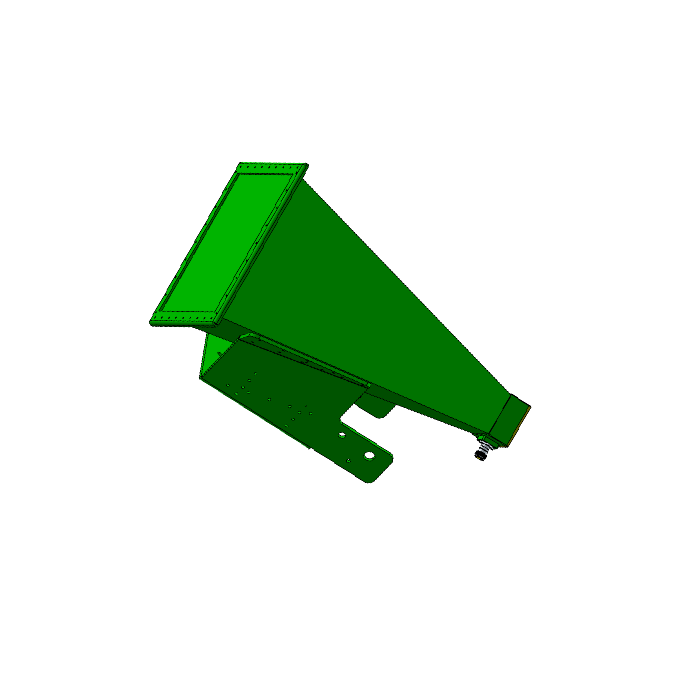

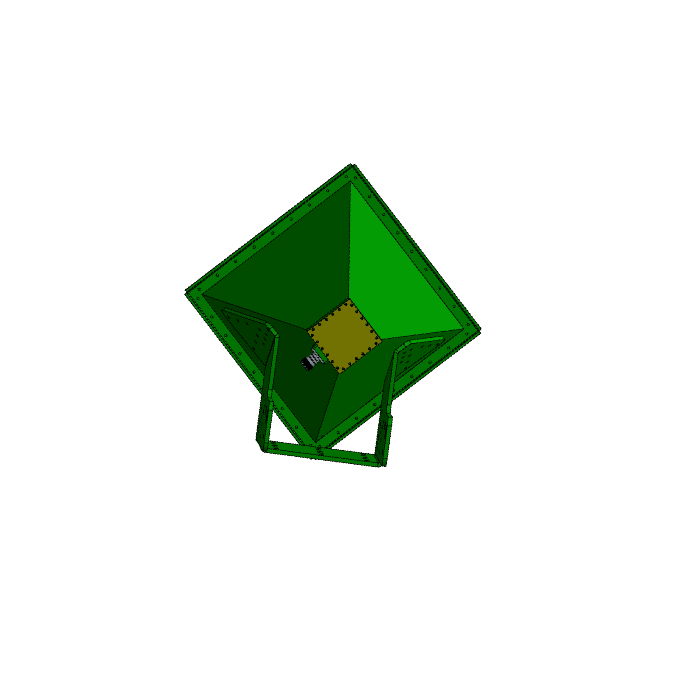

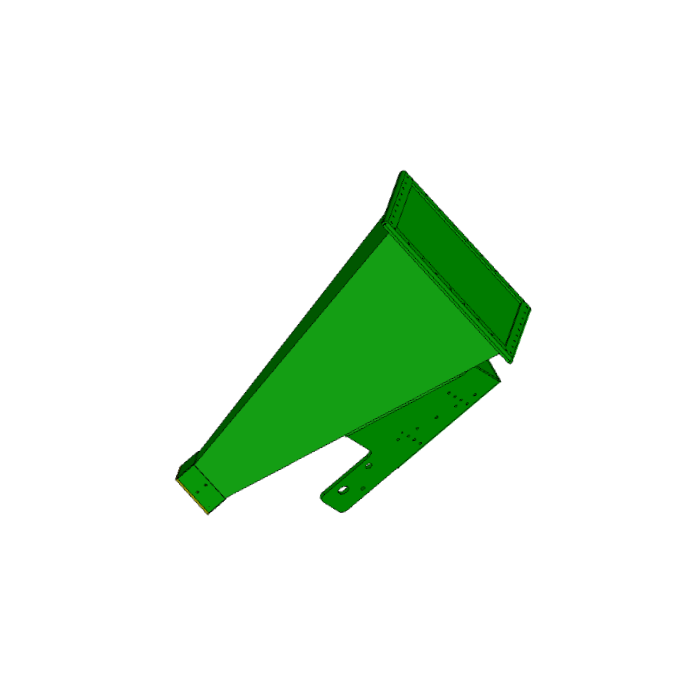

7-18 GHz High Gain Horn Antenna (LHCP)
Model: HL-0718G20-01-NF | 20dBi Gain | Left Polarization | X & Ku Band
The HL-0718G20-01-NF is a high-power, high-gain Horn Antenna operating in the 7 GHz to 18 GHz frequency range. Distinguished by its Left-Hand Circular Polarization (LHCP), it is ideal for specialized applications in satellite communications, radar testing, and polarization-dependent microwave measurements. With a robust gain of 20 dBi and a maximum power handling of 300 Watts, this antenna ensures absolute Signal Integrity for demanding industrial and military test environments.
Technical Specifications
Electrical Performance
| Frequency Range | 7 GHz to 18 GHz (X / Ku Band) |
| Gain | 20 dBi (High Gain Performance) |
| Polarization | Left Polarization (LHCP) |
| Maximum Power | 300 Watts (CW) |
| Connector | N-Female |
Mechanical & Physical

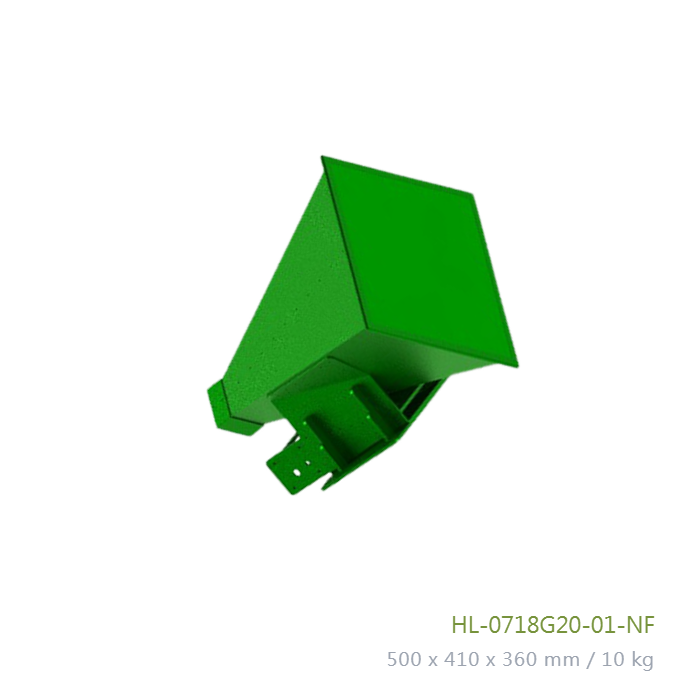

| Model Number | HL-0718G20-01-NF |
| Dimensions (LxWxH) | 500 x 410 x 360 mm |
| Net Weight | 10 Kg (Robust Construction) |
| Antenna Type | High-Power Horn Antenna |
| Application | Radar / Satellite / EMC Testing |
Key Tactical Features
Broadband 7-18 GHz Coverage
Covers critical X-band and Ku-band frequencies, making it versatile for radar, satellite, and professional Signal Management applications.
High Gain 20 dBi
Provides exceptional signal amplification, essential for detecting weak signals or long-range transmission with unwavering Signal Integrity.
Left-Hand Polarization (LHCP)
Crucial for diversity systems and satellite links, providing advanced Signal Security through precise circular polarization control.
High Power 300W Capacity
Engineered to handle high power inputs, suitable for use as a transmitting element in radar or Electronic Protection systems.
Get a Quote / Customization
Contact us for custom mounting brackets or calibration reports for your specialized microwave measurement projects.
