902 to 928 MHz 5dbi PIFA Outdoor Drone Antenna, SMA Female connector
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

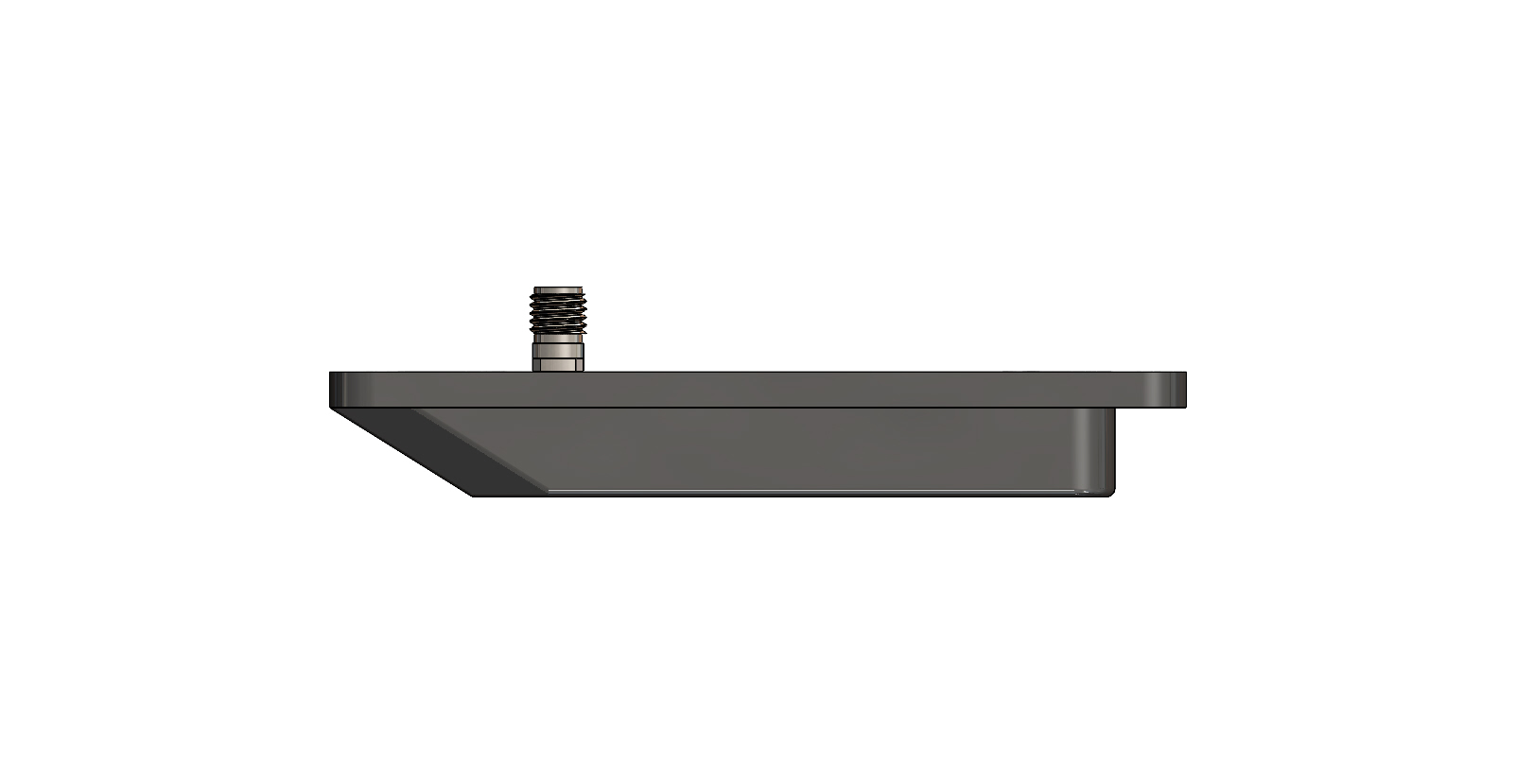

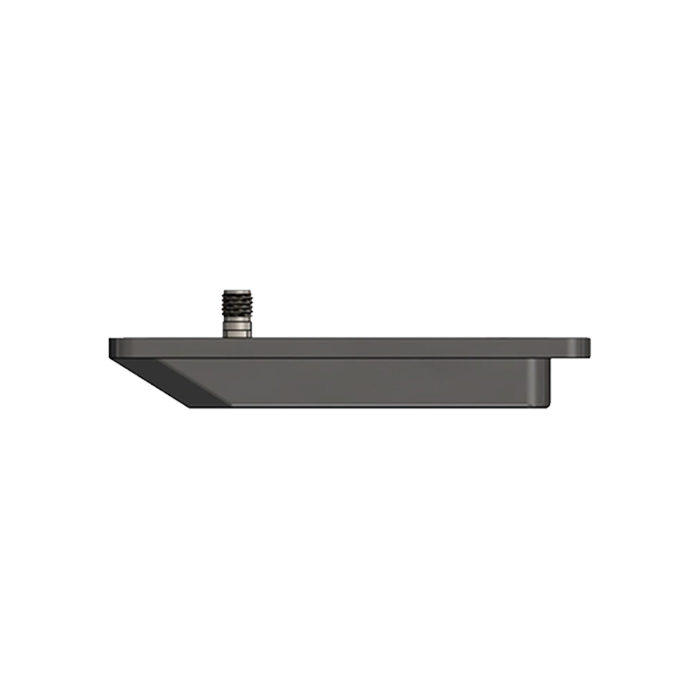

902 to 928 MHz 5dbi PIFA Outdoor Drone Antenna
Model: PF-915M03-SF | 902-928 MHz ISM Band | Directional Patch
The PF-915M03-SF is a compact and efficient Directional Patch Antenna specifically designed for the 902 MHz to 928 MHz spectrum. Ideal for LoRa, RFID, and industrial IoT applications, this antenna focuses signal energy to extend range and maintain link integrity. Its ultra-lightweight and low-profile design make it an excellent choice for professional Sub-GHz Wireless Networks and tactical drone communication where weight is a critical factor.
Technical Specifications
Electrical Performance
| Frequency Range | 902 - 928 MHz (ISM Band) |
| Gain (Max) | 5 dBi |
| Maximum Power | 50 Watts |
| Radiation Pattern | Directional |
| Impedance | 50 Ohm |
| Connector | SMA-Female |
Mechanical & Environmental

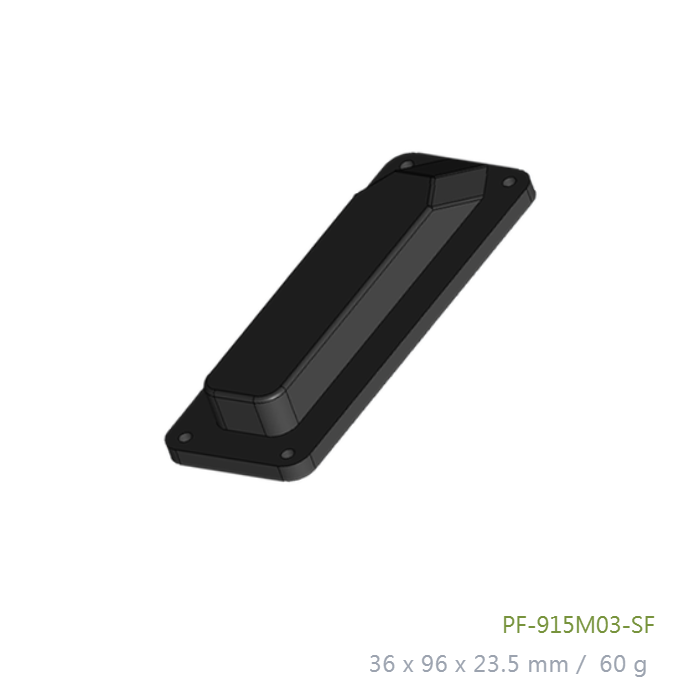

| Dimensions | 36 x 96 x 23.5 mm |
| Antenna Weight | 60 g |
| Antenna Type | Patch / Fixed Directional |
| Operating Temperature | -40°C to +85°C |
| Radome Color | Tactical White / Gray |
Key Operational Features
915 MHz Optimized
Specifically tuned for peak efficiency in North American and Asian LoRa gateways and RFID readers, ensuring superior Signal Integrity.
Directional Energy Focus
Focuses signal energy forward, reducing rear interference and significantly extending the effective communication range for Signal Management.
Ultra-Compact Design
Slim 23.5mm profile and 60g weight offer a discreet presence for indoor industrial environments and mobile drone platforms during Tactical Use.
Industrial Power Handling
Supports 50W transmitters while maintaining stable gain and Signal Security across the entire frequency band.
Get a Quote / Customization
Contact us for custom cable lengths or alternative connector types for your IoT or Drone project.
