Heavy-Duty Mechanical Antenna Mast with Gearbox Winch
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

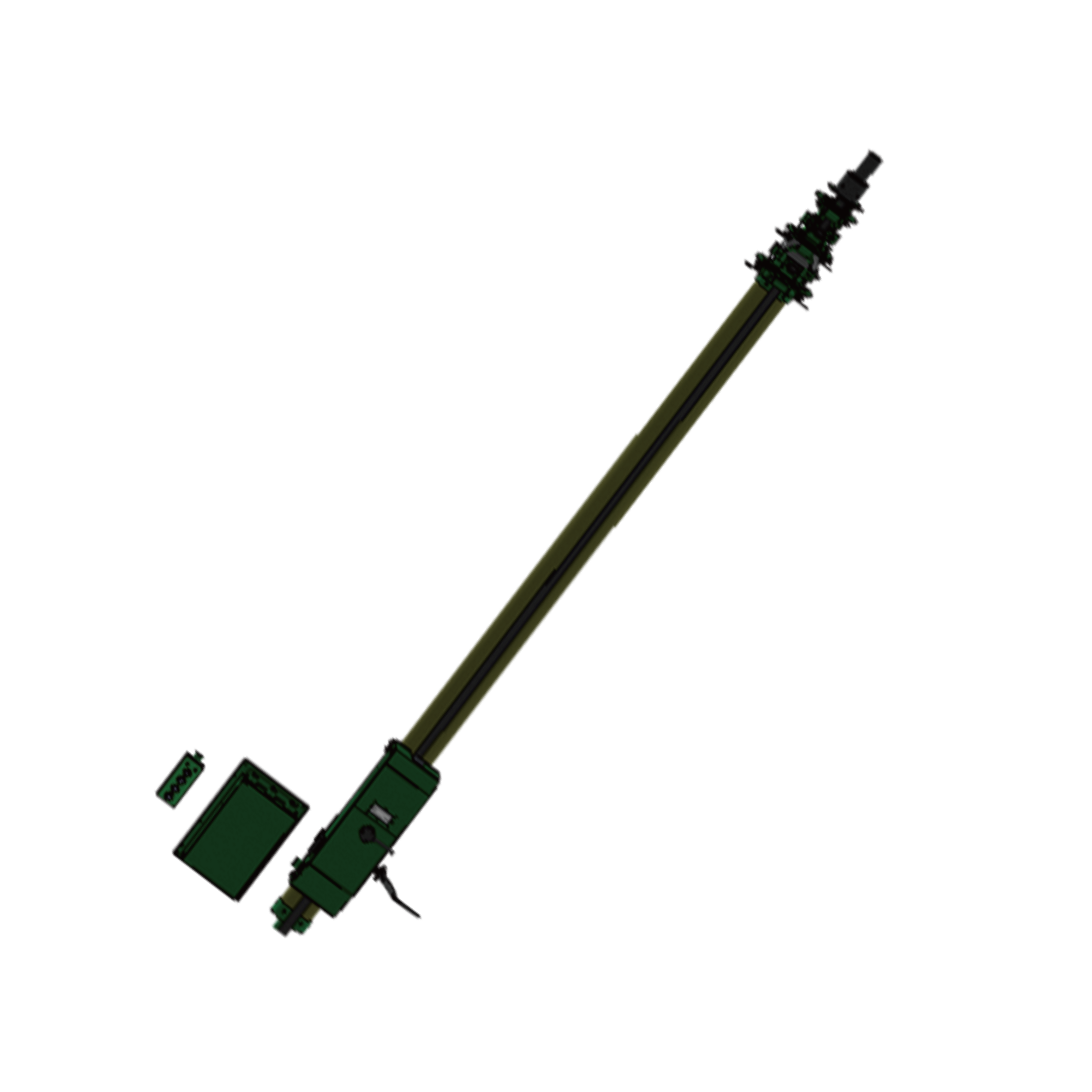

AM-D120-HA135-RA 12m Composite Telescopic Mast
Heavy-Duty Telescopic Mast with Gearbox | 74kg Top Payload
The AM-D120-HA135-RA is a high-performance 12m composite telescopic mast engineered for reliable vertical orientation of communication antenna systems. Designed for reliability in extreme outdoor environments, it provides electric and manual lift control with exceptional structural stability.
Hardware Performance
| Extended System Length | 12.00 m (Mast Length: 11.94 m) |

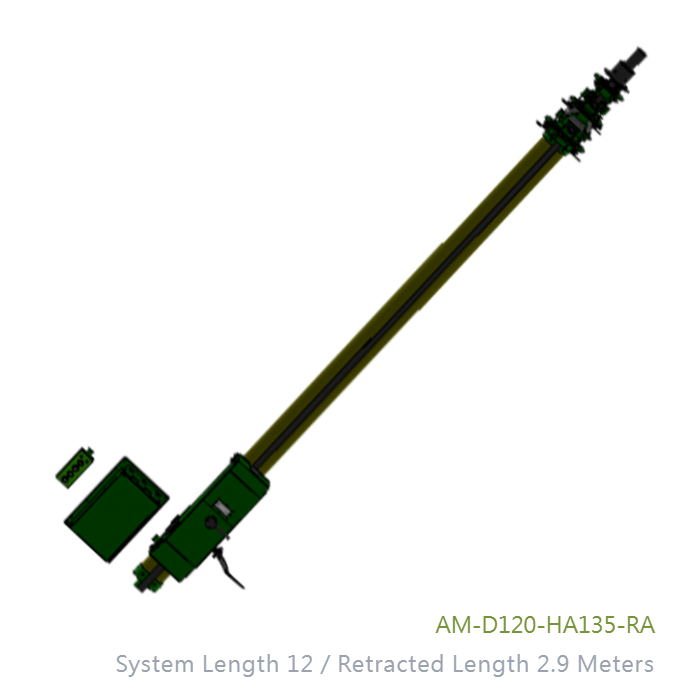

| Retracted Length | 2.90 m (Drawing: 2887 mm) |
| Maximum Top Payload | 74 kg (Vertical) / 570 N (Horizontal) |
| Section Diameters | Bottom: Ø128 mm / Top: Ø71.5 mm (Base Ø135 mm) |
| Number of Sections | 6 Sections (6061-T6 Aluminum * 5 / Fiberglass * 1) |
| Mast Body Weight | 50 kg |
| Wind Survivability | Operational: 120 km/h / Survival: 160 km/h |
Software & Control
| Drive Mechanism | Electric Gearbox & Manual Dual Lift System |
| Motor Specifications | High-Torque Rare Earth Motor with Self-Brake |
| Guying Setup | 4 Guys x 4 Levels (Radius: 8-10 m) |
| Accessories Weight | Gearbox 15kg, Control Box 5kg, Nails 15kg, Ropes 12kg |
Key Design & Feature Highlights
High Precision Control
Equipped with rare earth motor drive and manual dual brake system, ensuring secure positioning and locking at any extension height.
Rugged Reliability
Built with 6061-T6 aluminum and structural anodized powder coating for extreme outdoor weather survival up to 160 km/h wind.
Versatile Integration
Supplied with complete field deployment accessories including electric control box, handheld unit, ground nails, and guy ropes.
High Load Capacity
Engineered with multi-keyway structural tubes supporting heavy top payloads up to 74kg with maximum 0.8 m² wind sail surface area.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
