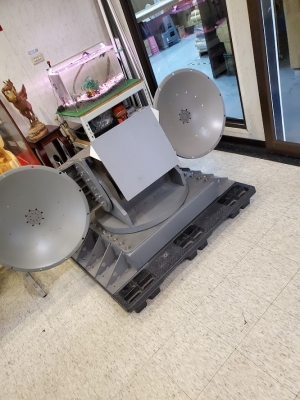

Antenna rise, rotation, and tilt mechanism systems
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

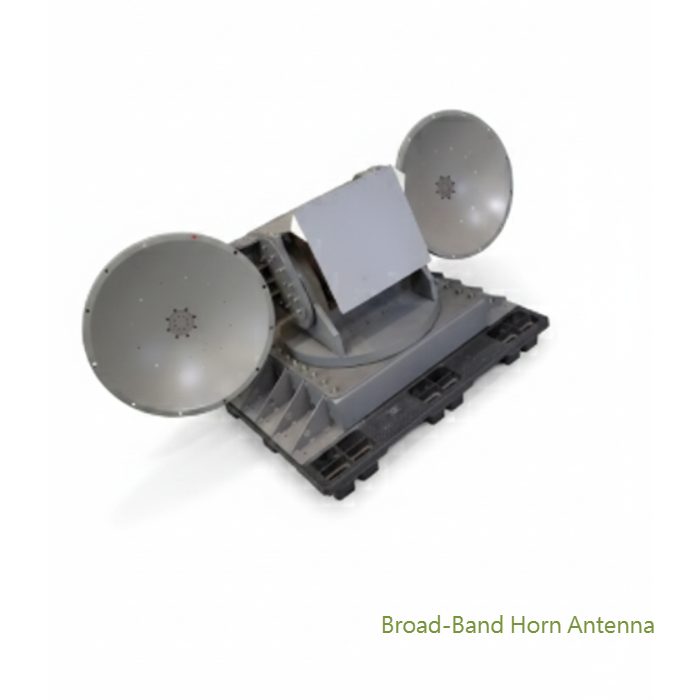

500MHz - 3GHz Broad-Band Horn Antenna
Professional Grade | EMC Testing & Monitoring | Wide-Spectrum Efficiency
This Broad-Band Horn Antenna is designed for high-precision RF measurements and Signal Management across the 500 MHz to 3 GHz spectrum. Ideal for EMI/EMC labs and field surveillance, it offers linear polarization and constant gain characteristics.
High-Gain Dish Antennas & Positioner Systems
Antenna Specification Table
| Dish Model 1 (S/C Band) | 2 GHz - 8 GHz (High Directivity) |
| Dish Model 2 (X/Ku Band) | 8 GHz - 18 GHz (Precision Focus) |
| Horn Model (Wideband) | 500 MHz - 3 GHz |
| Mechanism Axes | Rise (Z-axis), Rotation (Azimuth), Tilt (Elevation) |
| Compliance | MIL-STD Standards Compliant |
Key Mechanism Features
3-Axis Automated Tracking
Advanced pedestal system supporting rise, rotation, and tilt functions for precise antenna pointing and signal tracking.
High-Power Signal Dominance
Designed to integrate with high-power transmitters for signal management and electronic defense applications.
Robust Mechanical Survival
Heavy-duty construction capable of supporting large dish arrays in extreme environmental conditions and high winds.
VHF to Ku-Band Versatility
Compatible with a wide range of radiators, from broadband horns to high-frequency parabolic reflectors.
Custom Pedestal & Antenna Solutions
Contact us for custom tracking software integration or specialized frequency range adaptations.
