330MHz to 8GHz 10dBi High Power Log-Periodic Antenna (IP-03M08GA-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

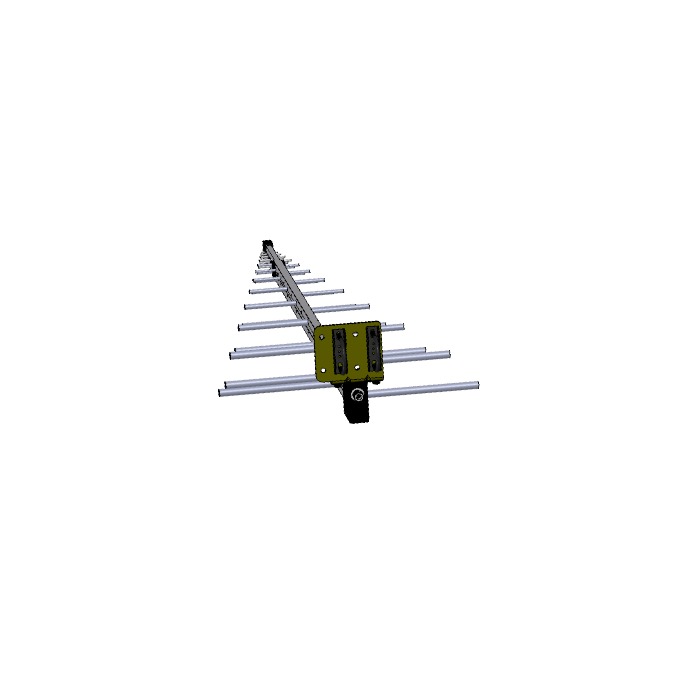

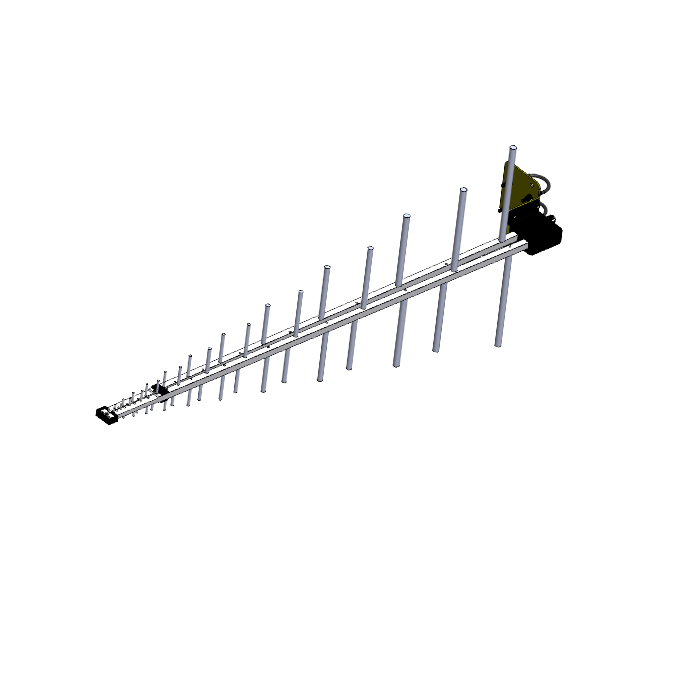

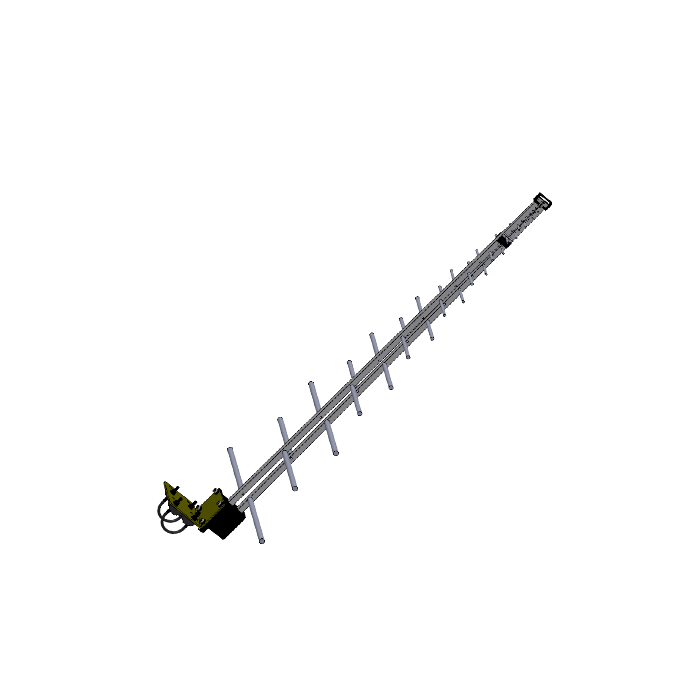

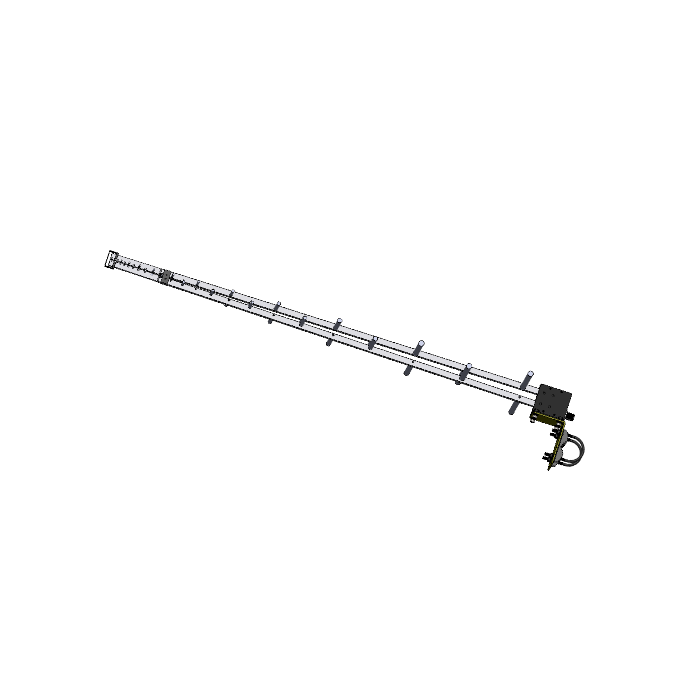

330MHz to 8GHz 10dBi High Power Log-Periodic Antenna
Model: IP-03M08GA-NF | High Power Design | N-Female Connector
The IP-03M08GA-NF is an industrial-grade wideband log-periodic directional antenna engineered for wide-spectrum coverage from 330MHz to 8GHz. Delivering a stable 10 dBi gain across the spectrum, this antenna is optimized for RF testing, spectrum monitoring, and advanced communication operations. Its robust stainless steel mounting assembly ensures high-degree structural integrity and mechanical survival in extreme environments.
Hardware Performance
| Dimensions | H 67.00 x W 358.80 x L 930 mm |
| Weight | 1966.78 g |
| Connector | N-Female |
| Mounting Bracket | MO-L1 (AISI 304 Stainless Steel) |
| Antenna Length (Body) | 917 mm (Boom: 897 mm) |
| Hardware Material | AISI 304 Stainless Steel (Black Coated) |
Software & Control
| Frequency Range | 330 MHz to 8 GHz |

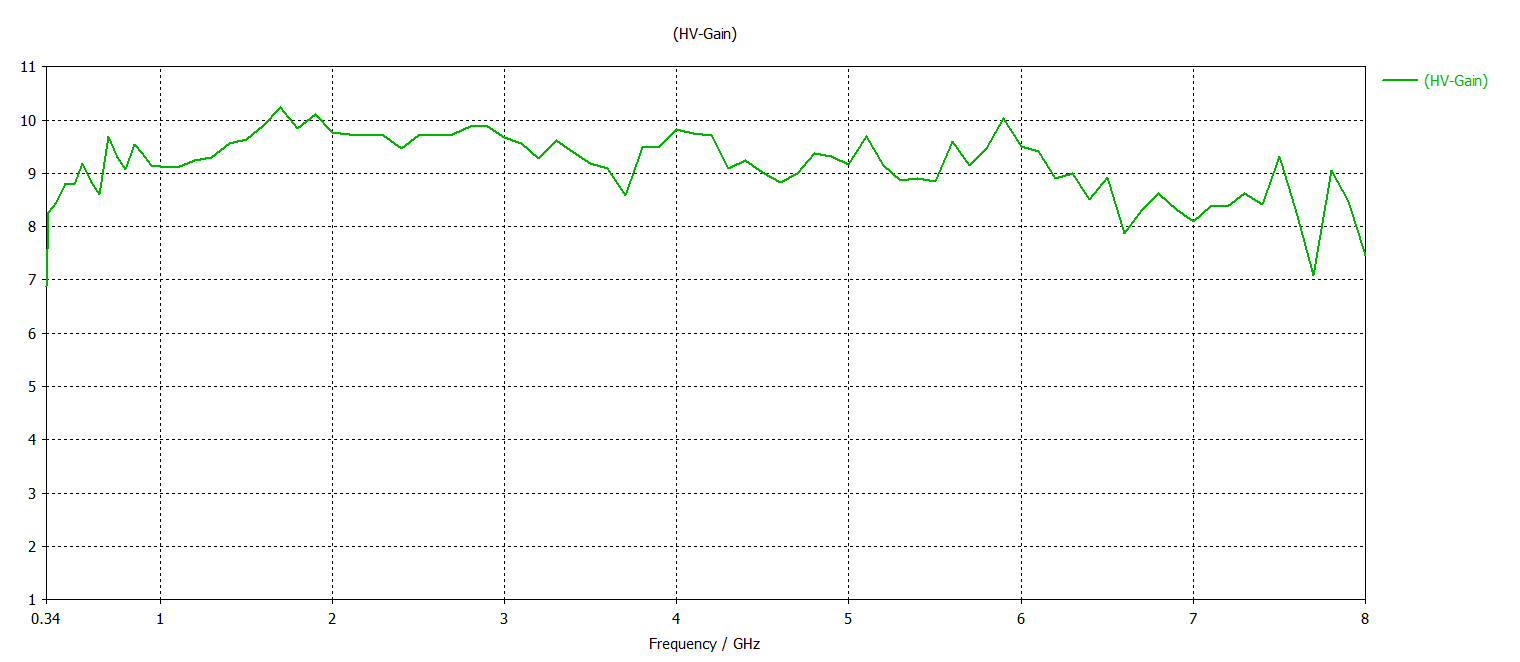

| Gain | 10 dBi |
| Antenna Type | High Power Log-Periodic |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Delivers stable wideband directional gain up to 10dBi across 330MHz to 8GHz, ensuring optimal directional radiation and measurement precision.
Rugged Reliability
Constructed with corrosion-resistant elements and AISI 304 stainless steel mounting hardware for long-term outdoor survival.
Versatile Integration
Features an industry-standard N-Female connector and versatile MO-L1 bracket for seamless integration on test masts and positioners.
High Load Capacity
Engineered with a reinforced boom and element layout, providing outstanding mechanical stability under challenging operating conditions.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
