400MHz to 8GHz 10dBi High Power Log-Periodic Antenna (IP-04M08GA-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification

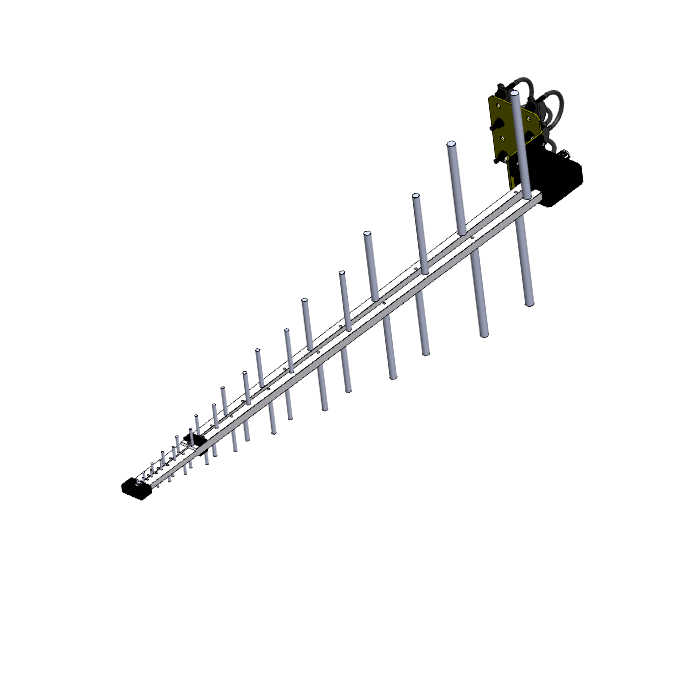

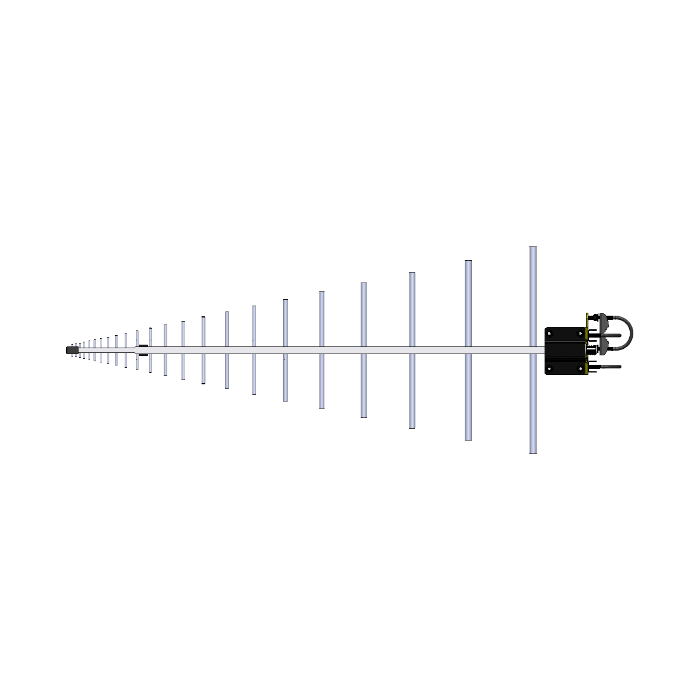

IP-04M08GA-NF High Power Log-Periodic Antenna
400MHz to 8GHz Directional Antenna | N-Female Connector
The IP-04M08GA-NF is a high-performance wideband log-periodic directional antenna operating across 400MHz to 8GHz. Delivering an optimized directional gain up to 10.1dBi and strong front-to-back isolation up to 27dB, it provides superior wideband radiation characteristics, directional accuracy, and structural integrity across demanding RF measurement and industrial communication environments.
Hardware Performance

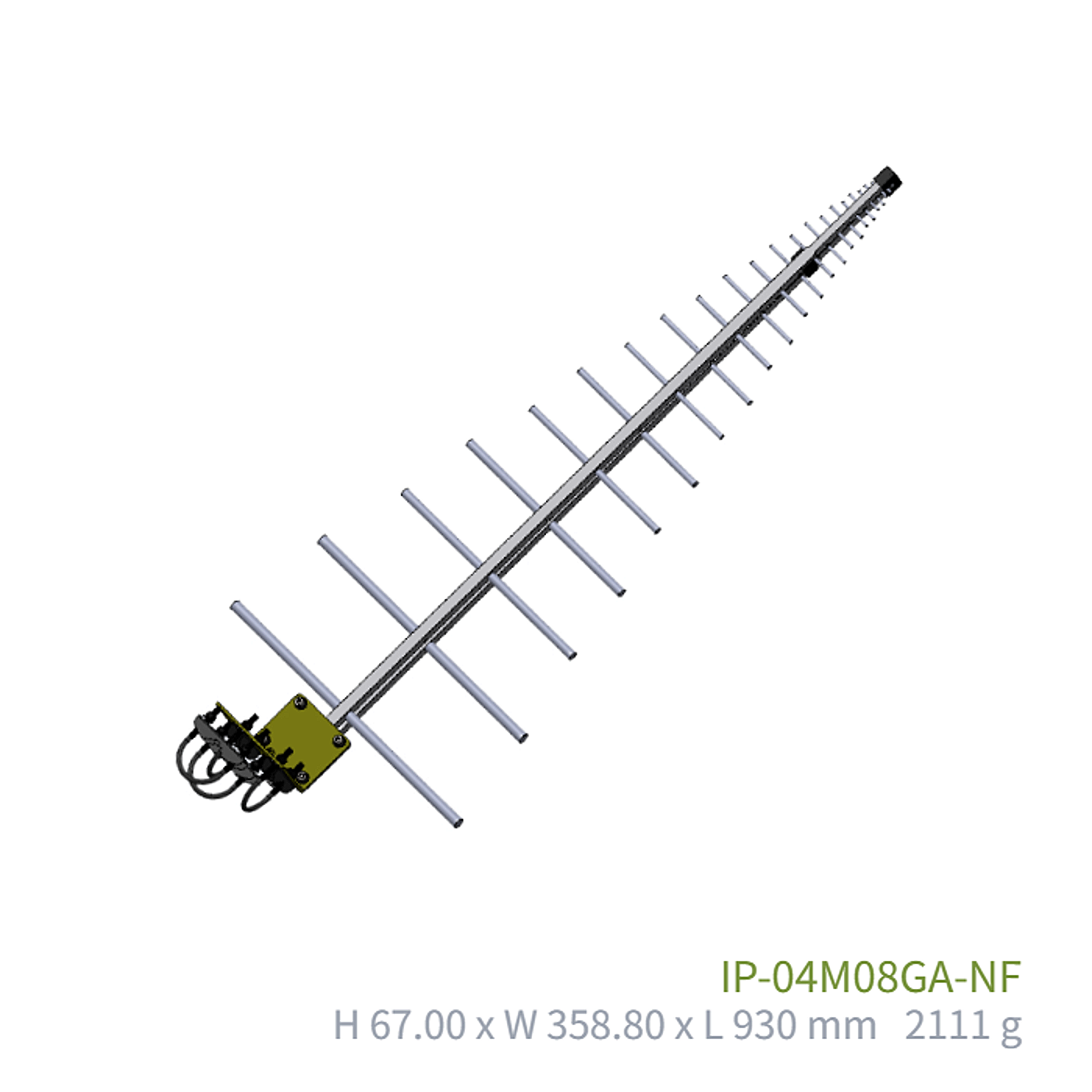

| Dimensions | H 67.00 x W 358.80 x L 930 mm |
| Weight | 2111.35 g |
| Connector | N-Female |

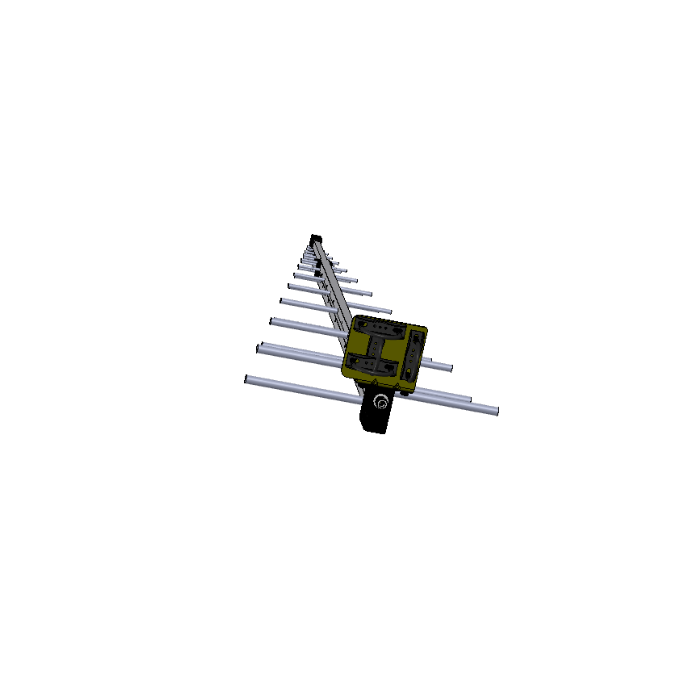

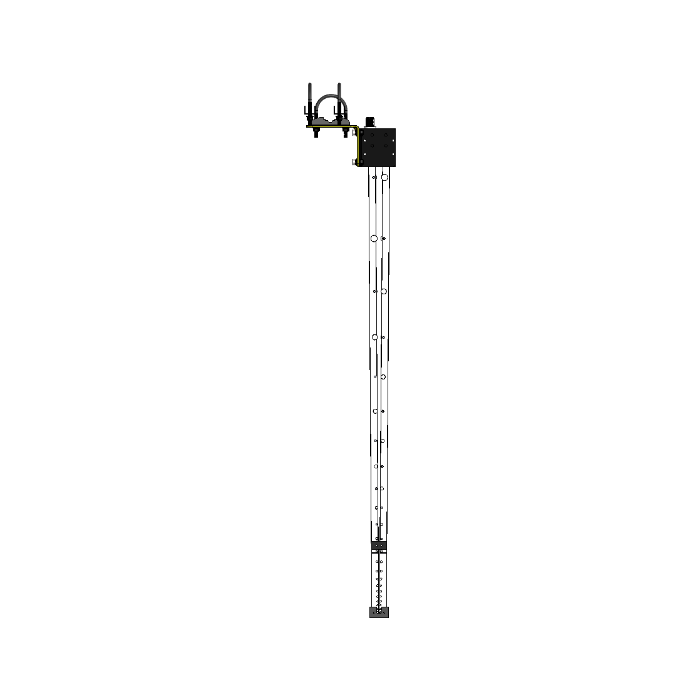

| Mounting Bracket | MO-L1 (AISI 304 Stainless Steel) |
| Antenna Length (Body) | 917 mm (Boom: 897 mm) |
| Hardware Material | AISI 304 Stainless Steel (Black Coated) |
Software & Control
| Frequency Range | 400 MHz to 8 GHz |

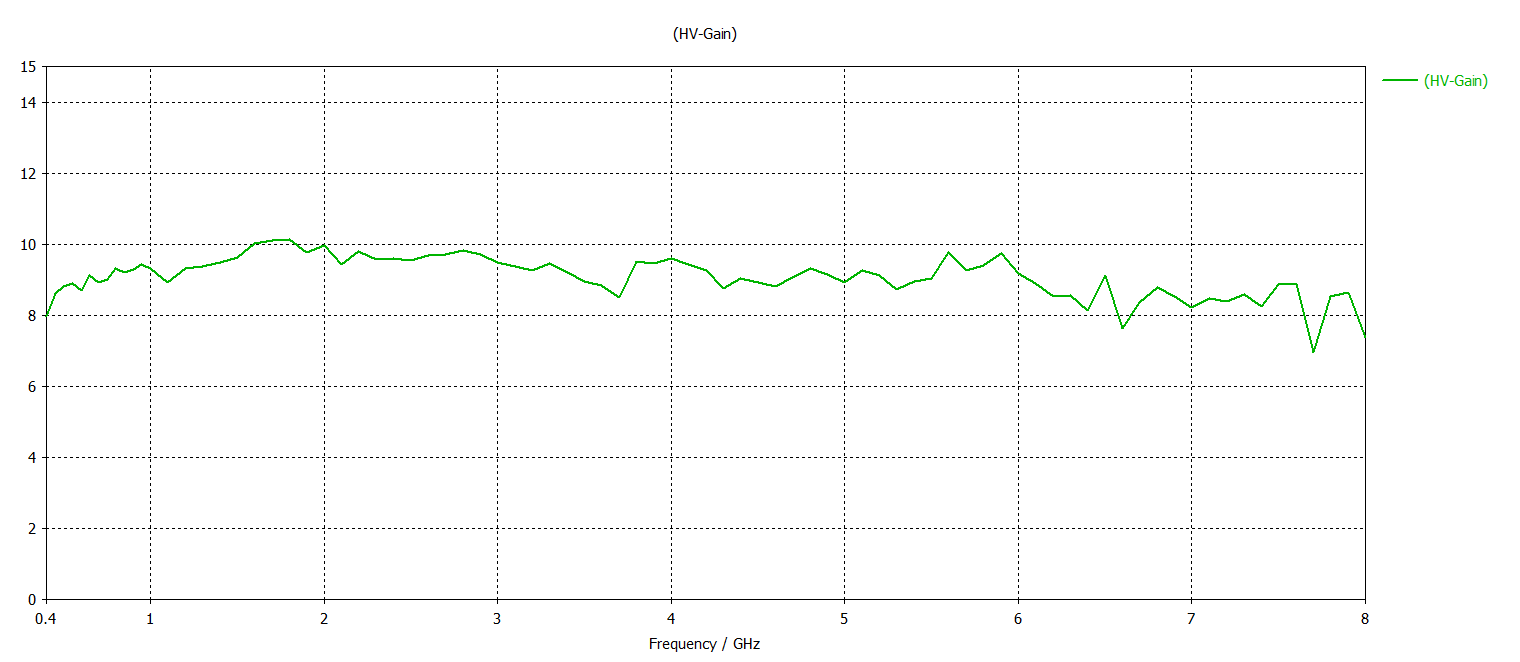

| Gain (Actual Curve) | 6.8 to 10.1 dBi (Nominal: 9 dBi Avg) |

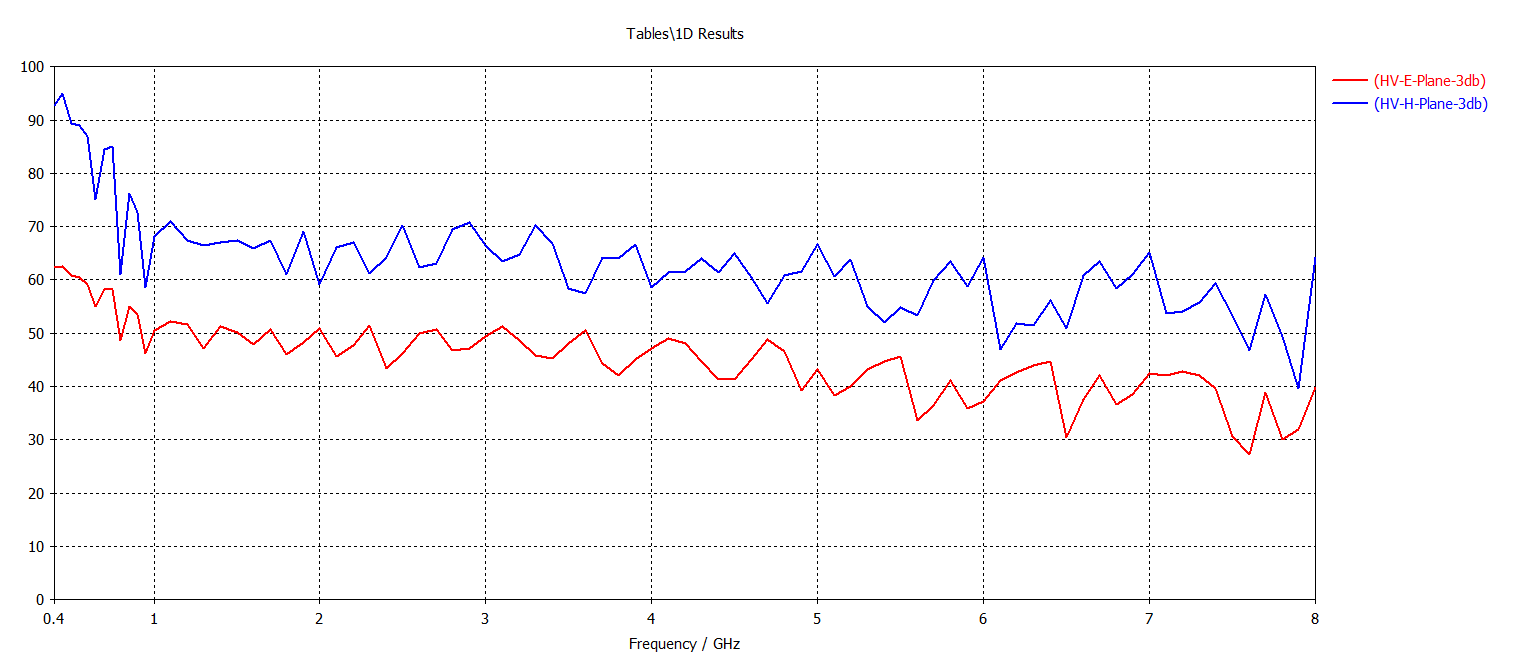

| -3dB Beamwidth (E-Plane) | 27° to 62° |
| -3dB Beamwidth (H-Plane) | 39° to 95° |

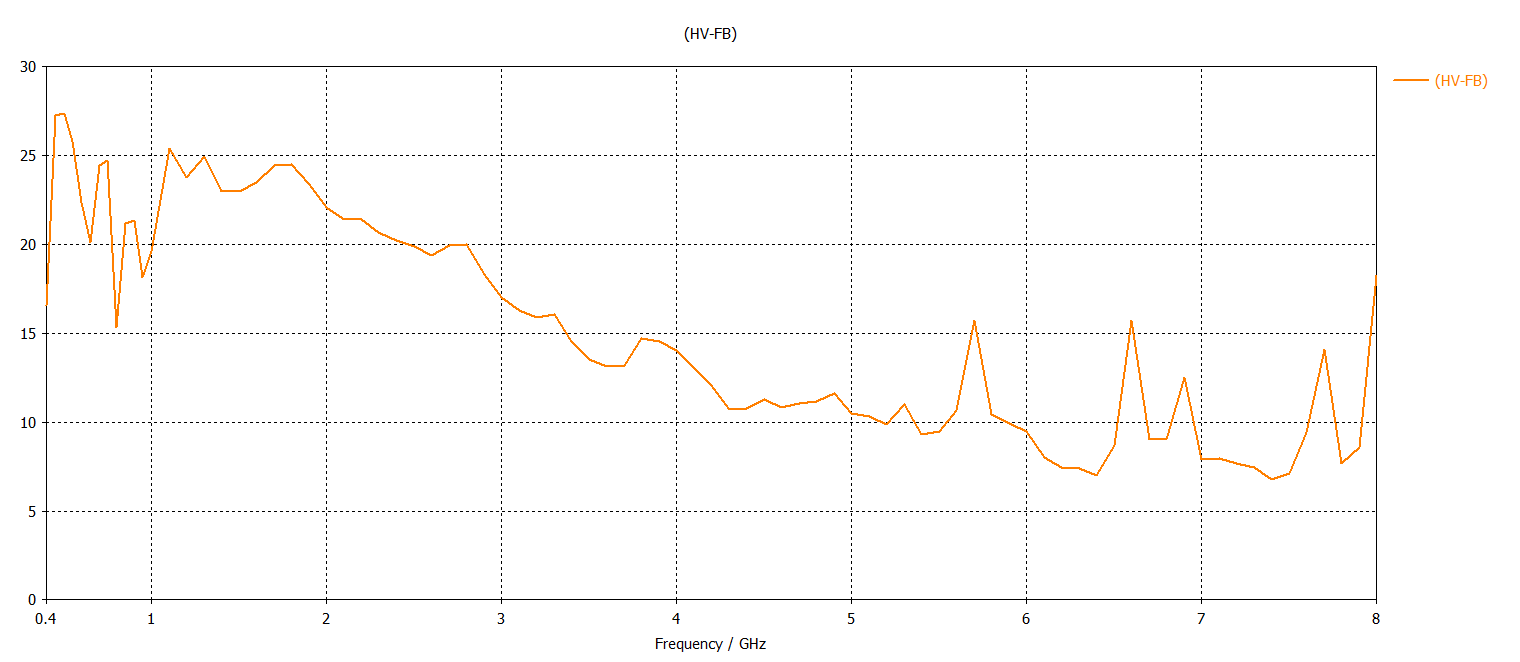

| Front-to-Back Ratio (F/B) | 7 to 27 dB (15 to 25 dB typical below 3GHz) |
| Antenna Type | High Power Log-Periodic |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Maintains stable wideband directional gain from 6.8 to 10.1dBi across 400MHz to 8GHz, ensuring optimal radiation patterns and measurement repeatability.
Rugged Reliability
Constructed with corrosion-resistant elements and AISI 304 stainless steel mounting hardware for long-term outdoor survival.
Versatile Integration
Features an industry-standard N-Female connector and versatile MO-L1 bracket for seamless integration on test masts and positioners.
High Load Capacity
Engineered with a reinforced boom and element layout, providing outstanding mechanical stability under challenging operating conditions.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
