1.95GHz to 2.15GHz 14.5dBi High Power Panel Directional Outdoor N-Female Antenna (MP-2021G14A-NF)
Rugged & Unmanned FT-RF Global
10 out of
10
-
Description & Specification
1.95GHz to 2.15GHz 14.5dBi High Power Panel Directional Outdoor N-Female Antenna
Model: MP-2021G14A-NF | High Power Design | N-Female Connector

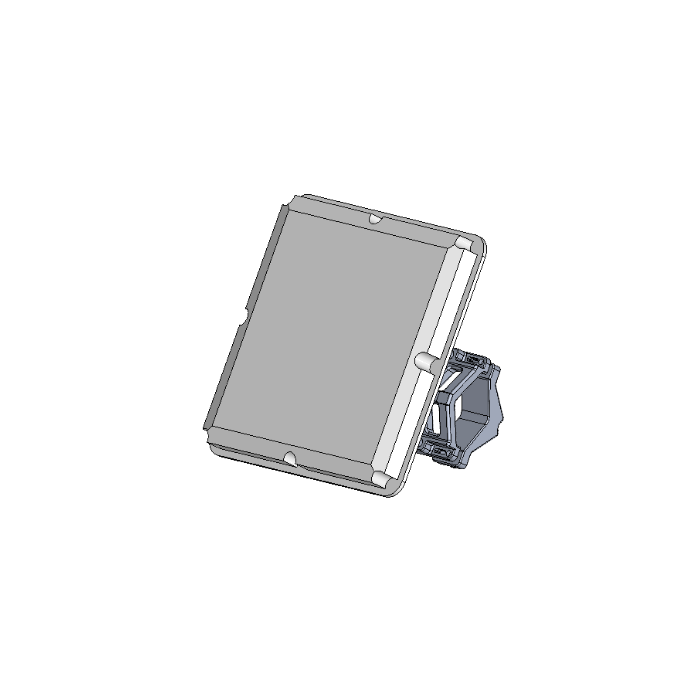

The MP-2021G14A-NF is a high-performance 1.95GHz to 2.15GHz panel directional outdoor antenna engineered for wireless communication and network coverage. Delivering a robust 14.5 dBi gain with narrow E-plane and H-plane beamwidths, this antenna ensures precise directional signal propagation. Built with an aluminum die-casting mounting bracket (MO-Q1-B) and IP67 waterproof rating, it guarantees exceptional mechanical reliability in demanding outdoor environments.
Hardware Performance
| Dimensions | H 273 x W 273 x L 46.5 mm |
| Weight | 1450 g |
| Connector | N-Female |

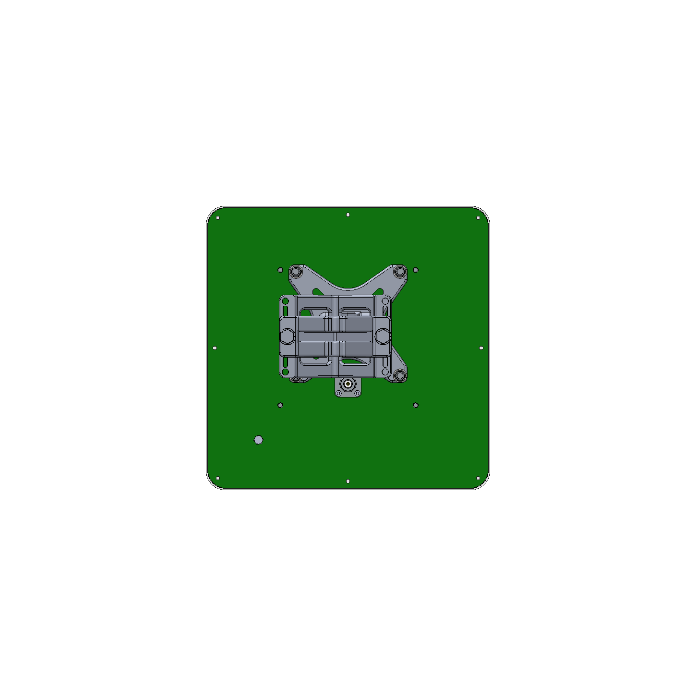

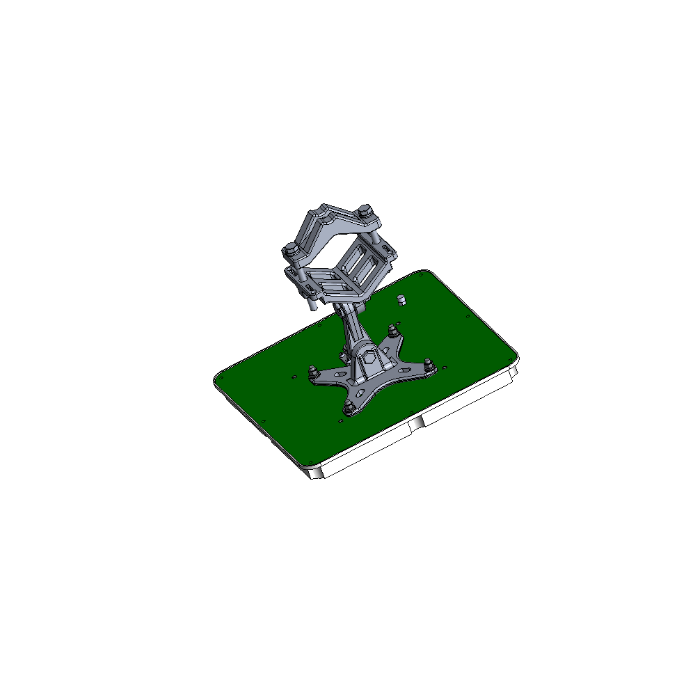

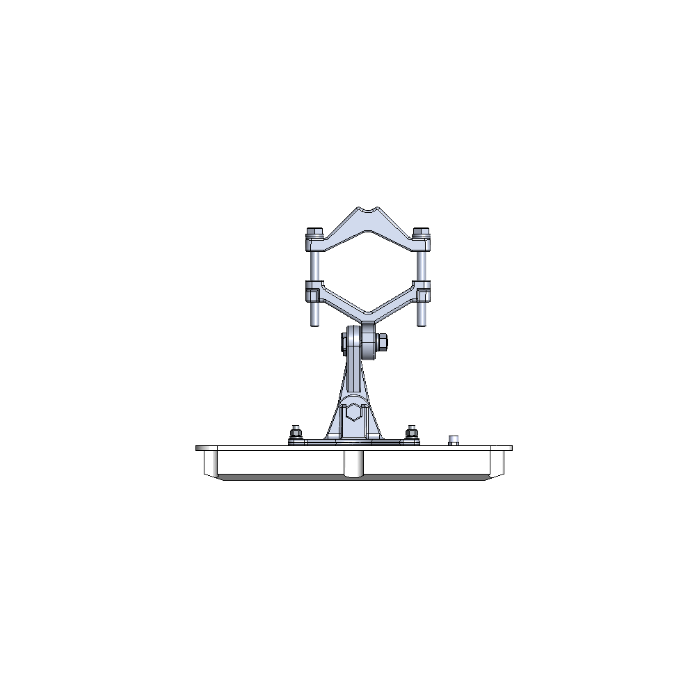

| Mounting Bracket | MO-Q1-B (Aluminum Die Casting) |

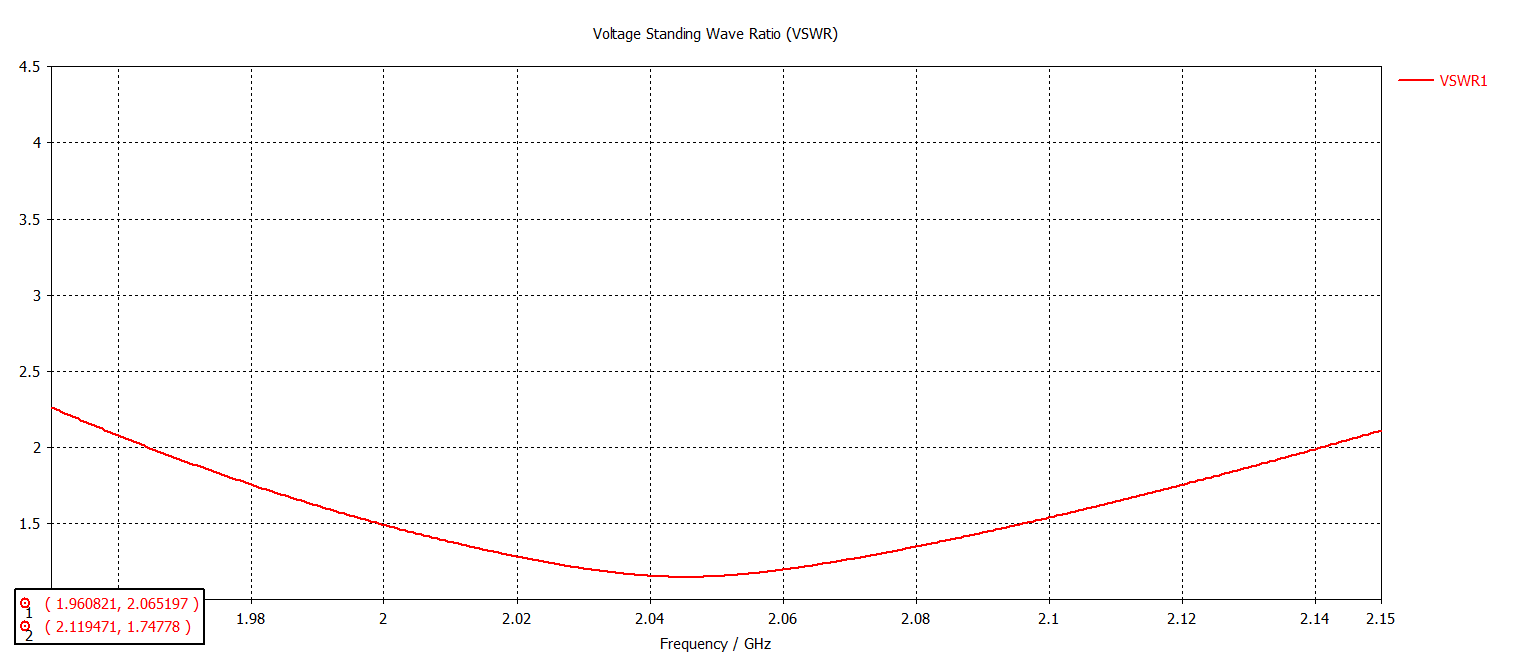

| V.S.W.R. | < 2.5:1 |
| Waterproof Rating | IP67 |
Software & Control
| Frequency Range | 1.95 GHz to 2.15 GHz |

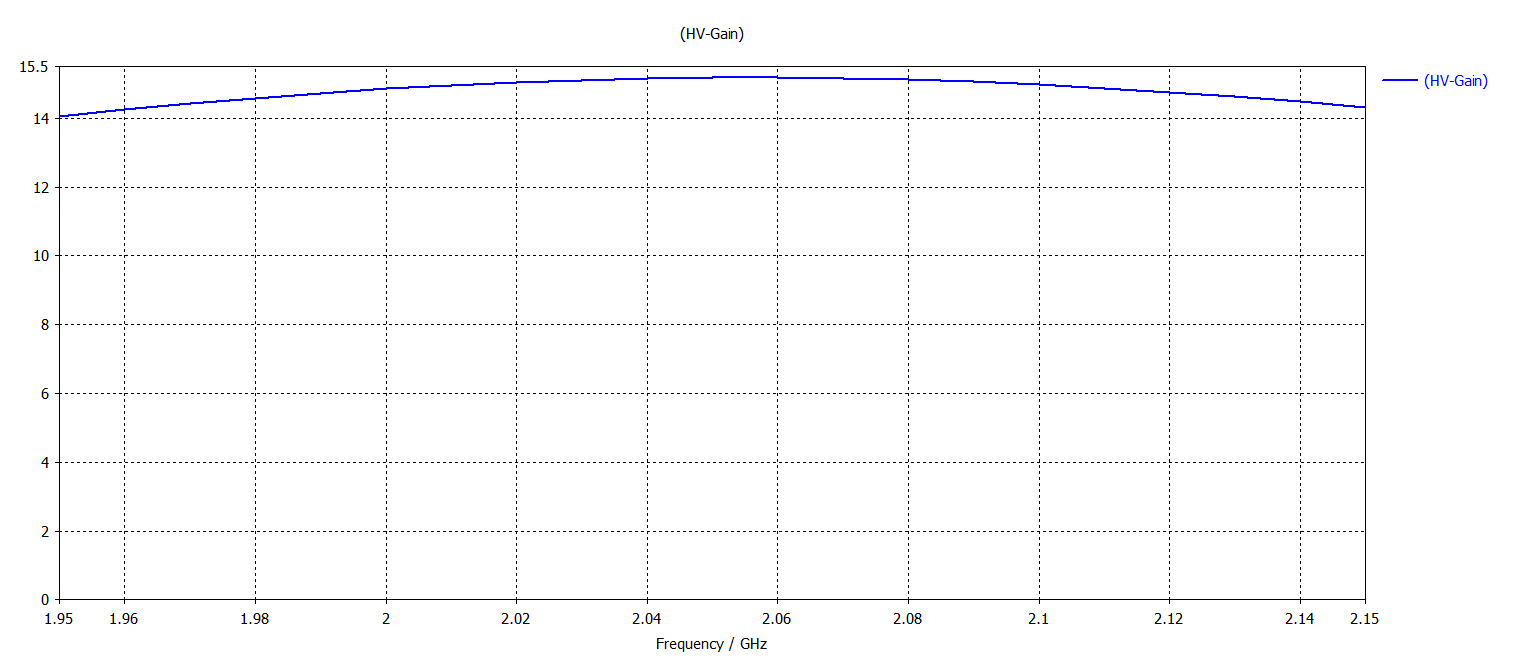

| Gain (Min) | 14.5 dBi |
| AVG Power | 250 W |
| -3dB Beamwidth (H-Plane) | 30° |
| -3dB Beamwidth (E-Plane) | 31° |
| Origin | Made in Taiwan |
Key Design & Feature Highlights
High Precision Control
Delivers a stable directional gain of 14.5dBi across the 1.95GHz to 2.15GHz spectrum, ensuring exceptional signal focusing and long-range link quality.
Rugged Reliability
Constructed with durable aluminum die-casting and IP67 waterproof protection, providing superior structural strength in severe outdoor environments.
Versatile Integration
Features an industry-standard N-Female connector and the robust MO-Q1-B mounting bracket for flexible installation and angle adjustment.
High Load Capacity
Engineered to withstand high power up to 250W with an optimized V.S.W.R. (< 2.5:1), ensuring reliable performance under heavy operational demands.
Contact FT-RF Engineering Division
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
