N-male to N-female Coaxial Adapter Spring (L83 )
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

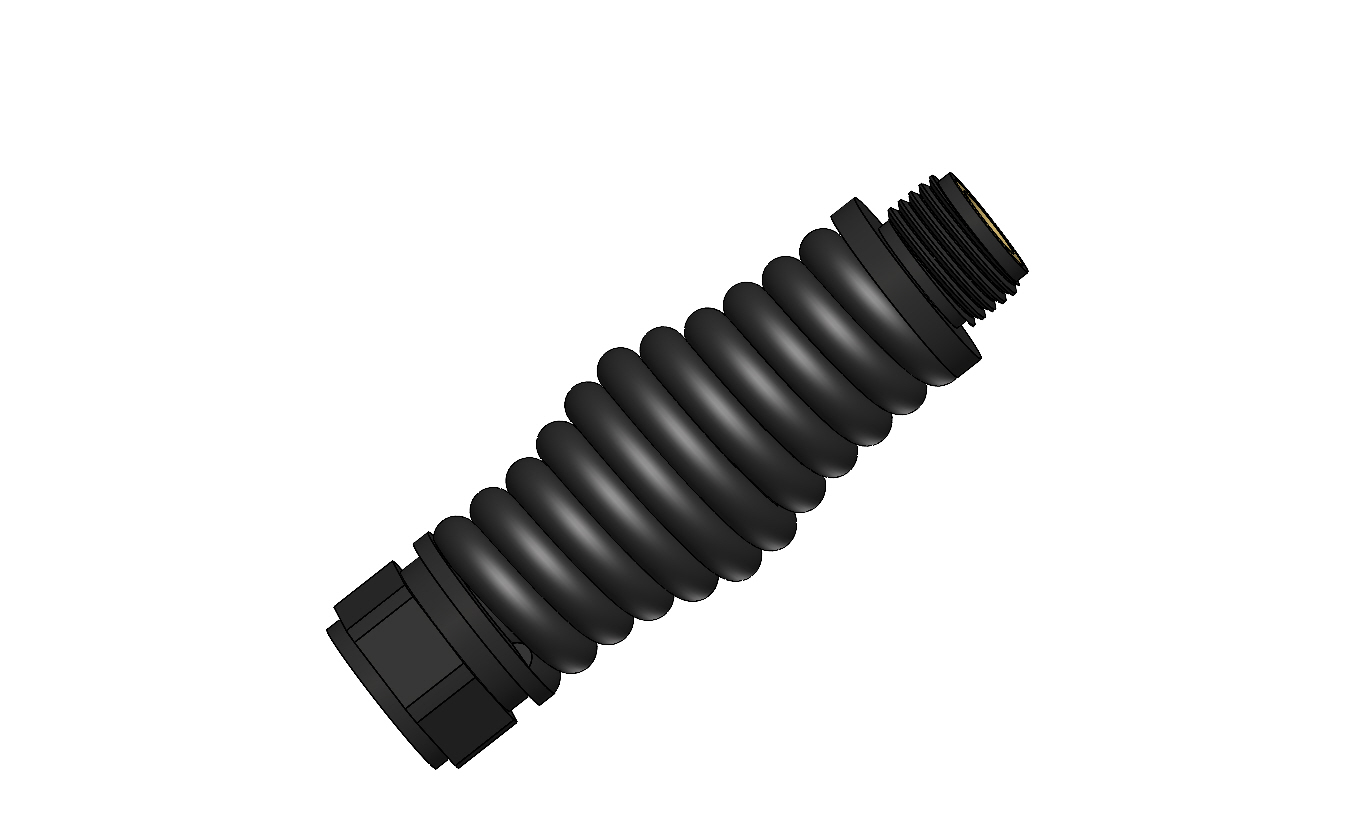

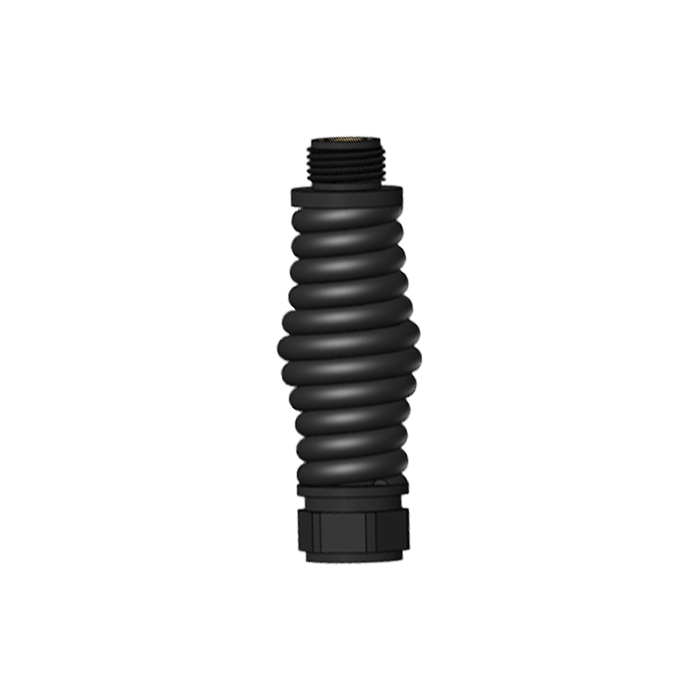

N-male to N-female Coaxial Adapter Spring
Broadband DC-6GHz | 300W Power | 5mm Wire Heavy Duty | Chrome-Plated Black
The DC-6 GHz Heavy Duty Antenna Spring Mount is a high-performance mechanical interface designed to protect vehicular antennas from damage caused by impacts and vibrations. Unlike standard springs, this unit features a precision internal coaxial design that maintains excellent RF characteristics up to 6 GHz, supporting 5G, Wi-Fi, and Tactical Use. Constructed with robust 5mm wire and finished in Chrome-Plated Black, it handles 300W power while ensuring absolute Signal Integrity.
Core Capabilities & Functions
Electrical Performance
| Frequency Range | DC to 6 GHz (Broadband) |
| V.S.W.R | ≤ 1.5 : 1 |
| Maximum Power | 300 Watts (CW) |
| Connectors | N-Male (Bottom) to N-Female (Top) |
Mechanical & Material

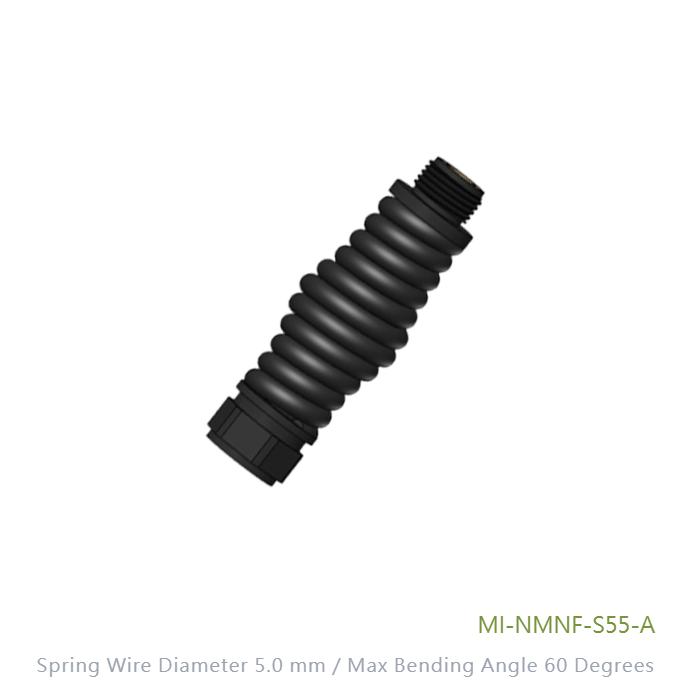

| Spring Wire Diameter | 5.0 mm (Heavy Duty) |
| Max Bending Angle | 60 Degrees |
| Material / Finish | Stainless Steel / Chrome-Plated Black |
| Appearance | Tactical Matte Black (Low Reflection) |
Key Operational Features
DC-6 GHz High Bandwidth
Advanced internal design minimizes insertion loss, allowing seamless Signal Management for modern 5G and high-frequency systems.
Heavy Duty 5mm Build
Built with extra-thick 5mm wire to support heavy, high-gain antennas without sagging, ensuring consistent Signal Security.
60° Impact Flexibility
Provides essential flexibility to absorb shocks from obstacles, acting as a rugged Protection Operations barrier for the antenna unit.
300W CW Power Support
Rugged construction handles extreme power loads, making it suitable for high-power transmission and Electronic Protection missions.
Get a Quote / Customization
Contact us for bulk orders, custom connector configurations, or specialized mounting adapters for your tactical vehicle.
