1.15 to 1.6GHz 12dbi RHCP Helical Directional Outdoor NFemale Antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

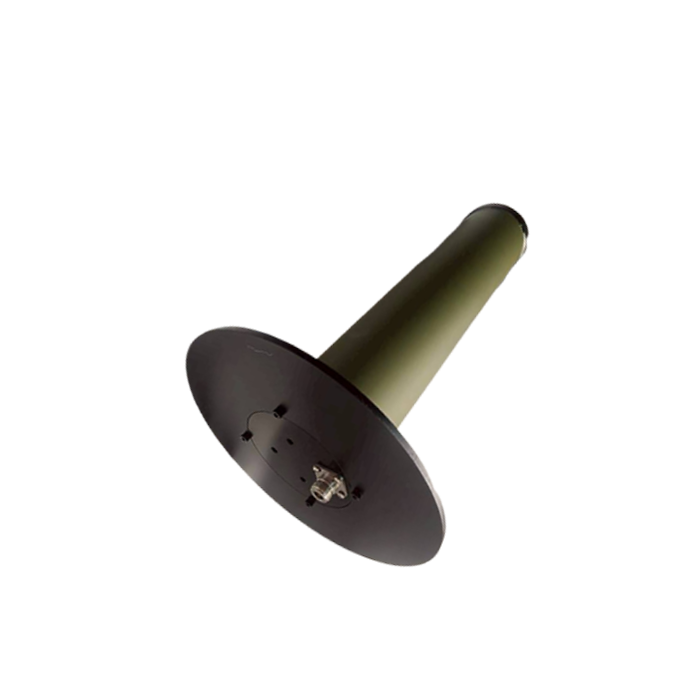

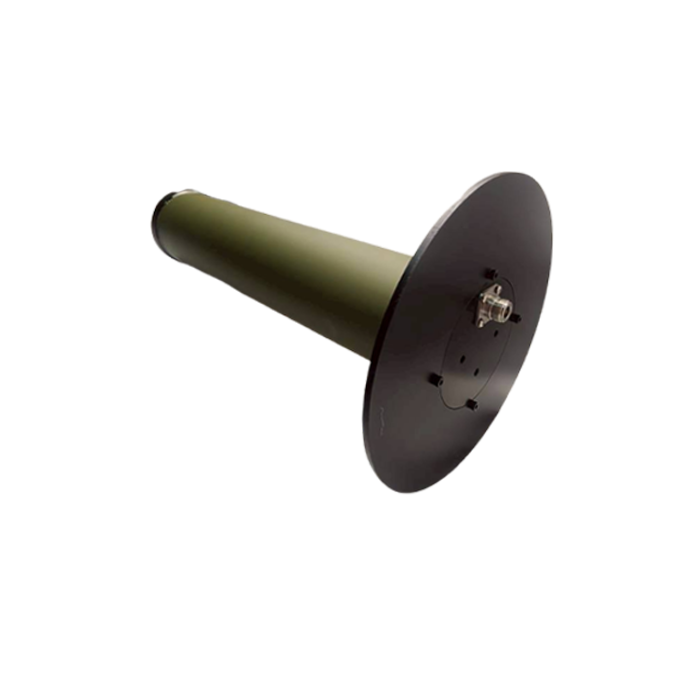

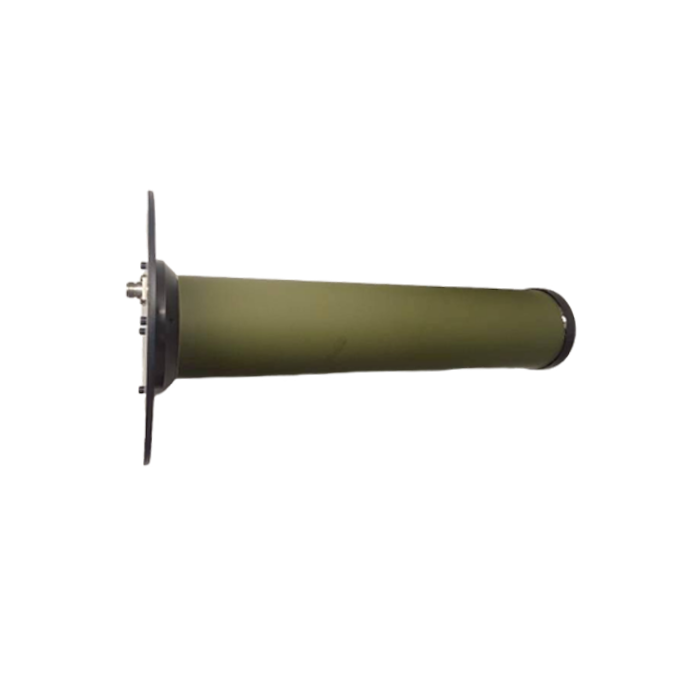

1.15GHz to 1.6GHz 12dBi RHCP Helical Directional Antenna
Military Grade RH-1400M12-NF | 300W Power | Outdoor Use
The RH-1400M12-NF is a high-performance Helical Directional Antenna engineered for military applications, including vehicle omnidirectional jammer systems. Delivering a stable 12 dBi gain across the 1.15-1.6 GHz spectrum, this antenna offers superior performance and rugged structural integrity for demanding outdoor environments.
Technical Specifications
Electrical Performance
| Frequency Range | 1.15 GHz to 1.6 GHz |
| Gain | 12 dBi |
| Polarization | RHCP (Circular) |
| VSWR | < 2.5 |
| Max Power | 300W |
| Impedance | 50 Ohm |
| Connector | N-Female |
Mechanical & Environmental Specs

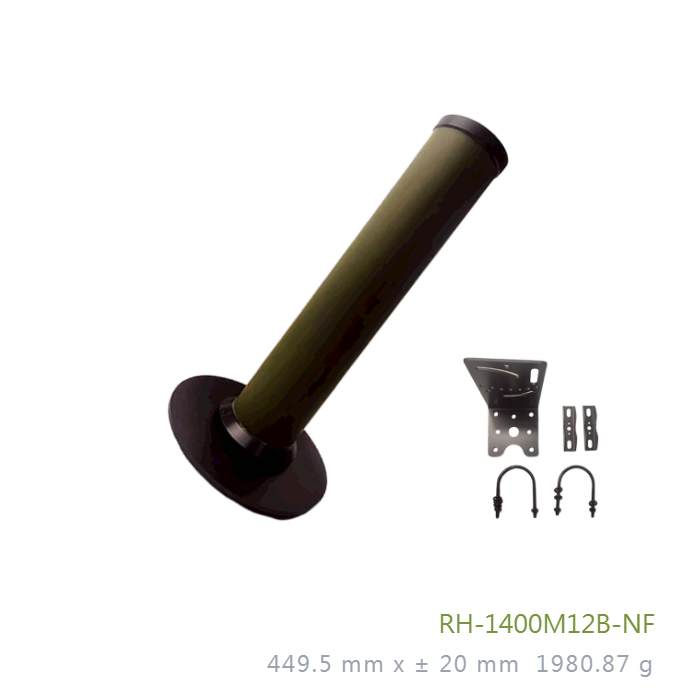

| Dimensions | 449.5 mm ± 20 mm |
| Weight | 1980.87 g |
| Operating Temp | -10°C to +70°C |
| Storage Temp | -40°C to +80°C |
Professional Features
Military Grade Reliability
Specifically designed for mission-critical operations and military use, complying with high quality standards.
High Power Handling
Engineered for robustness, capable of handling up to 300W of power, suitable for signal jamming and defense systems.
RHCP Helical Design
Utilizes Right-Hand Circular Polarization for superior signal transmission and reception in specialized outdoor scenarios.
Compliance Certified
Manufactured under ISO 9001:2015/14001:2015 standards, and is fully RoHS compliant with FCC/CE certifications.
Get a Quote / Customization
Contact us for professional integration support or custom requirements. Made in Taiwan.
