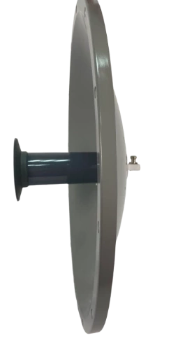

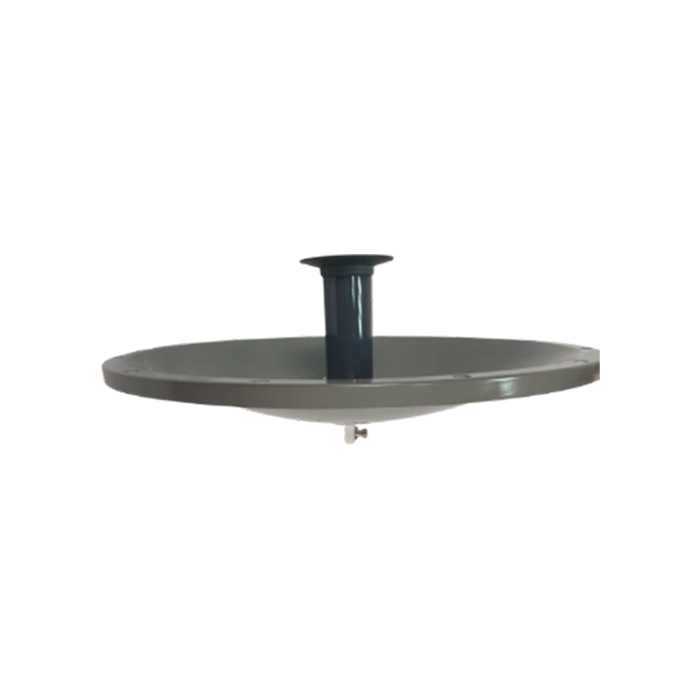

10 GHz to 10.2 GHz High Gain Parabolic Dish Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
Application
- Dish antenna 10GHz to 10.2GHz Frequency band N-Female
- High gain antenna for point to point
- receive television broadcasts or other electronic communication signals.
- Wifi
Feature

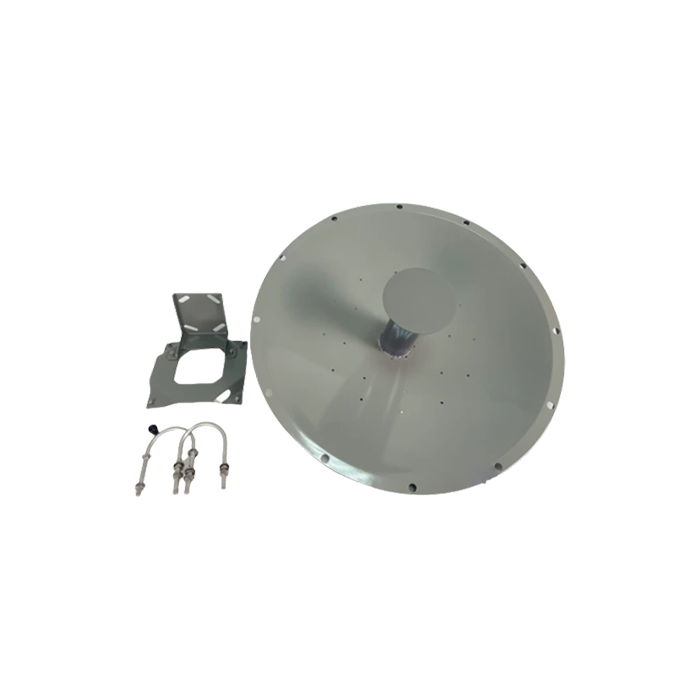

- Includes tilt and swivel mast mount kit
- Superior Performance
- Good appearance design
- Support is up and down or so to adjust
- Suitable for military using purpose
|
Frequency Range |
10GHz to 10.2GHz |
|
V.S.W. R |
<2:1 |
|
Antenna Type |
Parabolic |
|
Radiation |
Directional |
|
Gain (AVG) |
33 dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
200 Watts |
|
Vertical Beamwidth |
Deg |
|
Horizontal Beamwidth |
Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Dish |
|
Connector |
N-Female |
|

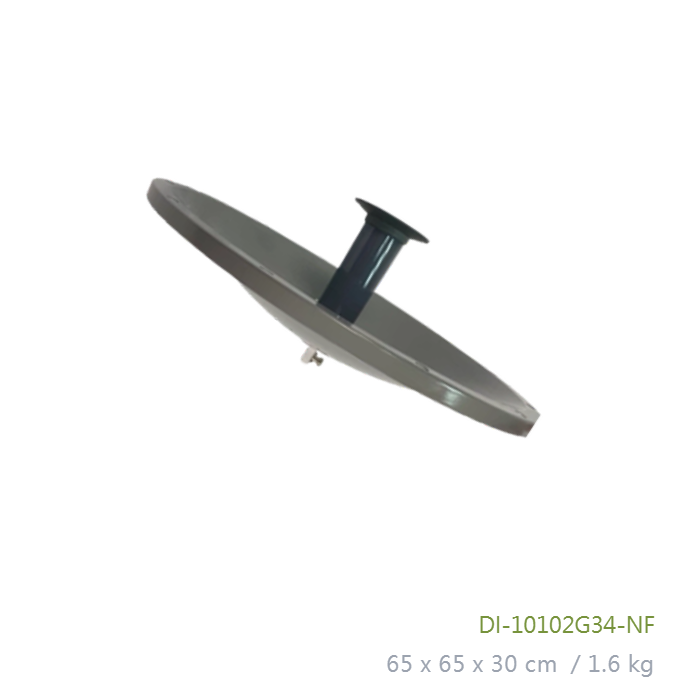

Dimension (WxLxH) |
65x65x30cm |
|
Antenna Weight (N.W) |
1.6Kg |
|
Antenna Accessories |
1.6Kg |
|
Application |
Indoor/ Outdoor |
|
Material |
Aluminum |
|
Radome |
Glassfiber |
|
Antenna Mounting |
Stainless steel U-Bolts |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-10 to +60 |
|
Operating Humidity |
10%~70% non-condensing |
|
Storage Humidity |
5%~50% non-condensing |
|
Safety, Emission and other |
RoHS |
