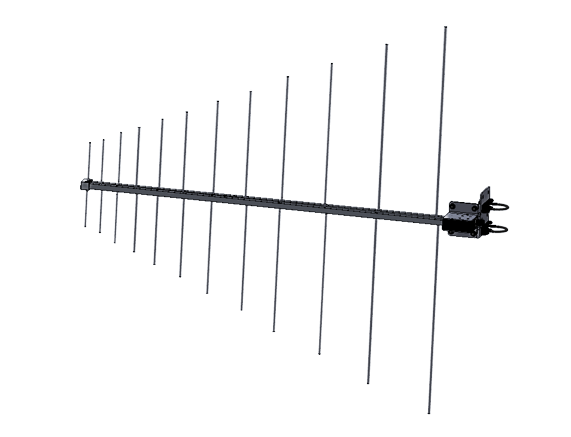

300 to 1500 MHz 9dbi Log Periodic Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
Applications:

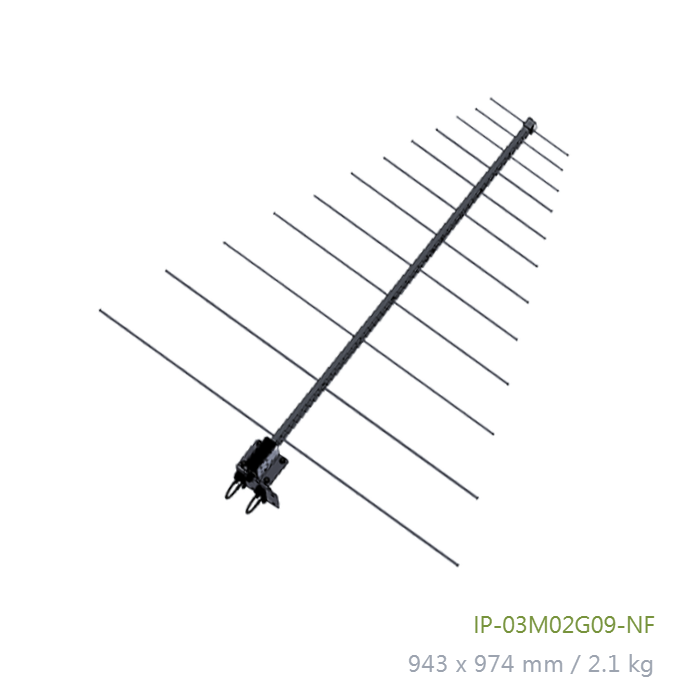

• IP-03M02G09-NF, 300 to 1500MHz UHF Band log periodic antenna, 9dbi N-Female
• provide wideband directional radio signals from 300 to 1500 MHz frequency band
Features:
• Superior Performance
• Good appearance design
• MIL Standards
• High power
• RoHS Compliant
|
Frequency Range |
300 – 1500MHz |
|
V.S.W.R |
1:2.5 |
|
Antenna Type |
Log Periodic antenna |
|
Radiation |
Directional |
|
Gain |
9dbi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
250W |
|
-3db Horz. Beamwidth |
65±5deg |
|
FB |
17±1deg |
|
Impedance |
50 Ohm |
|
Connector |
N-Female |
|
Dimension (WxL) |
943x974mm |
|
Weight |
2.1kg |
|
Accessories |
Mounting Bracket |
|
Mount Style |
1.5’’ Pole Mounting Type: L1 |
|
Parts Material |
Aluminum |
|
Application |
Indoor/ Outdoor |
|
Operating Temperature |
(-)30 to +70°C |
|
Operating Humidity |
(-)30 to +70°C |
|
Humidity |
0 to 95% RH |
|
Safety, Emission and other |
RoHS, WEEE |
