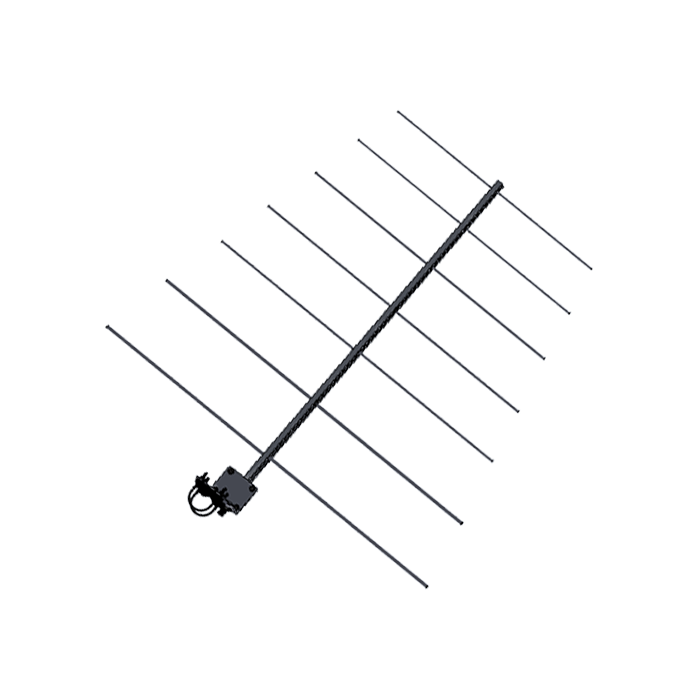

300 to 470 MHz 11dbi Log Periodic Antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
Applications:
- 300 to 470MHz UHF Band log periodic antenna, 11dbi N-Female
- Provide wideband directional transmission/reception of radio signals from 300-470 MHz bands for STL sites for ground-to-ground without having the requirement of multiple antennas
Features:
- Superior Performance
- Good appearance design
- MIL Standards
- High power
- RoHS Compliant
|
Frequency Range |
300 – 470 MHz |
|
V.S.W.R |
2:1 |
|
Antenna Type |
Log Periodic antenna |
|
Radiation |
Directional |
|
Gain |
11 dbi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500W |
|
-3db Horz. Beamwidth (AVG) |
65deg |
|
-3db Vert. Beamwidth (AVG) |
55deg |
|
Impedance |
50 Ohm |
|
Connector |
N-Female |
|

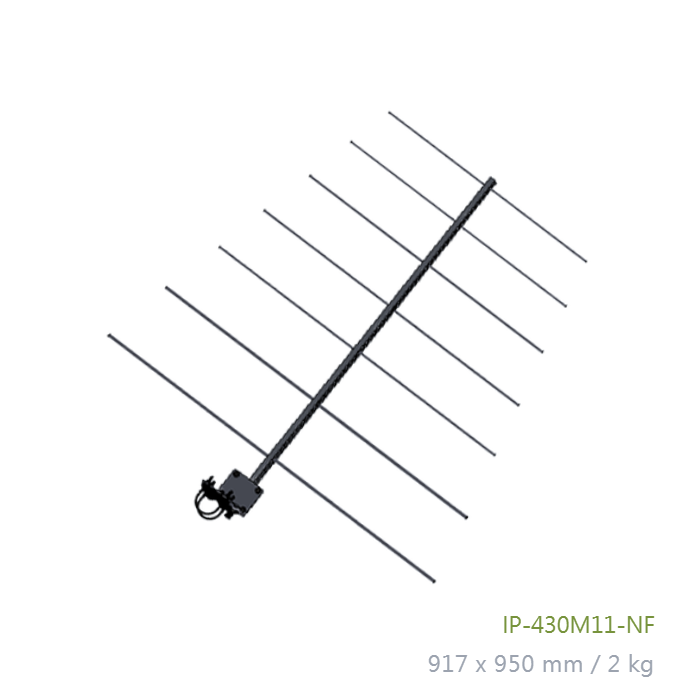

Dimension (WxL) |
917x950mm |
|
Weight |
2kg |
|
Accessories |
Mounting bracket |
|
Mount Style |
1.5’’ Pole Mounting Type: L1 |
|
Parts Material |
Aluminum |
|
Application |
Indoor/ Outdoor |
|
Operating Temperature |
(-)30 to +70°C |
|
Operating Humidity |
(-)30 to +70°C |
|
Humidity |
0 to 95% RH |
|
Safety, Emission and other |
CE, FCC, RoHS |
