800 to 2500Mhz 12dbi N-Female log-periodical antenna / Type:B
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

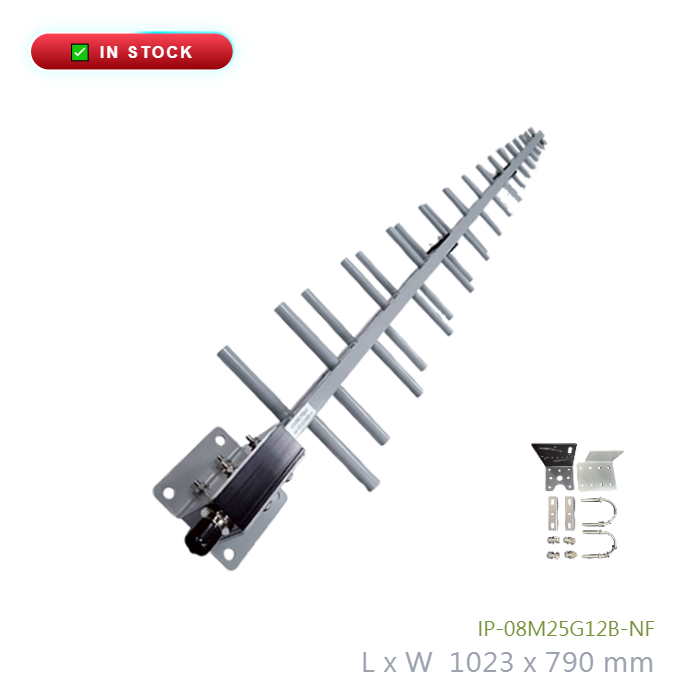

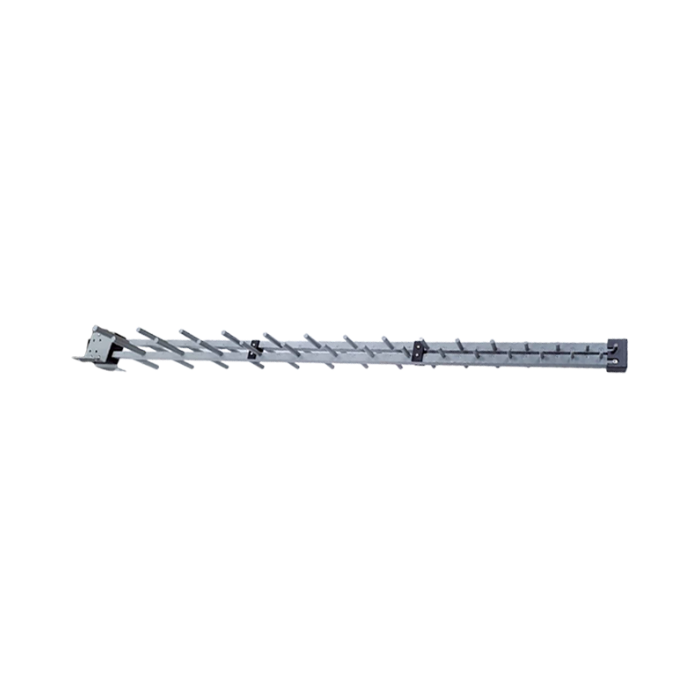

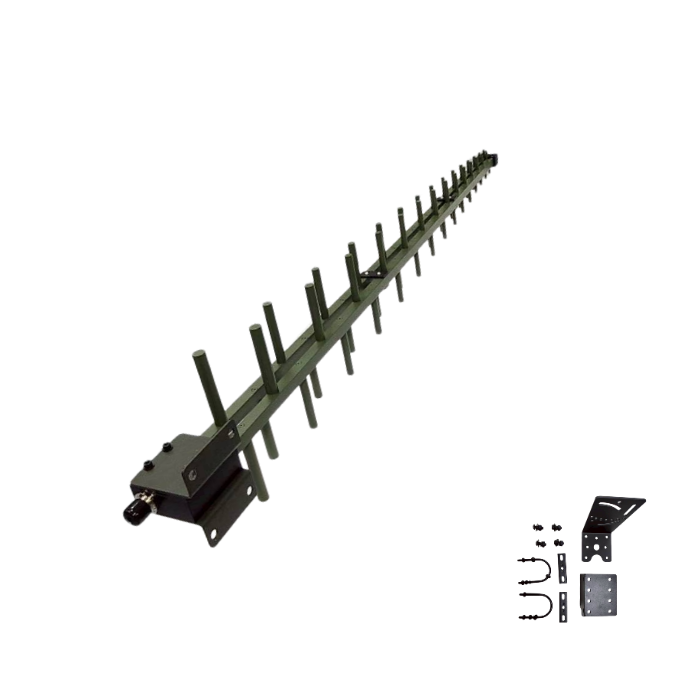

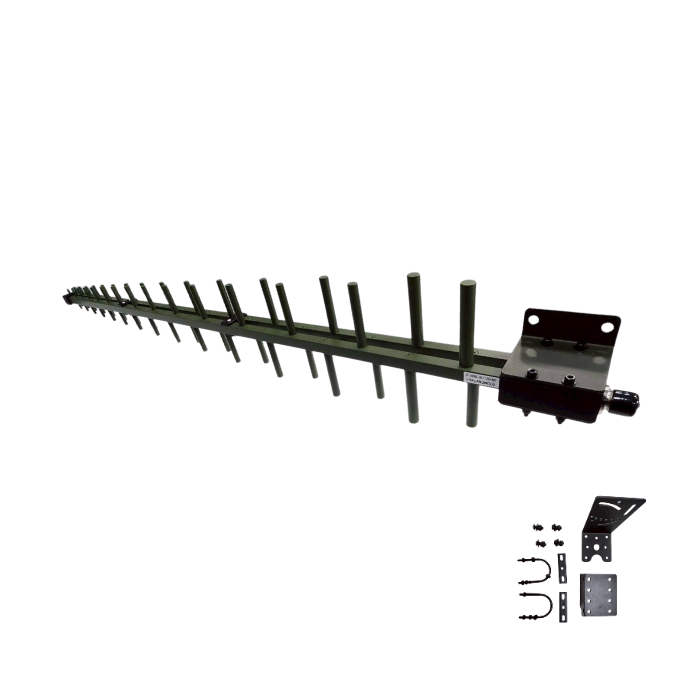

800 MHz to 2500 MHz 12 dBi N-Female Log Periodical Antenna
Broadband Precision | Professional RF Measurement | Model: IP-08M25G12B-NF
The IP-08M25G12B-NF is a high-performance Log Periodical Broadband Antenna engineered for professional wireless measurement and communication across the 800 MHz to 2500 MHz frequency range. This directional antenna provides a stable 12 dBi gain with consistent radiation patterns, making it an essential tool for spectrum monitoring, cellular testing, and EMI laboratory measurements. Featuring a robust N-Female connector and expertly engineered aluminum construction, it ensures superior signal integrity. Expertly manufactured in Taiwan, it is built to meet demanding industrial and scientific calibration standards.
Technical Specifications
| Frequency Range | 800 MHz to 2500 MHz |
| Antenna Gain | 12 dBi |
| Antenna Type | Log Periodical Antenna / Type:B |
| Connector Style | N-Female |
| Dimensions (L x W) | 1023 x 790 mm |
| Weight (Estimate) | 3273.26 g |
| Origin | Made in Taiwan |
Broadband Continuous Coverage
Seamlessly covers the 800-2500 MHz spectrum, providing a versatile solution for modern wireless communications and spectrum monitoring protocols.
High Gain Directional Stability
Delivers a focused 12 dBi gain, optimized for identifying specific signals or establishing high-quality directional wireless links.
Taiwanese Engineering Excellence
Precision-manufactured in Taiwan with aluminum construction for reliable performance and laboratory-grade durability.
Optimized geometry ensures pure radiation patterns and stable gain for professional high-frequency microwave testing.
