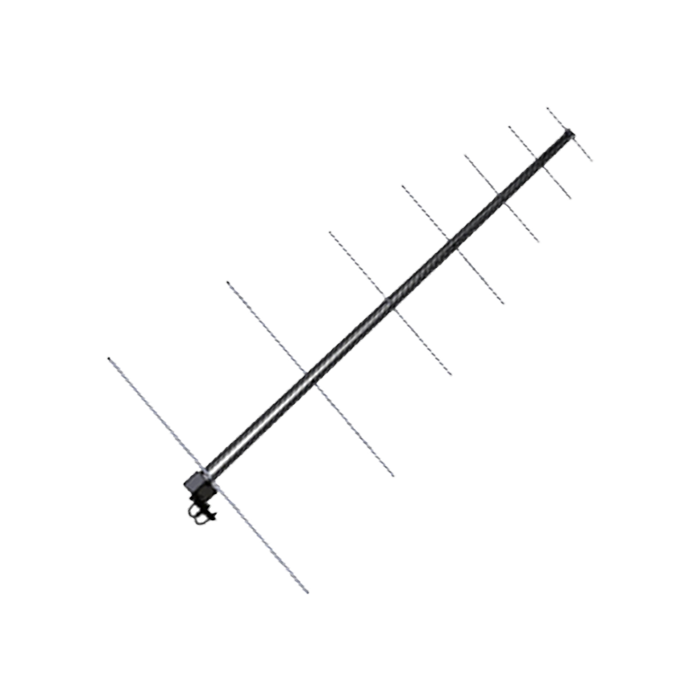

80MHz to 300MHz 7dbi Outdoor Log-periodic N-Female Antenna
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
80MHz to 300MHz 7dbi Outdoor Log-periodic N-Female Antenna
80-300 MHz High-Performance VHF | 7 dBi Directional Gain | Tactical Grade
The IP-08300M07-NF is a high-performance Log Periodic Directional Antenna engineered for wide-spectrum VHF dominance. Delivering a stable 7 dBi gain across the 80-300 MHz spectrum, this antenna is optimized for Signal Defense and advanced protective operations. Its robust aluminum construction ensures high-degree structural integrity and mechanical survival in extreme environments.
Technical Specifications
Antenna Performance
| Frequency Range | 80 MHz to 300 MHz |
| Gain | 7 dBi |
| Horizontal Beamwidth | 110° |
| Vertical Beamwidth | 56° |
| Connector | N-Female |
Mechanical & Environmental

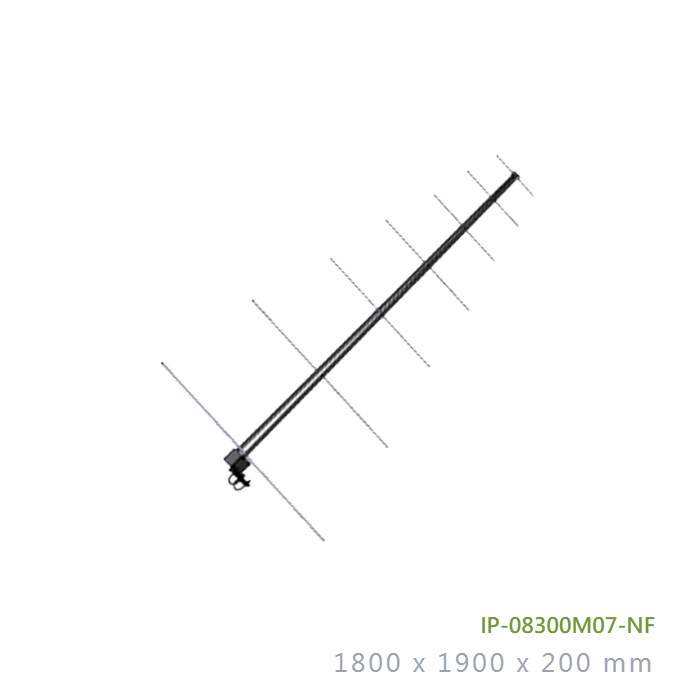

| Dimensions | 1800 x 1900 x 200 mm |
| Weight | 4 kg |
| Material | High-Grade Aluminum |
| Operating Temp | -30°C to +120°C |
| Humidity Resistance | 95% RH |
Tactical Performance Features
Wideband VHF Dominance
The IP-08300M07-NF spans the critical 80-300 MHz spectrum, providing a highly stable radiator for multi-frequency monitoring, signal intelligence, and Electronic Shielding operations. Its wideband capability eliminates the need for multiple antennas, streamlining tactical setups while maintaining consistent VSWR and radiation patterns across the entire VHF band, ensuring reliable performance for mission-critical signal defense.
Directional Polarization
Featuring an optimized 110° horizontal beamwidth, this log-periodic array is designed for focused Signal Security and significant range extension in professional theaters. The directional polarization ensures maximum energy is directed toward the target area, minimizing interference from peripheral sources and enhancing the signal-to-noise ratio for critical communication and surveillance links.
Extreme Thermal Endurance
Engineered for extreme reliability, the antenna is built to maintain peak electrical performance in temperatures ranging from -30°C up to +120°C. This thermal resilience ensures mission success in the most hostile environments, from arctic conditions to intense desert heat, without compromising the structural or electrical integrity of the feed system or the radiator elements.
Structural Integrity
The large-scale aluminum array is meticulously crafted to maintain an exceptional strength-to-weight ratio. Despite its 1800mm span, the 4 kg lightweight design is perfect for rapid field deployment, mast integration, and mobile tactical units. The high-grade aluminum construction provides natural corrosion resistance and mechanical survival against high wind loads and environmental stress.
Get a Quote / Customization
For custom brackets, frequencies, or rugged enclosures, contact our engineering team.
