J-PT-7230 Pan and Tilt Antenna Positioning System
Military FT-RF Taiwan
10 out of
10
-
Description & Specification

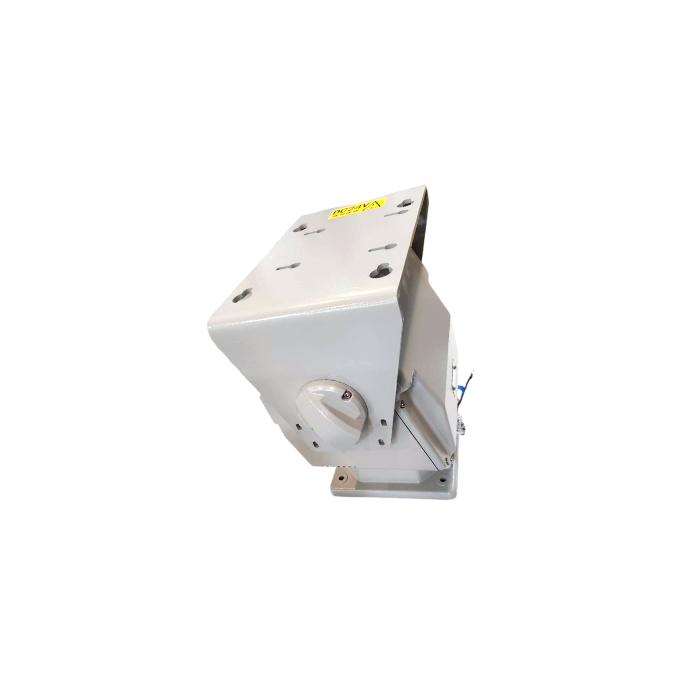

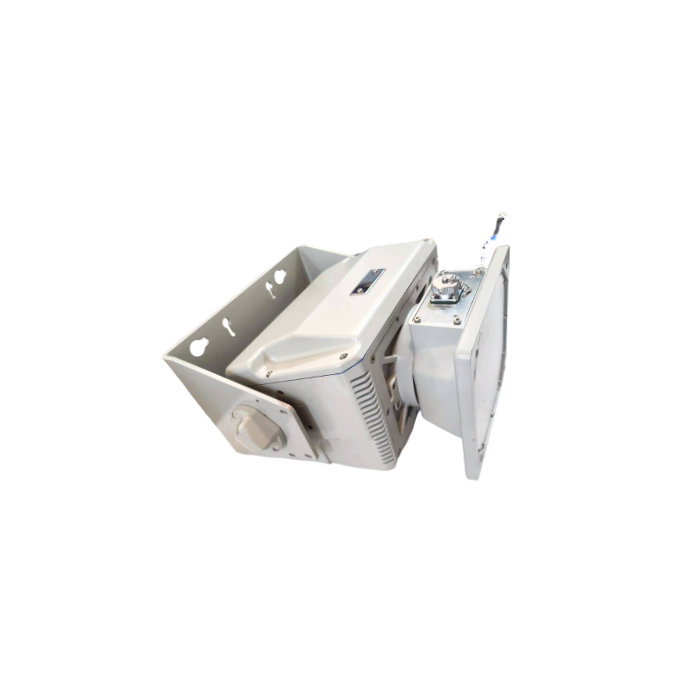

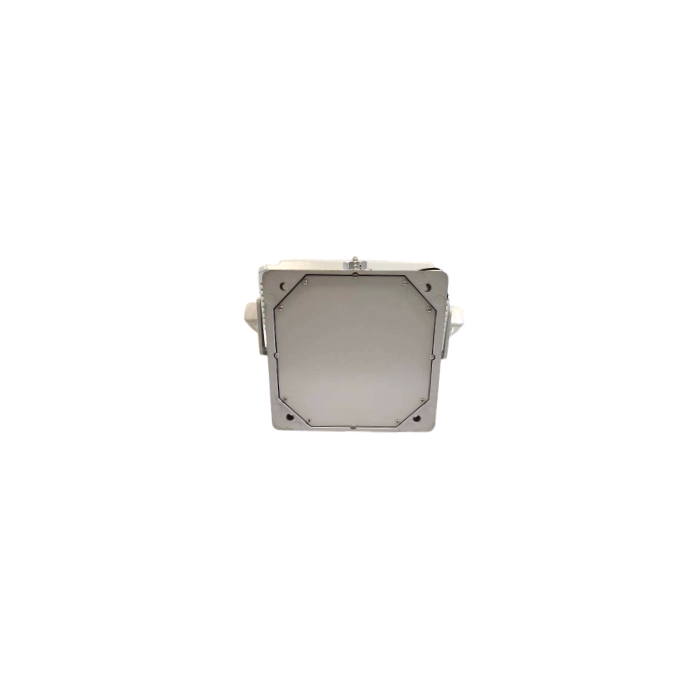

J-PT-7230 Pan and Tilt Antenna Positioning System
High-Precision Industrial Antenna Positioner | IP66 Rugged Design
The J-PT-7230 is a high-performance pan-tilt antenna positioning system engineered for precise rotational orientation of various antenna types, including dish and horn antennas. Designed for reliability in extreme outdoor environments, it provides continuous 360° pan rotation and exceptional positioning accuracy.
Technical Specifications
Hardware Performance

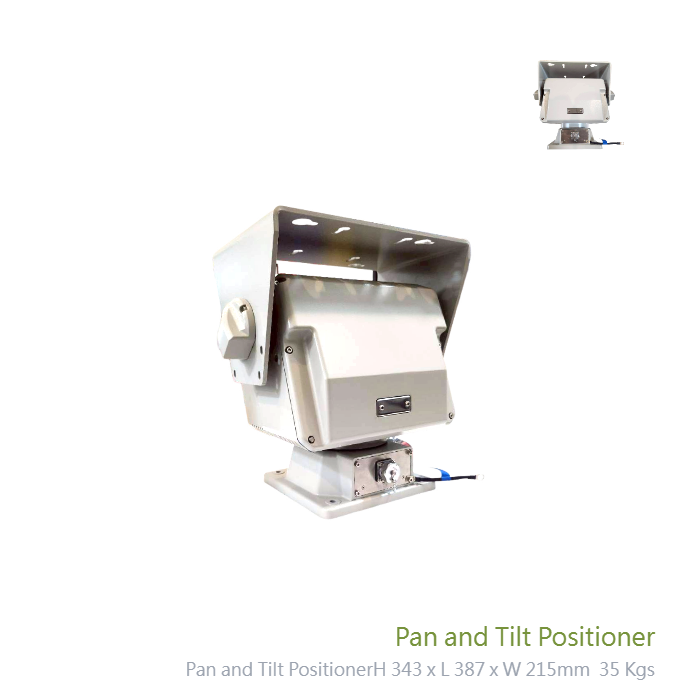

| Dimensions | H 343mm x L 387mm x W 215mm |
| Rotation Range | Pan 360° continuous, Tilt -55°~+60° |
| Load Capacity | 35 Kgs |
| Positioning Accuracy | ≤0.05° |
| Angular Resolution | 0.01° |
| Protection Level | IP66 |
| Operating Temp | -40°C ~ +65°C |
Software & Control
| Communication | RS-485 / RS-422 |
| Protocol | PELCO-D |
| Preset Positions | 199 |
| Power Consumption | ≤5W (Standby), ≤100W (Operation) |
Professional Features
High Precision Control
Features closed-loop speed and position control modes, ensuring accurate antenna orientation with repeated positioning accuracy of ≤0.05°.
Rugged Reliability
Built with aluminum alloy and rated IP66 for extreme outdoor conditions, featuring anti-lightning and surge protection to standard GB/T17626.5 level 4.
Versatile Integration
Supports manual control with 64-level adjustable speed and offers advanced software features including 3D positioning and coordinate query/return.
High Load Capacity
Engineered for professional deployments, this positioner handles top loads up to 35 Kgs using a long-life worm gear drive system.
Get a Quote / Customization
Contact us for professional technical support or configuration options for your antenna deployment system. Made in Taiwan.
