PROFESSIONAL COMMUNICATION & SIGNAL TRANSMISSION

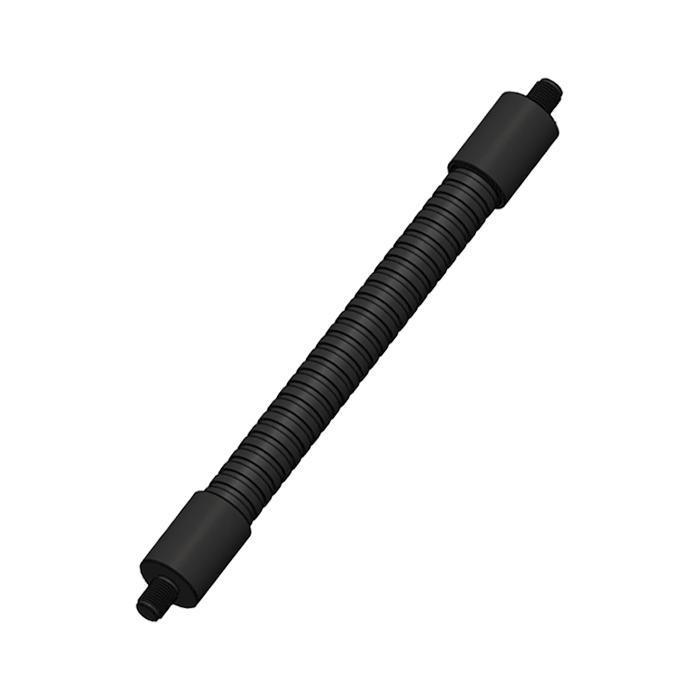

Rugged Gooseneck Antennas & Adapters (GK)
The Rugged Antenna Gooseneck Series (GK / GA) provides flexible, high-durability mechanical extension and precision RF adapter solutions designed for rugged field adaptability. Engineered for handheld radios and manpack systems, it allows precise adjustment of antenna orientation to optimize Signal Integrity in demanding outdoor environments.
*Custom gooseneck tube lengths (158mm to 300mm+), specialized thread options (M6, M8, M12, 5/16-24), and industrial coatings available upon request. Made in Taiwan.
🔩 Next-Gen Engineering Highlights
M8 Flexible Tube Series
Includes various length options from 158mm up to 300mm with 12.8mm and 15mm tube diameters for high durability.
Specialized M6 & M12 Interfaces
Offers precision-engineered 205mm M6 (11.8mm) and 170mm M12 (15mm) gooseneck tube configurations.
Integrated Coaxial RF Assembly (GA)
Includes TNC-Male to Male adapter for RG316D Coaxial cable integrated with a 170mm gooseneck extender tube.
Matte Black Coating Finish
Finished with a premium matte black protective coating for professional durability, and environmental resistance.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Integrated Series | Gooseneck Antennas (GK Series), Gooseneck Adapters & Extenders (GA Series) |
| Interface Configurations | M8, M6, M12 Thread, TNC-Male to Male & 5/16-24 Industrial Standard |
| RF Cable Assembly | RG316D Coaxial Cable with TNC-Male Interfaces (GA Series) |
| Tube Diameters | 11.8mm, 12.8mm, and 15mm High-Durability Tubes |
| Length Options | 158mm, 170mm, 205mm to 300mm Extension Range |
| Surface Finish & Operation | Industrial Matte Black Finish with Precision Position Retention |
Gooseneck Antennas (GK) Gooseneck Adapters (GA) 5/16-24 Industrial Thread RG316D Coaxial RF Assembly Industrial Matte Black Finish Precision Position Retention
🛠️ Customization & Engineering Services
We provide tailored gooseneck mechanical engineering and coaxial adapter integration:
- Custom Lengths & Stiffness: Adjusted bending retention for heavier radomes or lightweight whips.
- Connector Interface Options: TNC, BNC, N-Type, SMA, or custom thread studs.
- Industrial Surface Coatings: Non-reflective finishes in Forest Green, Desert Tan, or Stealth Black.
- Traceable Testing: Flexural Cycle & RF Insertion Loss Test Reports.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Accessories
Enhance your gooseneck installation with compatible heavy-duty coaxial cables and mounts:
`
Made in Taiwan
| Thread Size: | M8 * 1.25 |
| Snake Tube: | Reinforced Composite Materials |
| Max Support: | 270 g |
| Compliance: | MIL-STD-810 / Continuity Tested |
Made in Taiwan
| Thread Size: | M8 * 1.25 |
| Snake Tube: | Reinforced Composite Materials |
| Max Support: | 270 g |
| Compliance: | MIL-STD-810 / Continuity Tested |
Made in Taiwan
| Product Type: | Antenna Gooseneck Extender |
| Thread Size: | M8 * 1.25 |
| Compliance: | MIL-STD-810 |
| Weight: | 250 g (Heavy-Duty Support) |
Made in Taiwan
| Model Number: | GK-240A-AA |
| Thread Size: | M8 * 1.25 |
| Weight: | 190 g |
| Compliance: | MIL-STD-810 |
Made in Taiwan
| Product Type: | Antenna Gooseneck Extender |
| Thread Size: | M8 * 1.25 |
| Connector Material: | Copper / Black Chrome |
| Compliance: | MIL-STD-810 Compliant |
Made in Taiwan
| Thread Size: | 5/16-24UNEF |
| Weight: | 120 g |
| Finish Color: | Dark Green |
| Compliance: | MIL-STD-810 |
Made in Taiwan
| Thread Type: | M8 x 1.25 |
| Tube Material: | Reinforced Composite |
| Connector: | Copper / Black Chrome |
| Net Weight: | 120 g (Ultra-Lightweight) |
Made in Taiwan
| Tube Material: | Reinforced Composite |
| Thread Type: | M8 * 1.25 |
| Standard Test: | MIL-STD-810 |
| Weight: | 200 g |
Made in Taiwan
| Product Type: | Antenna Gooseneck Extender |
| Tube Material: | Reinforced composite materials |
| Connector Port: | Copper / Plated black chrome |
| Thread Specification: | M8 * 1.25 |
| Net Weight: | 160 g |
| Compliance: | MIL-STD-810 |
Made in Taiwan
| Tube Material: | Reinforced composite materials |
| Connector: | Copper / Plated black chrome |
| Thread: | M12 * 1.25 |
| Weight: | 200 g |
| Compliance: | MIL-STD-810 |
Made in Taiwan
| Tube Material: | Reinforced composite materials |
| Connector: | Copper / Plated black chrome |
| Thread: | M12 * 1.25 |
| Weight: | 200 g |
| Compliance: | MIL-STD-810 |
Made in Taiwan
| Product Type: | Antenna Gooseneck Extender |
| Connector: | Copper / Plated black chrome |
| Thread: | M8 * 1.25 |
| Weight: | 130 g |
| Compliance: | MIL-STD-810 |
