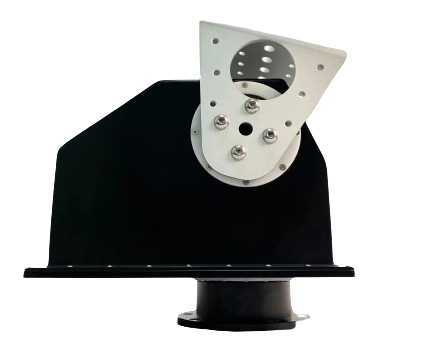

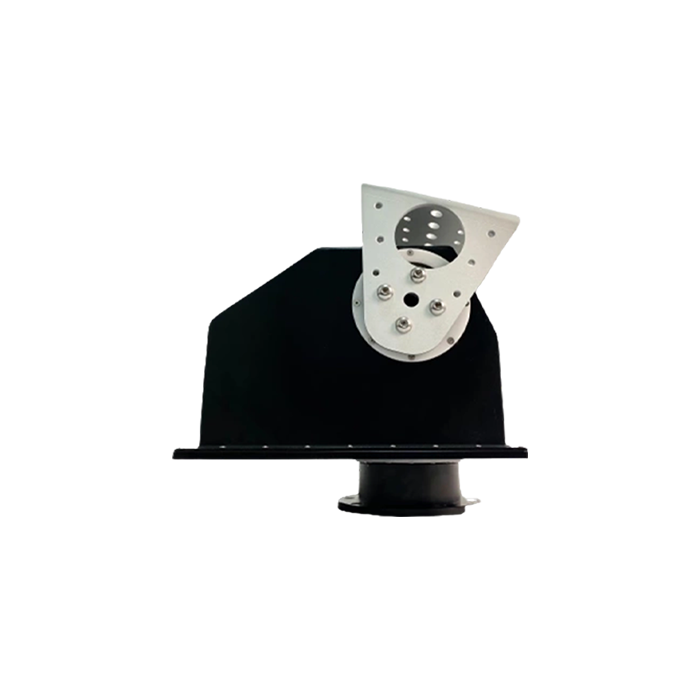

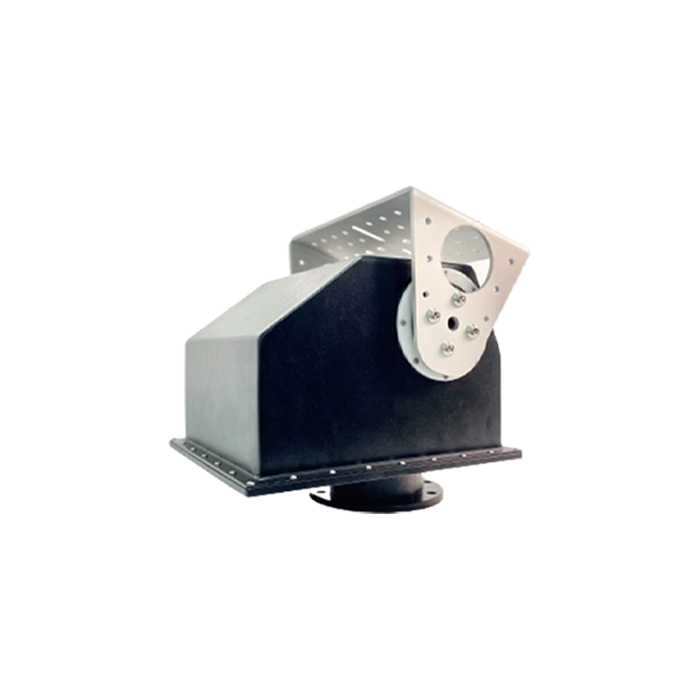

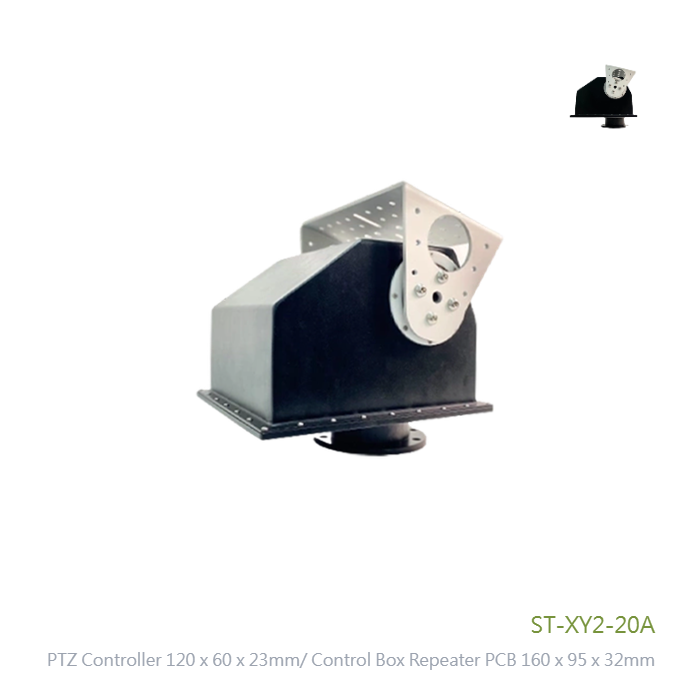

Pan & Tilt for loading Antenna

PTZ - Controller Specifications

Dimension

120 mm x 60 mm x 23 mm

Input power

DC 24V (DC 24V)

Pulse width modulation-output

(PWM Output)

[1] Quantity: 2

[2] Output signal:

  (1) Voltage level: 3.3 V

  (2) The fastest pulse wave speed: 1MHz

Absolute encoder-input

(Absolute Encoder Input)

[1] Quantity: 2

[2] Input signal:

  (1) Interface: RS-422

  (2) Communication: Support BiSS-C protocol

Digital signal I/O

[1] Number of Digital Inputs: 4

  (1) Input signal voltage: 24V or less

  (2) Planning to use: 2 groups (upper and lower limit)

  (3) Reserved use: 2 groups (emergency stop, system reset) + 4 groups

[2] Number of Digital Output: 2

  (1) Output category: dry contact, withstand voltage DC 48V, withstand current 80mA

  (2) Reserved use: 2 groups

External connection communication

[1] Number of connected "computers": 1

  (1) Interface: RS-485

  (2) Communication: Support PELCO-D protocol

[2] Number of connected "relay stations": 1

  (1) Interface: CAN bus

  (2) Communication: Support CAN 2.0B protocol

Control Box Repeater Specifications

Dimension

[1] Circuit board: 160 mm x 95 mm x 32 mm

[2] Display: 122 mm x 44 mm x 14 mm (refer to dimension)

Input power

DC 24V

Significant shows an

Standard 160x32 LCM (liquid crystal display module, graphic type, white text on blue background)

Digital signal I/O

[1] Number of Digital Inputs: 10

  (1) Input signal voltage: 24V or less

  (2) Planning to use: 7 groups (up, down, left, right, position return, emergency stop, system

       Reset)

  (3) Reserved use: 3 groups/

External connection communication

[1] Number of connected "computers": 1

  (1) Interface: RS-485

  (2) Communication: Support PELCO-D communication

[2] Number of connected "Repeater": 1

  (1) Interface: CAN bus

  (2) Communication: Support CAN 2.0B protocol
