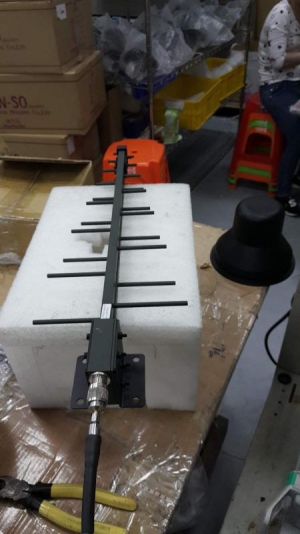

700MHz to 3000MHz Military Log-periodic antenna N-Female
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
700MHz 至 3000MHz 軍用對數週期天線 N 型
|
Frequency Range |
700MHz - 3000MHz |
|
V.S.W.R |
2.5:1 Max. |
|
Antenna Type |
Log Periodic |
|
Radiation |
Directional |
|
Gain (AVG) |
11dBi |
|
Polarization |
Vertical or Horizontal |
|
Maximum Power |
500W |
|
Vertical Beam-width |
54Deg |
|
Horizontal Beam-width |
75Deg |
|
Impedance |
50 Ohm |
|
Antenna Design |
Log Array |
|
Internal Material |
6061T6 Aluminum |
|
Connector |
N-Female |
|
Storage Temperature |
-20 to +80 |
|
Operating Temperature |
-20 to +60 |
|
Operating Humidity |
10%~80% non-condensing |
|
Storage Humidity |
5%~80% non-condensing |
|
Safety,Emission and other |
RoHS |
