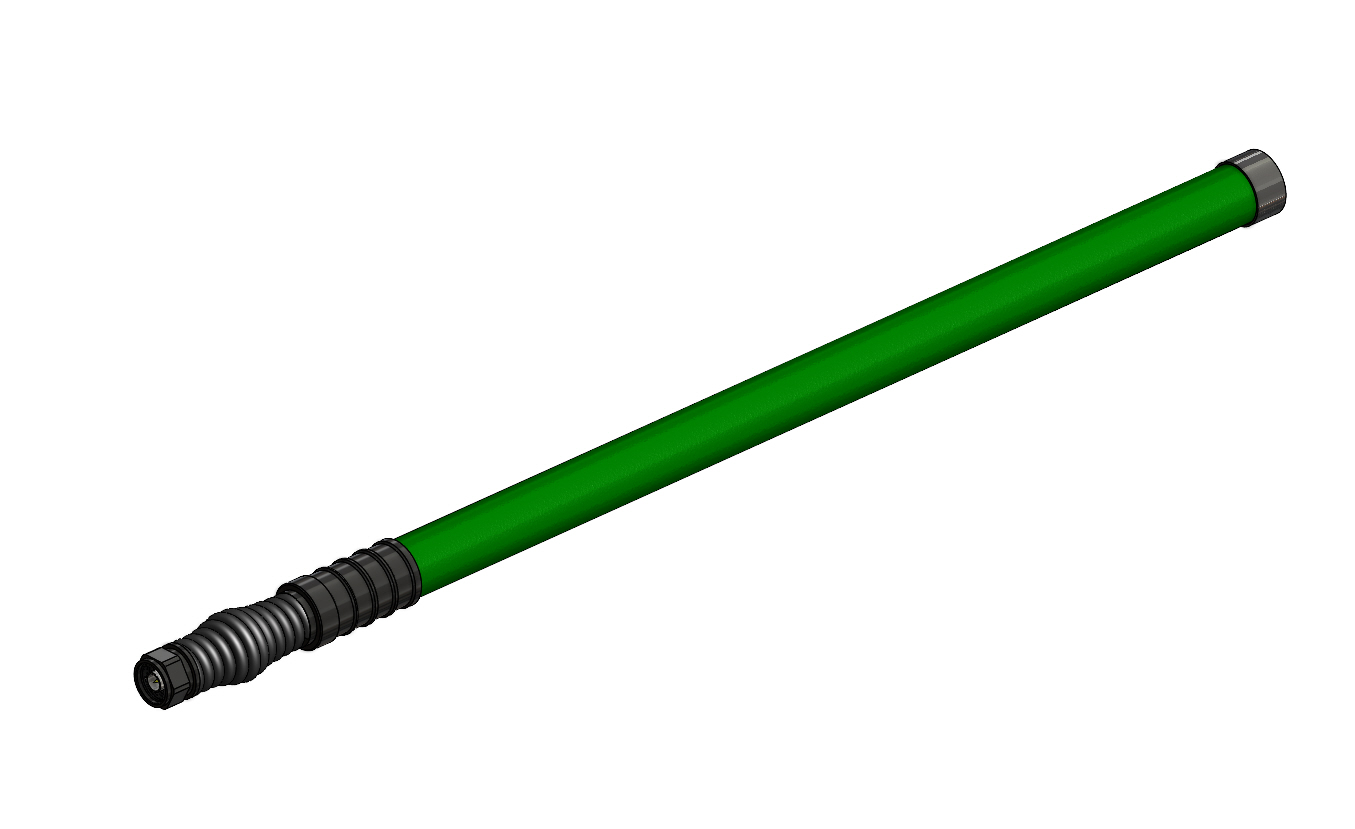

1200MHz to 1400MHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male

Model No: ME-1214G05AS-NM

Mechanical Drawing: Download

  • Frequency: 1.2 to 1.4GHz
  • Gain: 2dbi
  • MAX power: 120W (CW)
Quantity:
INQUIRY

Application:

  • 1200MHz to 1400MHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
  • Jamming antenna

Feature:

  • Compact design, light weight,
  • Superior performance
  • Good appearance design
  • Compliant with MIL: 810G

Specification

  • Frequency: 1.2 to 1.4GHz
  • Gain: 2dbi
  • MAX power: 120W (CW)
  • -3db vertical polarization: 58deg
  • -3db horizontal polarization: 360deg
  • Antenna size: 26xL375mm
  • Antenna weight: 0.45kg
  • Temperature: -40 to +120 degrees
  • Humidity: 95%
  • Waterproof: IP67
  • Compliant with MIL: 810G
  • Vibration test: 5.0G
  • Salt spray test: 96HR
  • Color: black and green
  • VSWR:>2.5
