Rugged Wideband Vehicular Antenna (MJ) | FT-RF
- Select
INDUSTRIAL-GRADE COMMUNICATIONS

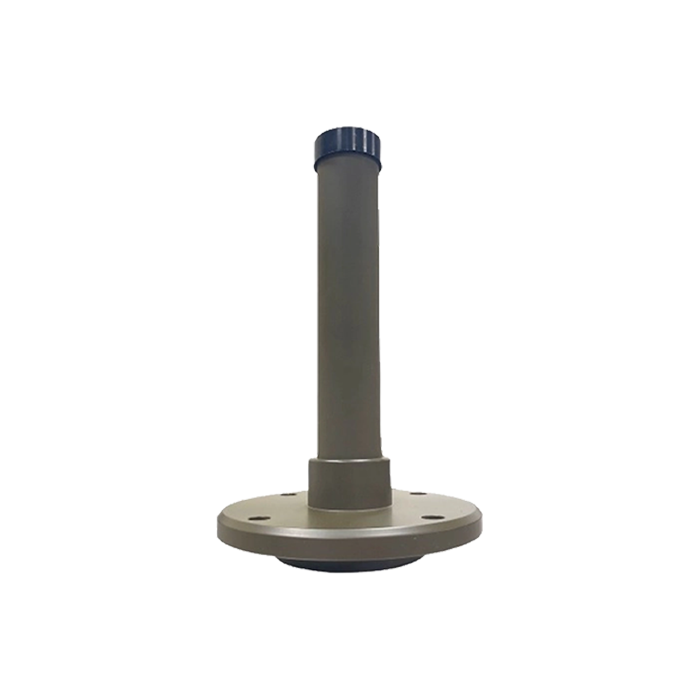

High-Gain Rugged Vehicular Antennas (MJ)
The High-Gain Rugged Vehicular Antenna (MJ Series) is a heavy-duty, field-proven solution engineered for mobile high-reliability communications and signal clarity in demanding industrial environments. Designed for professional fleets, emergency services, and specialized transport vehicles, this series combines robust performance with exceptional broad-spectrum coverage to maintain flawless link integrity under severe environmental and operational stress.
*Custom mounting bases, frequency tuning, and custom industrial color finishes (Forest Green, Desert Tan, Stealth Black) available upon request. Made in Taiwan.
🛡️ Next-Gen Engineering Highlights
High-Efficiency Power Capacity
Optimized RF architecture supports sustained high RF power inputs without thermal degradation.
Ultra-Wideband Coverage
Consolidates multiple operational bands into a single vehicular mount, reducing antenna clutter.
Heavy-Duty Spring Base
Shock-absorbing flexible spring bases withstand severe off-road impacts and high-speed vibrations.
All-Weather IP67 Protection
Housed in heavy-duty radomes built to resist extreme temperatures and harsh environments.
Key Applications:
| Key Parameter | Technical Specification |
|---|---|
| Frequency Range | 200 MHz – 6800 MHz (Multi-Octave Continuous Spectrum) |
| Power Capacity | High-Efficiency Continuous Power Thermal Rating |
| Radiation Coverage | 360° Omnidirectional High Gain Signal Output |
| Mechanical Base Type | Heavy-Duty Flexible Shock-Absorbing Spring Base |
| Environmental Standard | IP67 Sealed Housing / High-Vibration & Impact Compliant |
| Deployment Integration | Standard Vehicular Heavy-Duty Roof / Bracket Mount |
High Power Efficiency Ultra-Wideband Spectrum Omnidirectional Gain Heavy-Duty Spring Base IP67 Weatherproof Rating Specialized Vehicle Ready
🛠️ Customization & Engineering Services
We offer tailored engineering and physical customization for specialized vehicle platforms:
- Custom Frequency Tuning: Specific band optimization (VHF, UHF, GSM, LTE, 5G, C-Band).
- Industrial Radome Coatings: Anti-UV finishes in Forest Green, Desert Tan, or Stealth Black.
- Traceable Calibration: Full VSWR, Gain & Radiation Pattern Test Reports.
- Custom Vehicle Roof Mounts: Reinforced mounting adapters for heavy-duty vehicles.
Direct Technical Support: info-tw@ft168.com.tw
📐 Recommended Vehicular Accessories
Enhance your vehicle installation with compatible industrial-grade coaxial cables and mounts:
Made in Taiwan
| Frequency Range: | 500 MHz - 2000 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Dimension: | Ø 140 x L231 mm |
Made in Taiwan
| Frequency Range: | 1700 MHz - 4000 MHz |
| Maximum Power: | 200 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Dimension: | Ø 140 x L209 mm |
Made in Taiwan
| Frequency Range: | 300 MHz - 6000 MHz |
| Gain: | 0 dBi - 7 dBi (Typ: 3 dBi) |
| Maximum Power: | 200 Watts (CW) |
| Compliance: | MIL-STD-810G |
Made in Taiwan
| Frequency Range: | 600 MHz - 1200 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain: | 3 dBi |
| Dimension: | Ø 140 x L331 mm |
MJ-8697M03-NF
680MHz to 1100MHz 3dbi Vehicular Omnidirectional Antenna, MJ-06M11G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 680 MHz - 1100 MHz |
| Maximum Power: | 500 Watts (CW) |
| Gain: | 3 dBi |
| Dimension: | Ø 140 x L311 mm |
MJ-200500M03A-NF
200MHz to 500MHz 3dbi Vehicular and Base Omnidirectional Antenna, MJ-02M05G03A-NF
View Details
Made in Taiwan
| Frequency Range: | 200 MHz - 500 MHz |
| Maximum Power: | 200 Watts (CW) |
| Gain (Peak): | 3 dBi |
| Compliance: | IP67 / RoHS / CE / FCC |
