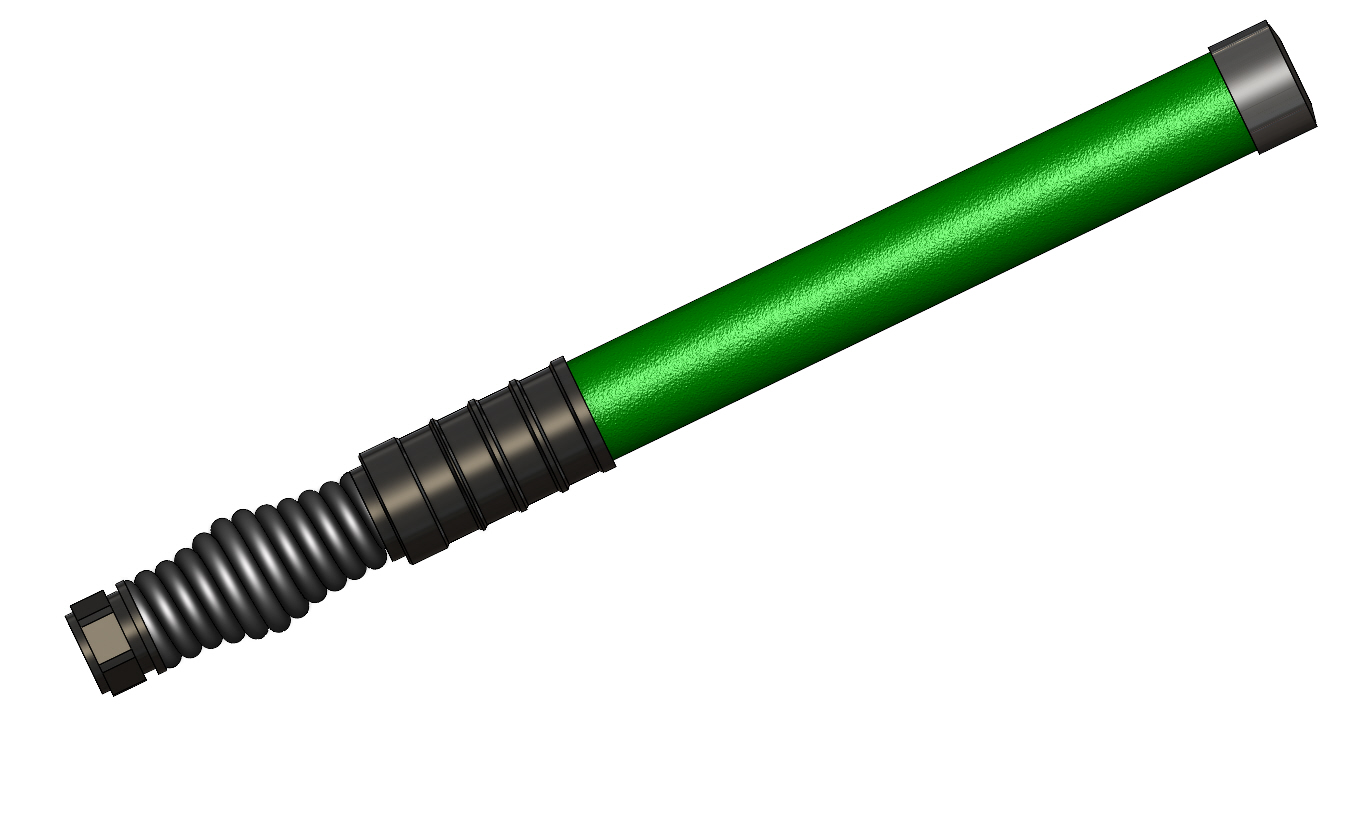

2.0GHz to 3.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
Military FT-RF Taiwan
10 out of
10
-
Description & Specification
Application:
- 2.0GHz to 3.2GHz 5dbi Omnidirectional Handheld and Manpack Jammer antenna With Spring N-Male
- Jamming signal system
Feature:
- Compact design, light weight,
- Superior performance
- Good appearance design
- Compliant with MIL: 810G
Specification:
- Frequency: 3.0 to 3.2GHz
- Gain: 5dbi
- MAX power: 70W (CW)
- -3db vertical polarization: 28deg
- -3db horizontal polarization: 360deg
- Antenna size: 26xL356mm
- Antenna weight: 0.4kg
- Temperature: -40 to +120 degrees
- Humidity: 95%
- Waterproof: IP67
- Compliant with MIL: 810G
- Vibration test: 5.0G
- Salt spray test: 96HR
- Color: black and green
- VSWR:>2.5
