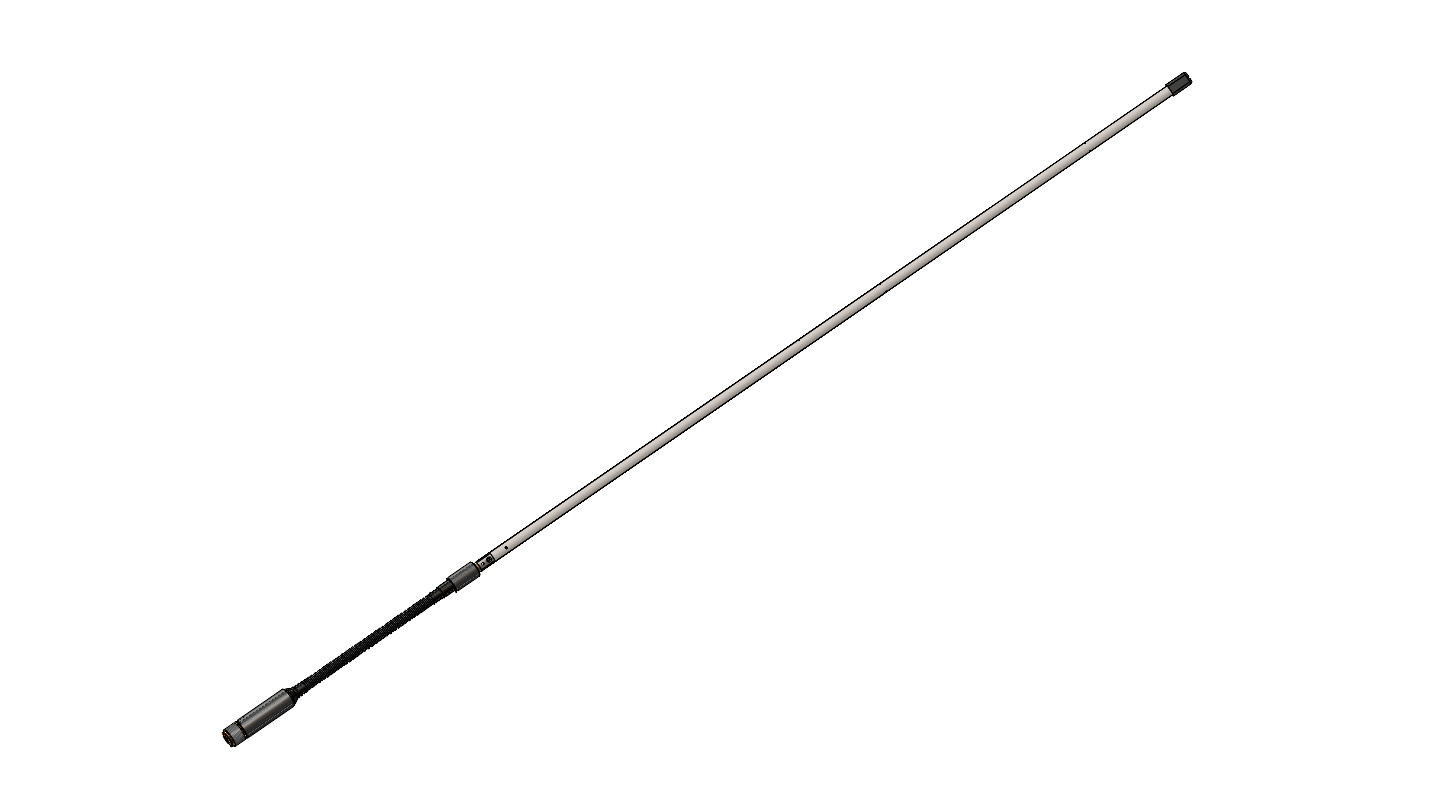

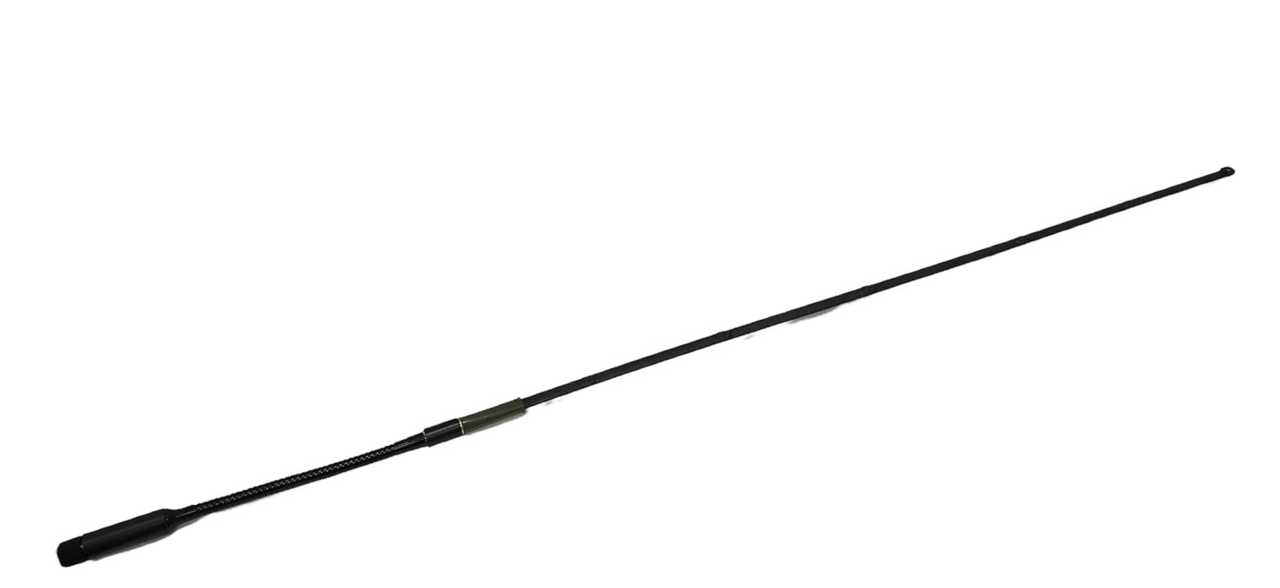

30 MHz to 512 MHz Military Handheld & Manpack Whip Antenna, N-Male Connector Type: A
Military FT-RF Taiwan
10 out of
10
-
Description
-
Electrical Specs
-
Mechanical Specs
Application:
- 30 MHz to 520 MHz Military Handheld & Manpack Whip Antenna, N-Male Connector Type: A
- Manpack radios and portable jamming systems on VHF/UHF frequency range from 30 to 520 MHz.
Feature:
- Superior performance
- Lightweight
- Good appearance design
- MIL-Standards
- RoHS Compliant
|
Frequency Range |
30 MHz – 520 MHz |
|
Antenna Type |
Collinear |
|
Radiation |
Omni Directional |
|
Gain |
-9 to 1 dbi |
|
Polarization |
Vertical |
|
Maximum Power |
27 Watts |
|
-3db Beamwidth H-Plane |
360 deg |
|
-3db Beamwidth V-Plane |
96 deg |
|
FBR (AVG) |
2 dB |
|
Impedance |
50 Ohm |
|
Connector |
N-Male |
|
Length |
1400mm |
|
Antenna Weight |
550g |
|
Application |
Indoor / Outdoor |
|
Storage Temperature |
-40 to +80 |
|
Operating Temperature |
-40 to +120 |
|
Operating Humidity |
10%~95% non-condensing |
|
Storage Humidity |
5%~95% non-condensing |
|
Safety, Emission and other |
CE, FCC, RoHS, WEEE |
