Wideband mobile VHF dipole antenna 20 MHz -120 MHz SMA-Female

Model No: MV-20120G-BF-G28-SF

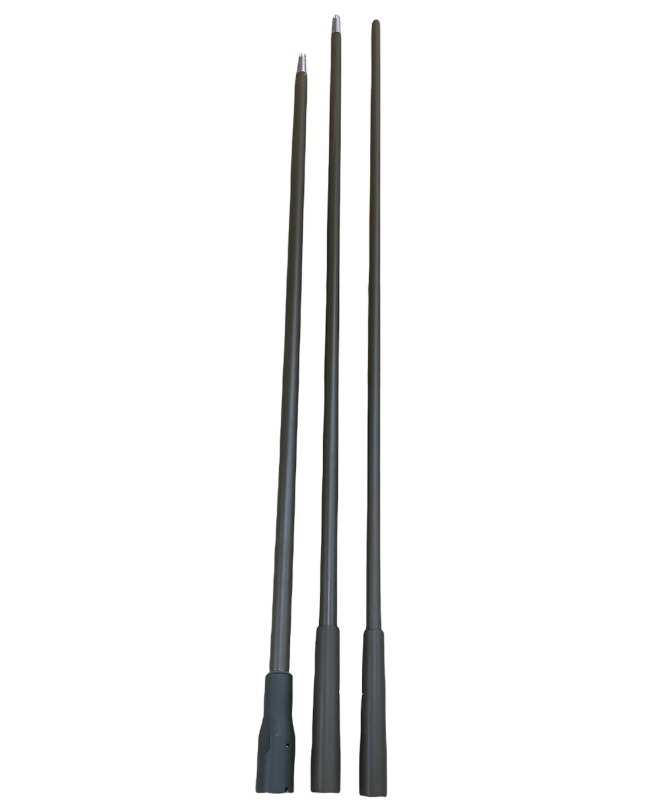

MV-20120G-BF-G28-SF is a NEW wideband mobile VHF antenna for the frequency range from 20 to 120 MHZ. The antenna is composed of 4 main parts: antenna base, lower, middle and upper radiating element.

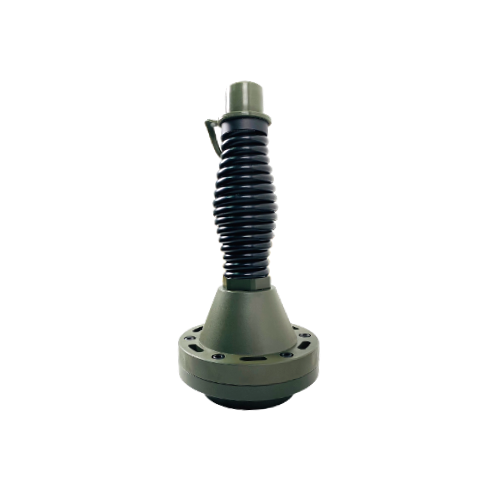

The antenna base is made of aluminum and durable plastic materials. Inside the base is an (optional) GPS antenna.

Quantity:
INQUIRY

The antenna MV-20120G-BF-G28-SF is a NEW wideband mobile VHF antenna for the frequency range from 20 to 120 MHZ. The antenna is composed of 4 main parts: antenna base, lower, middle and upper radiating element.

The antenna base is made of aluminum and durable plastic materials. Inside the base is an (optional) GPS antenna.

Frequency Range

20 MHz to 120 MHz

V.S.W.R (Avg)

 ≤3.5:1

Antenna Type

Collinear

Gain (AVG)

0.2 dBi (Max: 1.8 dBi)

Polarization

Vertical

Maximum Power (CW)

100 W

Impedance

50 Ohm

Antenna Design

Dipole Antenna

Internal Material

Copper

Connector

SMA - Female

Frequency Range

1575.42±3 MHz

V.S.W.R

 ≤2:1

Impedance

50 Ohm

LNA

28DB

Voltage/ Current

3:5 VDC/ 12A

Connector

SMA-Female

Antenna Length (+Antenna base)

357cm

Upper (section 3) Length

120cm

Middle (section 2) Length

120cm

Bottom (section 1) Length

110cm

Antenna section

2.3kg

Antenna Base Weight

2.1kg

Radome Material

Paint Green Fiberglass +UV

Wind Survival

Greater than 160KM/H

Storage Temperature

-40 to +80

Operating Temperature

-40 to +60

Operating Humidity

10%~90% non-condensing

Storage Humidity

5%~90% non-condensing

Safety, Emission and other

RoHS
