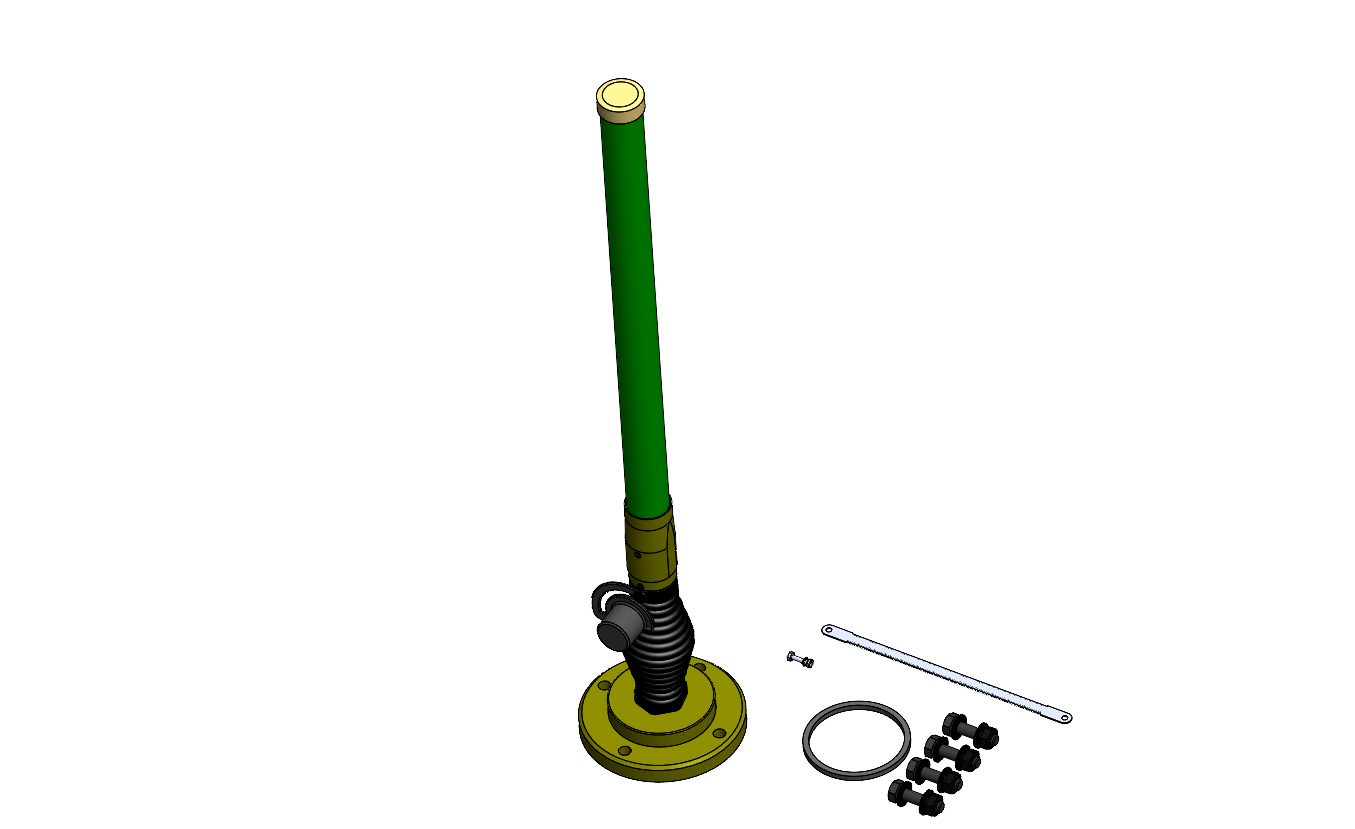

1.0 to 1.4GHz 4.5dbi Vehicle Omnidirectional Jammer antenna With Spring

Application:

• 1.0 to 1.4GHz 4.5dbi Vehicle Omnidirectional Jammer antenna With Spring

• Jamming signal system

Feature:

• Compact design, light weight,
• Superior performance
• Good appearance design
• Compliant with MIL: 810G

Specification

• Frequency: 1.0 to 1.4GHz
• 1.0 to 1.4GHz 4.5dbi Vehicle Omnidirectional Jammer antenna With Spring
• Gain: 4.5dbi
• MAX power: 150W (CW)
• -3db vertical polarization: 28deg
• -3db horizontal polarization: 360deg
• Antenna size: 140xL752mm
• Antenna weight: 3.6kg
• Temperature: -40 to +120 degrees
• Humidity: 95%
• Waterproof: IP65
• Compliant with MIL: 810G
• Vibration test: 5.0G
• Salt spray test: 96HR
• Color: black and green
• VSWR:>2.5
