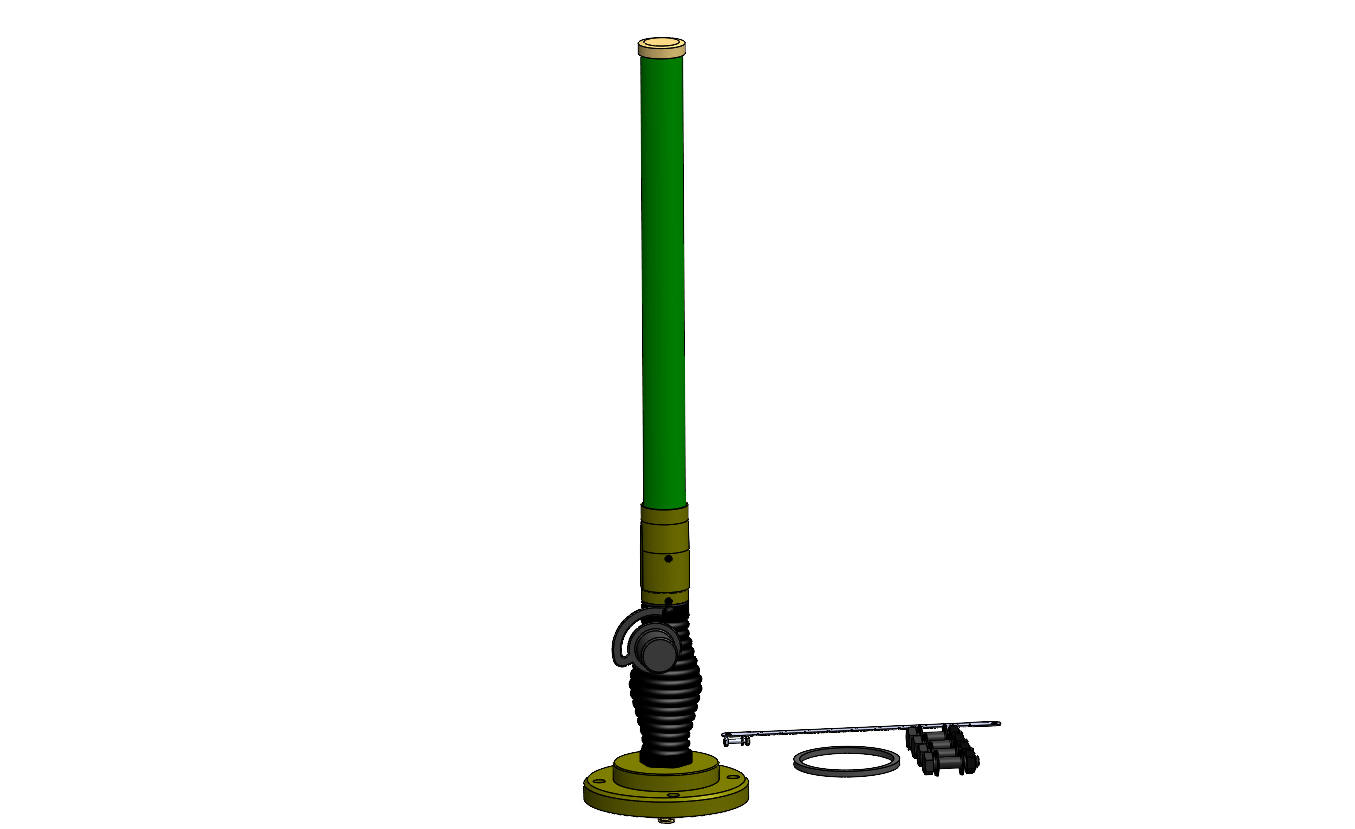

2.6GHz to 3.0GHz 6.5dbi Vehicle Omnidirectional Jammer antenna With Spring

2.6GHz to 3.0GHz 6.5dbi Vehicle Omnidirectional Jammer antenna With Spring

Model No: MJ-2630G07S-NF

Download Datasheet: Download

  • Frequency: 2.6 to 3.0GHz
  • Gain: 6.5dbi
  • MAX power: 120W (CW)
Quantity:
INQUIRY

  • Description & Specification

Application:

  • 2.6GHz to 3.0GHz 6.5dbi Vehicle Omnidirectional Jammer antenna With Spring
  • Vehicle mounted
  • Jamming antenna

Feature:

  • Compact design, lightweight
  • Superior performance
  • Good appearance design
  • Compliant with MIL: 810G

Specification:

  • Frequency: 2.6 to 3.0GHz
  • Gain: 6.5dbi
  • MAX power: 120W (CW)
  • -3db vertical polarization: 28deg
  • -3db horizontal polarization: 360deg
  • Antenna size: 140xL681mm
  • Antenna weight: 3.6kg
  • Temperature: -40 to +120 degrees
  • Humidity: 95%
  • Waterproof: IP65
  • Compliant with MIL: 810G
  • Vibration test: 5.0G
  • Salt spray test: 96HR
  • Color: black and green
  • VSWR:>2.5
